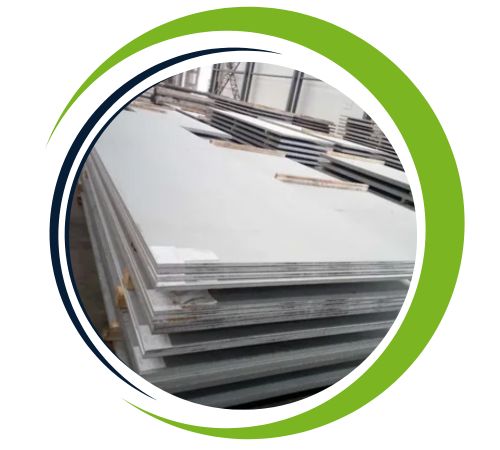

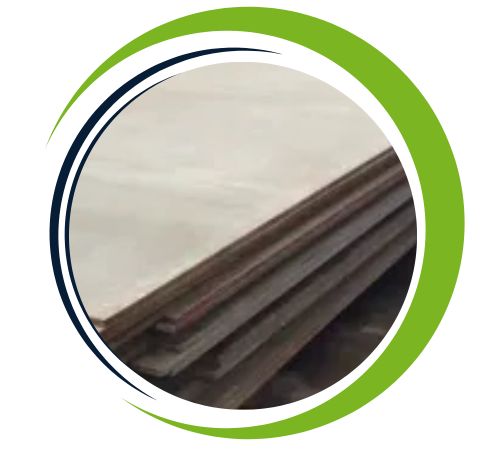

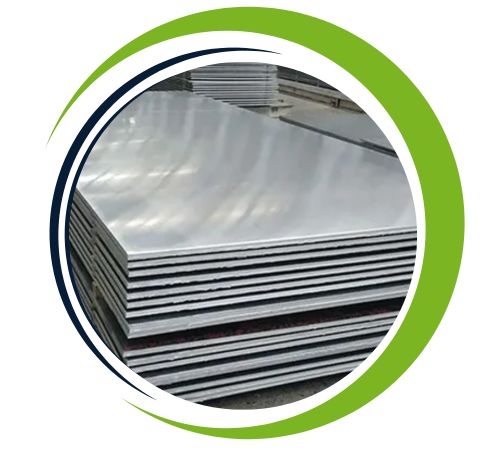

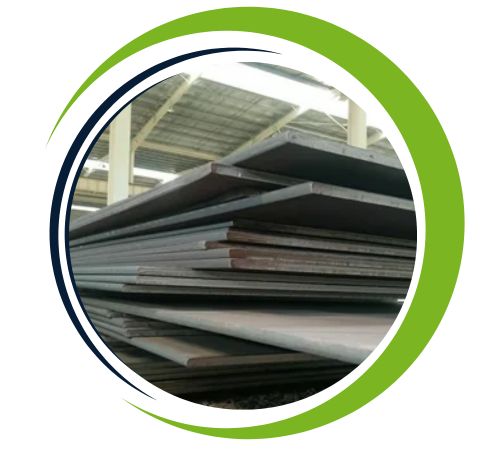

Based in Delhi, India, Kunj Sheets and Plates is a well-known producer and supplier of Alloy 20 Sheets and Plates, providing high-quality corrosion-resistant alloys for use in industrial and chemical settings. We offer Alloy 20 sheets and plates with exceptional resistance to sulfuric acid, stress corrosion, and pitting, and we are renowned for producing goods that satisfy international standards. Ensuring quality, durability, and prompt delivery, our products come in a range of sizes, thicknesses, and finishes to meet the various demands of sectors like food processing, pharmaceuticals, chemical processing, and the maritime industry.
Approximately 32–38% nickel, 19–21% chromium, 2–3% molybdenum, 3–4% copper, and trace amounts of niobium for stabilisation make up Alloy 20, an austenitic alloy based on nickel, iron, and chromium. With a tensile strength of about 620 MPa, yield strength of 300 MPa, and elongation of 30–40%, it provides exceptional corrosion resistance, especially against sulphuric acid. Alloy 20 is perfect for highly corrosive chemical environments because it resists intergranular corrosion, has good weldability and formability, and maintains good mechanical properties at room temperature and elevated temperatures.

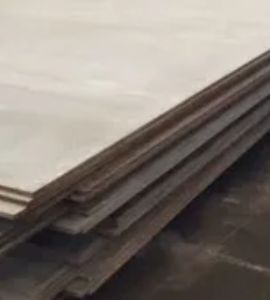

Specifications : ASTM B463 / ASME SB463
Width : 1000mm, 1219mm, 1500mm, 1800mm, 200mm, 2500mm, 3000mm, 3500mm, etc
Length : 200mm, 2440mm, 3000mm, 5800mm, 200mm, etc
Thickness : 0.3 mm to 120 mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

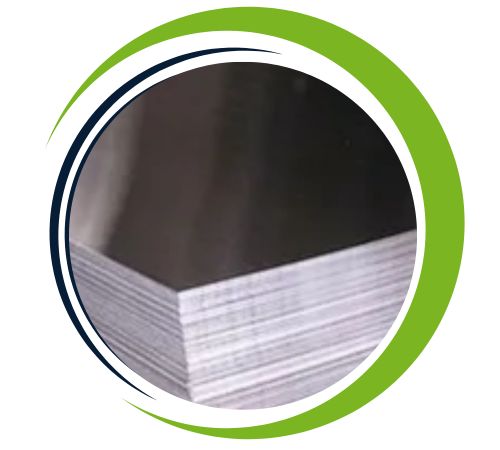

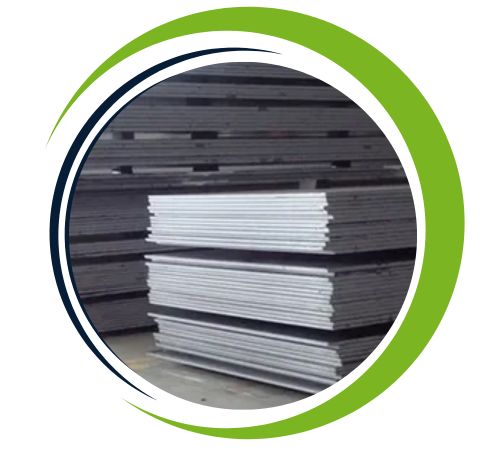

Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)

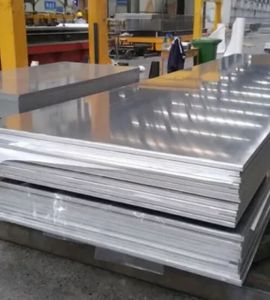

Form : Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
| STANDARD | WERKSTOFF NR. | UNS | EN | AFNOR |
| Alloy 20 | 2.4660 | N08020 | NiCr20CuMo | Z2NCUD31-20AZ |
| Grade | C | Mn | Si | S | Cu | Ni | Cr | Fe | Mo | P |
| Alloy 20 | 0.07 max | 2.00 max | 1.00 max | 0.035 max | 3.00 – 4.00 | 32.00 – 38.00 | 19.00 – 21.00 | 29.85 min* | 2.00 – 3.00 | 0.045 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 20 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi – 35,000, MPa – 241 | 30 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

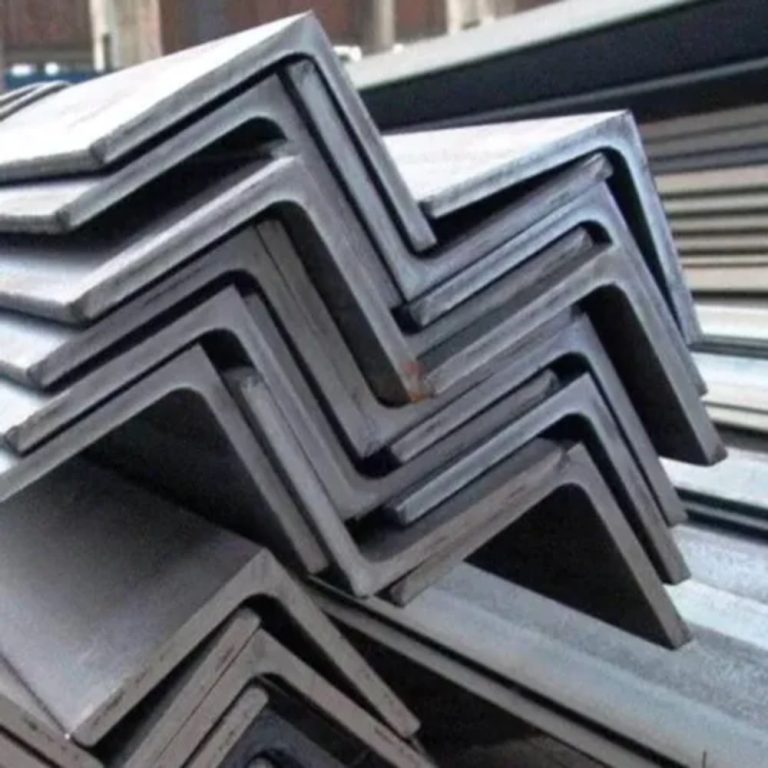

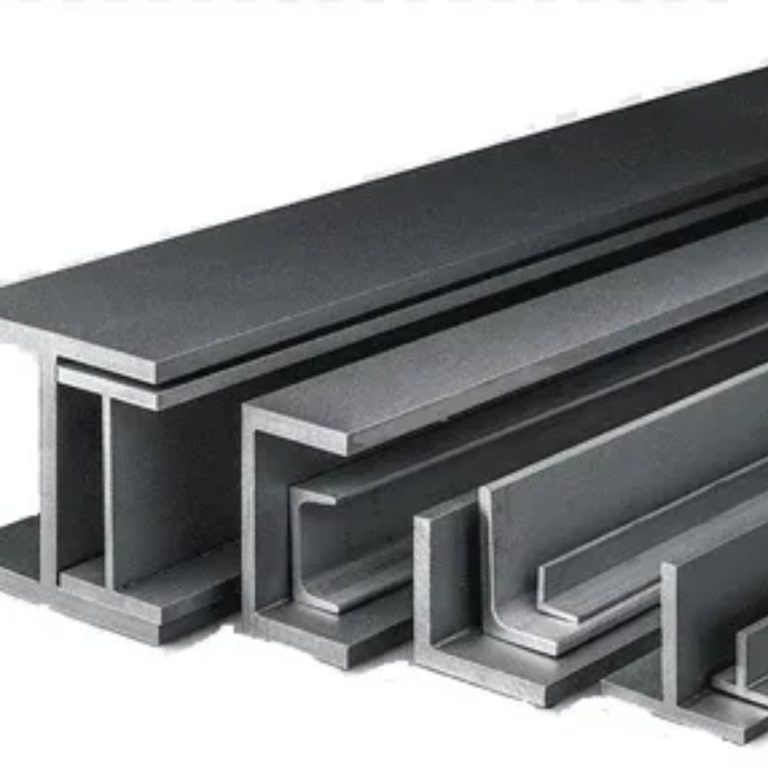

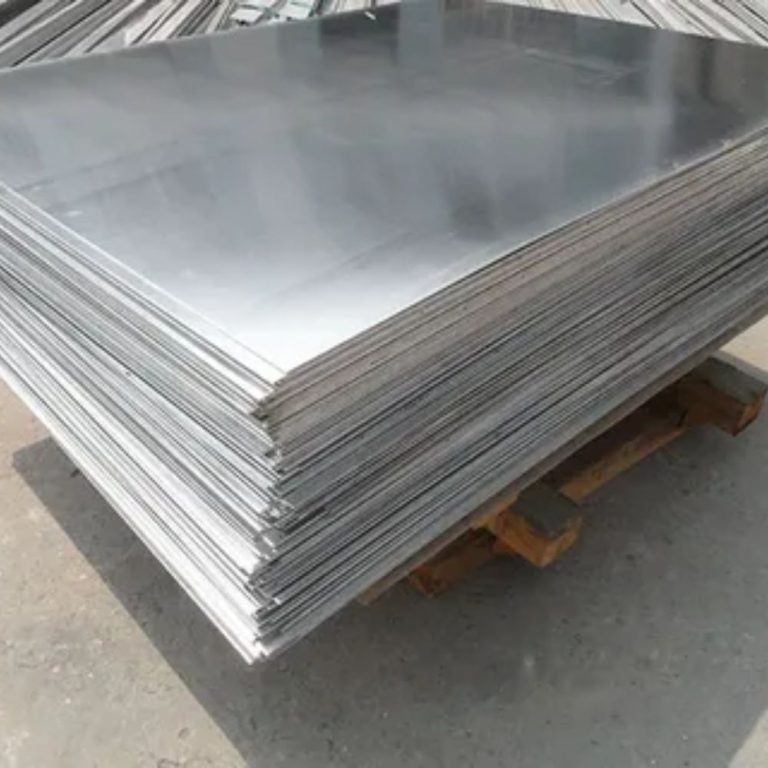

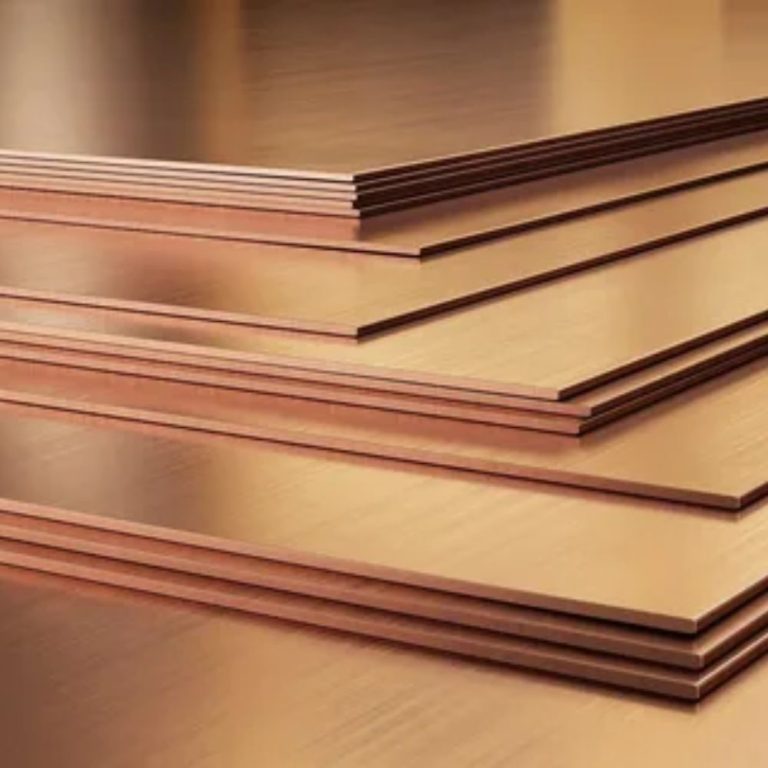

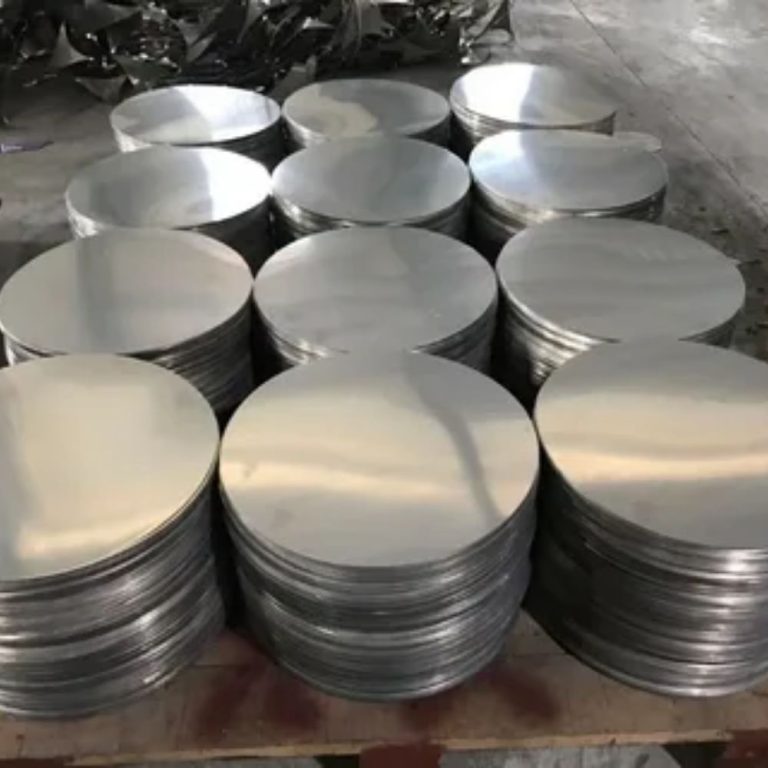

Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Yes, we offer custom sizes for Alloy 20 Sheets and Plates to meet specific project needs. Our team at Kunj Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
In industries where superior corrosion resistance is essential, alloy 20 sheets and plates are widely used. They are utilised in heat exchangers, piping, and storage tanks that handle sulfuric acid and other harsh chemicals in the chemical processing industry. Alloy 20 is used in machinery and equipment used in the food processing and pharmaceutical industries to guarantee hygienic and corrosion-free conditions. It is used in pumps and seawater components in the marine industry. In petrochemical facilities and power generation, where resistance to acid attacks, stress corrosion, and pitting is crucial, alloy 20 is also used.
