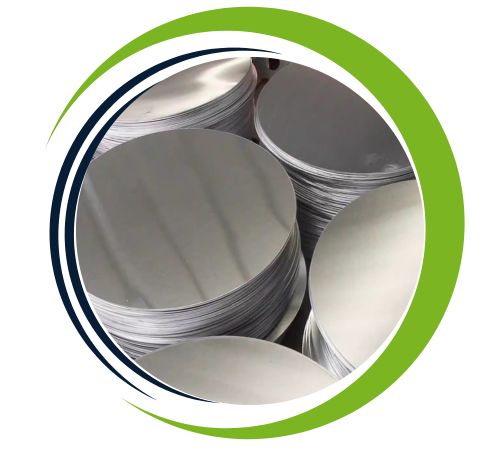

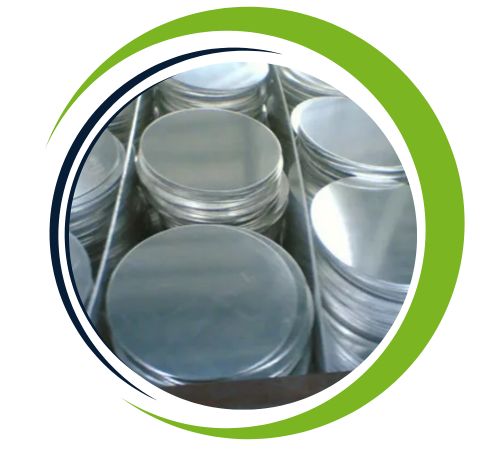

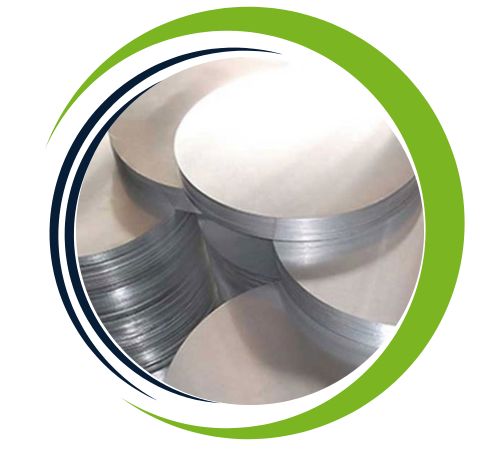

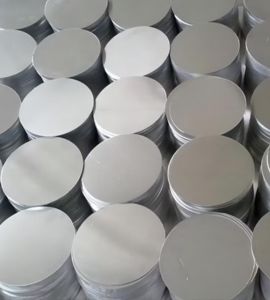

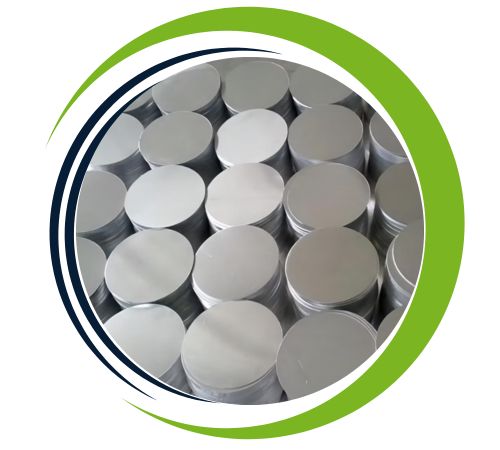

Based in Chennai, India, Kunj Sheets and Plates is a well-known producer and supplier of Aluminium 2017 Circles, providing industrially specific high-strength aluminium alloy solutions. Aluminium 2017 is mostly utilised in structural, automotive, and aerospace applications due to its exceptional machinability and mechanical qualities. Every circle is produced at Kunj under stringent quality controls, guaranteeing uniformity in tolerance, thickness, and surface finish. The business offers dependable delivery and tailored solutions to meet the needs of a wide range of industries. Their 2017 Aluminium Circles are highly regarded for their accuracy, longevity, and suitability for difficult machining and fabrication jobs.
The main constituents of Aluminium 2017 Circles are iron (≤0.7%), copper (3.5–4.5%), and aluminium (91.5–95.5%), with lesser proportions of magnesium, manganese, and zinc. This alloy has good fatigue resistance and high tensile strength (390–490 MPa) and yield strength (about 250 MPa). Excellent machinability, weldability, and moderate formability make up for its slight decrease in corrosion resistance compared to other aluminium grades. In order to maximise performance, the material is frequently heat-treated, particularly in structural components and applications where machining accuracy and strength are essential.
Standards : ASTM B209 / ASME SB209
Temper : O, T3,T4, T6, T651
Thickness : 1 Mm To 100 mm
Diameter : Upto 2000 mm
Circle Diameter : 3″ DIA up to 38″ DIA 1500 lbs max

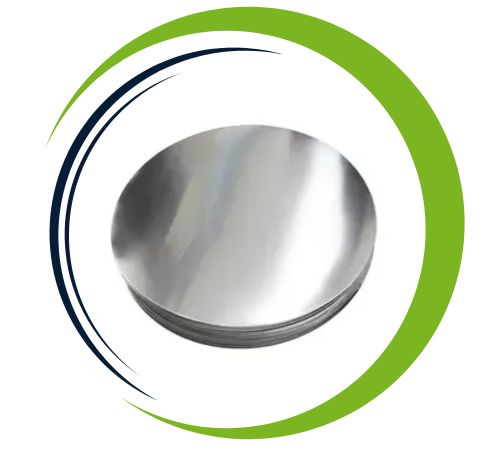

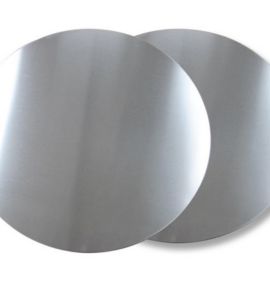

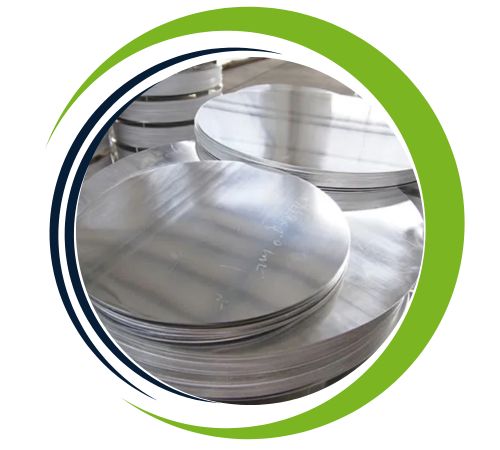

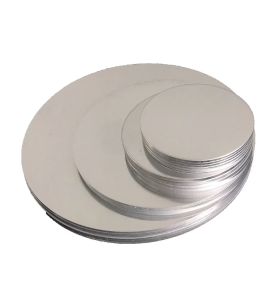

Circles Form : Hot Rolled Circles, Cold Rolled Circle, Proof Machined Circles
Finish :Mill, Customer specific finish
Aluminum Circle Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
| Material | Tensile Strength (N/mm²) min | Yield Strength | Elongation in 4D % | ||
| ksi | Mpa | ksi | Mpa | ||
| Al 2017 | 55 | 379 | 32 | 221 | 12 |
| Al | Si | Mg | Cr | Zn | Fe | Cu | Mn | Ti | Other Each | Other Total |
| Bal. | 0.20-0.8 | 0.40-0.8 | 0.10 max | 0.25 max | 0.7 max | 3.5-4.5 | 0.40-1.0 | 0.15 max | 0.05 max | 0.15 max |
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlCu4MgSi | AU4G | 3.1325 | A92017 | AlCu4SiMg | 2017 | AlCuMg1 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Aluminium 2017 Circles are known for their excellent strength-to-weight ratio, making them ideal for aerospace, automotive and construction applications. They provide superior mechanical strength and corrosion resistance, providing durability in harsh environments. Because of their excellent wear resistance, they are suitable for high pressure and energy applications. These screws have improved hardness and tensile strength compared to other aluminum alloys, ensuring reliability in harsh conditions The flexibility of the material allows for a variety of configurations possible options, enabling versatility in industries such as architecture, engineering and construction.
Yes, we offer custom sizes for Aluminium 2017 Circles to meet specific project needs. Our team at Kunj Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@kunjsheetsplates.com.
Because of their strength-to-weight ratio, aluminium 2017 Circles are frequently used for structural parts and components in the aerospace industry. They are used in the automotive industry to make wheels, suspension parts, and gear components. Additionally, the alloy is appropriate for transportation equipment, rivets, and machined aircraft fittings where a high load-bearing capacity is needed. Aluminium 2017 Circles are also utilised in engineering applications, pressure vessels, and industrial machinery where strong mechanical performance and ease of machining are required. They are also perfect for precision tooling, defence parts, and architectural fittings because of their versatility.
