Copper (0.20–0.60%), chromium (0.40–0.65%), nickel (up to 0.50%), and phosphorus (0.04–0.10%) are added to ASTM A242 Corten Steel, a high-strength, low-alloy steel, to improve its resistance to atmospheric corrosion. Manganese (0.75–1.35%) and silicon (0.25–0.75%) make up the maximum carbon content of 0.15%. It has a tensile strength between 480 and 620 MPa and a minimum yield strength of 345 MPa. The steel is perfect for exposed environments because it develops a stable rust-like patina on the surface that prevents additional corrosion.

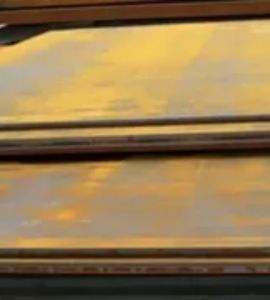

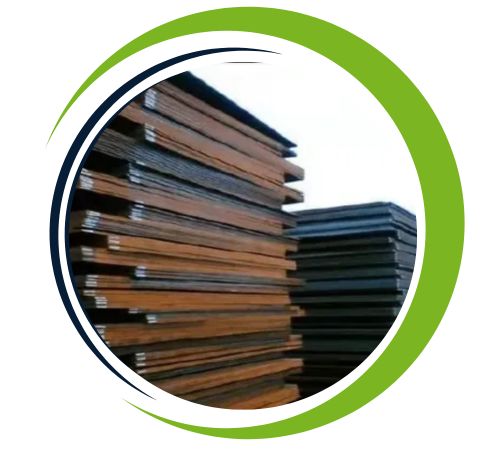

Grade : ASTM A242 Type 1 Corten Steel Plates
Standard : ASTM A242 / ASME SA242
Width : 750mm to 1500mm,
Length : 2500mm to 12000mm
Thickness : 0.8MM to 50mm

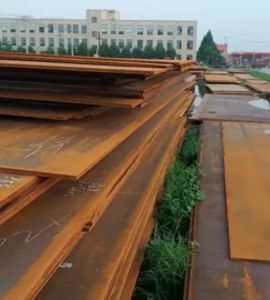

Type : Corten Steel / High-Strength Low-alloy Structural Steel

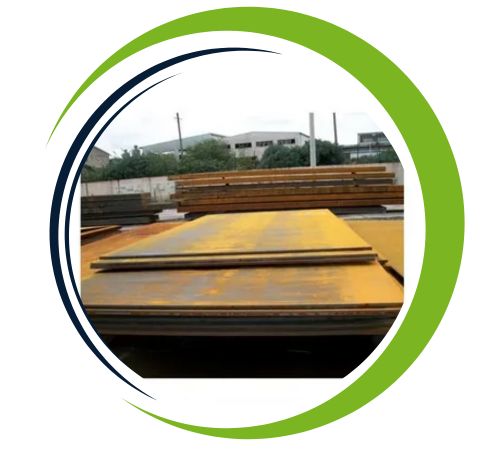

Process : Hot-Rolled (HR)
| Grade ASTM A242 TYPE 1 | C | Mn | Cr | Si | CEV | S | Cu | P |
| Max 0.12 | Max 1 | 0.3-1.25 | Max 0.75 | Max 0.52 | Max 0.03 | 0.25-0.55 | 0.06 – 0.15 |
Grade | Min. Yield Strength Mpa | Tensile Strength MPa | Impact | ||||||||
| A242 Type1 | Nominal Thickness (mm) | Nominal Thickness (mm) | degree | J | |||||||
| Thick mm | ≤16 | >16 ≤40 | >40 ≤63 | >63 ≤80 | >80 ≤100 | >100 ≤150 | ≤3 | >3 ≤100 | >100 ≤150 | -20 | 27 |
| A242 Type1 | 355 | 345 | …. | …. | …. | …. | 510-680 | 470-630 | …. | ||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
ASTM A242 Corten Steel Sheet and Plate offers several advantages, including exceptional resistance to corrosion and weathering, making it ideal for outdoor and architectural applications. Its self-healing patina forms over time, protecting the steel from further degradation. This steel also provides high strength, durability, and a distinctive rustic appearance, enhancing the aesthetic value of structures. Additionally, it requires minimal maintenance due to its ability to withstand harsh environmental conditions. Corten steel is also cost-effective in the long run, as it reduces the need for frequent coating or replacement.
Yes, we offer custom sizes for ASTM A242 Corten Steel Sheet and Plate to meet specific project needs. Our team at Kunj Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@kunjsheetsplates.com.
Applications requiring high strength and resistance to atmospheric corrosion frequently use ASTM A242 Corten Steel Sheets and Plates. Bridges, guardrails, railway cars, shipping containers, architectural facades and outdoor sculptures are among the common applications. Because of their self-protecting rust layer, which removes the need for painting, they provide a low-cost, maintenance-free alternative in infrastructure and civil construction. Additionally, Corten steel is a popular material for urban furniture, roofing, and landscaping due to its weather-resistant qualities and visual appeal. Because of its strength and adaptability, the steel can be used in both decorative outdoor and industrial settings with remarkable results.
