Copper Sheet and Plate

In Chennai, India, Kunj Sheets and Plates is a reputable producer and supplier of high-quality copper sheets and plates. Our speciality is providing premium copper products, which are renowned for their exceptional malleability, conductivity, and resistance to corrosion. Our copper sheets and plates, which serve a variety of industries, are made with cutting-edge methods to guarantee dimensional accuracy and reliable performance. To satisfy the wide range of customer demands in industrial, architectural, and electrical applications, Kunj Sheets and Plates provides a variety of thicknesses, widths, and finishes. We are India’s go-to source for copper solutions because of our dedication to excellence and client satisfaction.

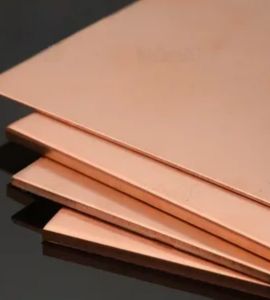

Copper 2B Plate

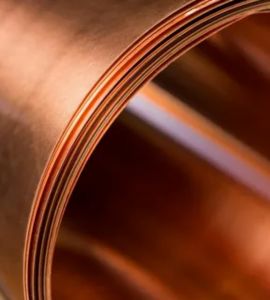

Copper Rolling Sheets

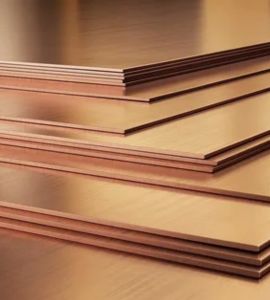

Copper Flat Sheet

Copper 2B Sheet Manufacturer in Chennai, Decorative 8K Mirror Copper Sheet Chennai, Hairline Copper Sheet Supplier in Chennai, Copper Plate Exporter in India, Copper Sheet Price List in Chennai, Copper Clad Plate Distributor in Chennai, Copper Rolling Sheets Supplier in Chennai, Copper Shim Sheets Distributor in India, Copper Flat Sheet Sizes in mm

Electrolytic Tough Pitch (ETP) copper, which is 99.9% pure copper, is commonly used to make copper sheets and plates. They have high corrosion resistance, low volatility, and outstanding electrical and thermal conductivity. Copper’s mechanical properties include a tensile strength of 210–250 MPa, a yield strength of 33–150 MPa (depending on temper), and an elongation range of 30–45%. In addition to having good fatigue strength and formability, these sheets are non-magnetic. They are perfect for precision forming, stamping, and high-performance applications because their mechanical properties can be changed by annealing or cold-working.

Copper Sheet and Plate Specification

ASTM Specification	ASTM B152 UNS C12200, ASME SB152, MSRR, AMS, BS
Specification	MSRR, AMS, BS, ASTM B152 / ASME SB152
ASTM Standard Designations for C10200 OFHC Copper plate and sheet	ASTM B152 C10100 meets ASTM F68 specification.
Length & Sizes	1000 mm x 2000 mm, 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2m, 2.44m, 3m, 36″ X 120″ or 48″ X 144″, Cut to size available
Thickness	0.1mm to 100 mm Thk
Sheet Width	36” widths – .032”, .0625”, .125”
Plate Width	10-2500mm
AMS	AMS
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Temper	Annealed, 1/4-Hard, 1/2-Hard, 3/4-Hard, Full Hard, Hard as Rolled, Spring
Condition	Polished on both sides
Finish	Bare/Standard, Hot Tin Dipped, Tin Plated, Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Stock in form of	C101 Copper Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate
Gauges	.0005″ to .010″ .0005″, .0007″, .001″, .0014″, .002″, .003″, .004″, .005″, .006″, .008″, .010″
Proof Stress	50 to 340 MPa
Tensile Strength	200 to 360 MPa
Hardness	40 to 110 HV
Elongation	50-5 %
Density	8.92 g/cm³
Melting Point	1083 °C
Thermal Expansion	16.9 x10^-6 /K
Modulus of Elasticity	117 GPa
Thermal Conductivity	391.1 W/m.K
Electrical Resistivity	0.0203 x10^-6 Ω .m
Machinability	Average
Workability – Cold	Excellent
Weldability – Gas	Good
Weldability – Arc	Not recommended
Weldability – Resistance	Not recommended
Brazeability	Excellent
Copper profiling	To provide a full profiling service we use numerous profiling methods including: Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting

Copper Rolling Plate Distributor in India, Copper Flat Shim Sheet Supplier in Chennai, Copper Perforated Sheet Weight Chart, Copper Polished Plate Exporter in India, Copper Nickel Sheets Manufacturer in Chennai, Copper Shim Sheet and Plate Price List in Chennai, Copper Cold Rolled Sheet Sizes in mm, Copper Hot Rolled Plate Distributor in Chennai, Copper Sheets and Plates India

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Copper Sheet and Plate Manufacturer and Exporter in Chennai, India

Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Copper Sheet & Plate Weight and Size Chart

THICKNESS	4’X 2′	2M X 1M	2500MM X 12500MM
Size	Weight per sheet in Kg
0.35	2.37
0.4	2.68	7.14
0.45	2.99	8.04
0.5	3.3	8.93
0.55	3.61	9.8
0.6	3.92	10.72
0.7	4.64	12.5
0.8	5.3	14.29
0.9	6.0	16.07
1.0	6.6	17.86
1.2	7.9	21.43	34
1.4	9.3
1.6	10.6	28.56	45
2.0	13.3	35.72	56
2.5	16.5	44.65	70
3.0	19.9	53.58	84
3.25	21.6	58.05	91
4.0	26.5	71.44	112
4.76	32.3	85.0	133
5.0	33.1	89.3	140
6.0	39.8	107.16	168
6.35	42.2	113.4	177
8.0	54		224
9.525	64		266
10.0			279
12.0		215	335
12.7		227
15.8		283
16.0		268
19.0		340
20.0		358
22.0		393
25.0		447
30.0		536
40.0		715
45.0		804
50.0		893
75.0		1340
100.0		1787
150.0		2680

Copper Quarto Plate Dealer in Chennai, Copper Perforated Plate Supplier in Chennai, Copper Sheet and Plates in Chennai, Copper Plates Size Chart, Copper Sheets Price in India, Oxygen-free copper Plate Supplier in Chennai, Arsenical Copper Sheet Stockist in India, Copper Quarto Plate Exporter in India, Copper Rolling Sheets Stockist in Chennai, Copper Flat Sheet Supplier in India

Copper sheets and plates offer many advantages including excellent electrical and thermal conductivity, making them ideal for electrical and heat transfer applications They are highly corrosion resistant, ensuring durability last longer in harsh environments, and have excellent formability, making them easier to assemble and manufacture. Copper’s ductility allows for stronger materials, while its non-magnetic properties enhance the efficiency of electrical systems. The material also exhibits high fatigue resistance, providing long-lasting performance. In addition, lead is recyclable, making it environmentally friendly. These properties make copper sheets and plates valuable in industries such as electronics, manufacturing and construction.

Types of Copper Sheet and Plate

Copper Flat Shim Sheets Price in India, Copper Hot Rolled Plates Weight Chart, Copper Sheet and Plates Supplier in Chennai, Stockist of Copper Cold Rolled Sheets in India, Copper Perforated Sheet Supplier in India, Copper Sheet Price List in Chennai, Copper Clad Plate Supplier in India, Copper Rolling Plate Exporter in Chennai, Copper Polished Plate Exporter in India, Copper Quarto Plate Exporter in Chennai, Copper Sheet and Plate in India

Are Custom Sizes Available for Copper Sheet and Plate?

Yes, we offer custom sizes for Copper Sheet and Plate to meet specific project needs. Our team at Kunj Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@kunjsheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Copper Sheet and Plate

Because of their exceptional conductivity, copper sheets and plates are used extensively in thermal and electrical applications. They are used in wiring, transformer components, switchgear, and bus bars in the electrical industry. Because of their visual appeal and resilience to weather, they are also utilised in architectural accents, roofing, and cladding. Copper plates are utilised in cryogenic applications, evaporators, and heat exchangers in the industrial sector. They are appropriate for surfaces used in food processing and medical equipment due to their antimicrobial qualities. Copper sheets are also widely used for custom engraving, embossing, and design work in the decorative arts, crafts, and crafts industries.
