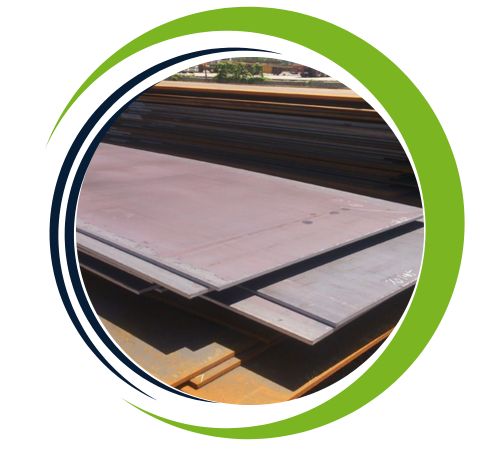

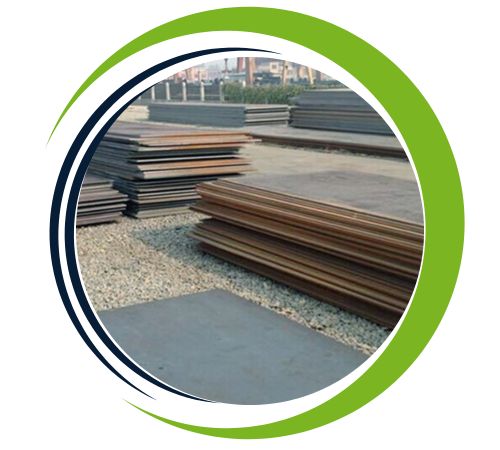

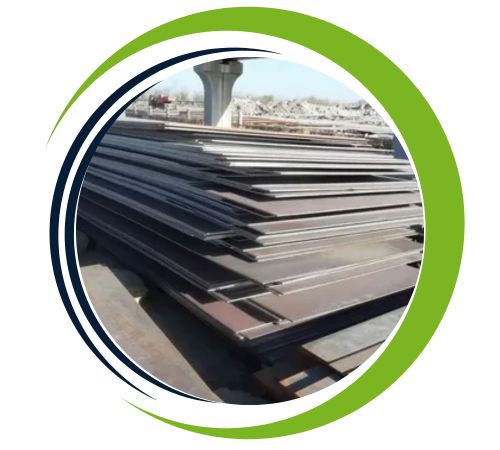

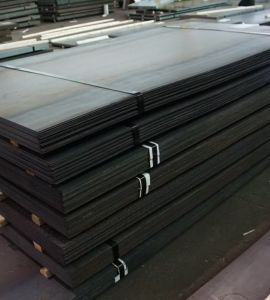

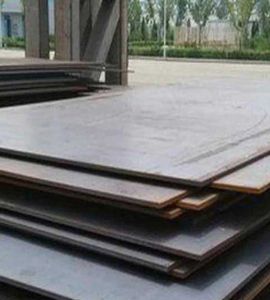

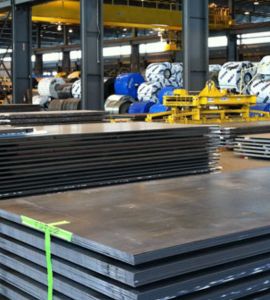

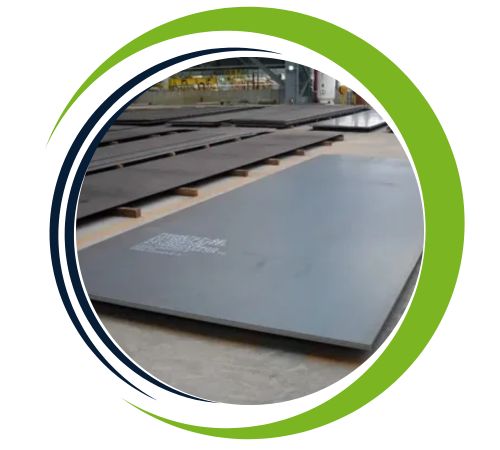

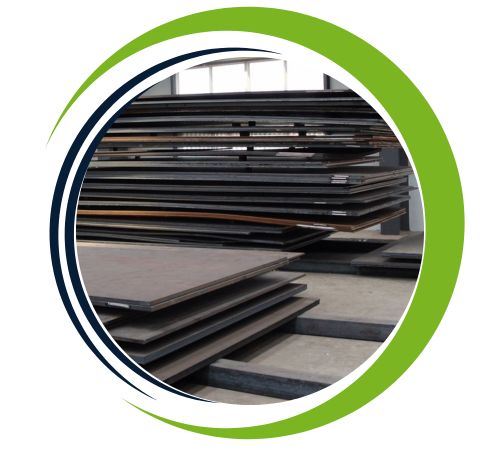

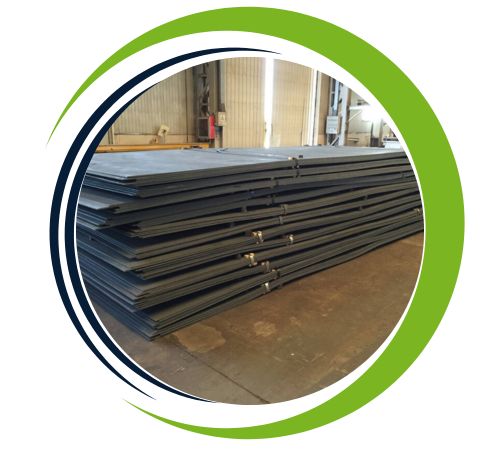

One of Delhi, India’s top producers and suppliers of EN 19 sheets and plates is Kunj Sheets and Plates. Our goal is to provide high-performance alloy steel plates that satisfy international requirements for durability, strength, and adaptability. The chromium-molybdenum steel grade EN 19 is renowned for its exceptional wear resistance and high tensile strength. Kunj provides EN 19 plates that meet the requirements of the automotive, power generation, construction, and general engineering sectors thanks to sophisticated manufacturing processes and stringent quality control. Our goal is to provide reliable materials that meet precise engineering requirements.
High-tensile chromium-molybdenum steel is used to make EN 19 sheets and plates. 0.35–0.45% carbon, 0.50–0.80% manganese, 0.90–1.50% chromium, and 0.20–0.40% molybdenum make up the typical composition. It has a yield strength of 650 MPa and a tensile strength of 850–1000 MPa. EN 19 is renowned for its superior wear resistance, fatigue strength, and ductility. Heat treatment can improve the material’s mechanical performance in high-stress applications. It is a popular option for heavy-duty components because it achieves a good balance between strength and machinability.
| Thickness | from 3mm up to as thick as 150mm |
|---|---|
| Size | from 2000 x 1000mm up to 4000 x 2000mm |
| Length | 3000mm-18000mm |
| Supply Condition | As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement. |
| Impact tested | -52° C |
| Process of Manufacturing | Hot-Rolled (HR) |
| Grade | Mn | Si | C | Cr | P | Ni | S | Mo |
| EN – 19 | .50 – .80 | .10 – .35 | .35 – .45 | .90 – 1.40 | .040 | – | .040 | .20 – .40 |
| Max Stress | 850-1000 n/mm2 | |
| Impact KCV | 55 Joules Min | |
| Hardness | 248-302 HB | |
| Yield Stress | 700 N/mm2 Min | |
| 0.2% Proof Stress | 680 N/mm2 Min | subject to ruling section |
| Elongation | 9% Min |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
EN19 sheets and plates have high tensile strength (850-1000 MPa), excellent durability, and resistance to fatigue and fatigue These properties make them ideal for demanding applications in the automotive, aerospace and space engineering industries. EN 19 also exhibits excellent machinability, facilitating the handling of complex parts. Its greater strength and its ability to withstand high pressures and impact loads further enhance its versatility. In addition, it can be heat treated to achieve advanced mechanical properties, making it suitable for a wide range of industrial applications.
Yes, we offer custom sizes for EN19 Sheet and Plates to meet specific project needs. Our team at Kunj Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
High-stress machine components like gears, bolts, spindles, and shafts are best made with EN 19 sheets and plates. Because EN 19 can tolerate repeated stress, it is frequently used for crankshafts, axles, and connecting rods in the automotive industry. Agricultural machinery, industrial tools, and construction equipment also make extensive use of it. Parts subjected to high impact or torsional stress can benefit from EN 19’s toughness and hardness. Furthermore, complex fabrication in heavy-duty mechanical assemblies, hydraulic systems, and forging applications is made possible by its weldability and machinability.
