Kunj Metal Industries, based in Delhi, India, provides premium Hastelloy C22 Sheets and Plates that are designed to withstand the harshest chemical and corrosive conditions. The adaptable nickel-chromium-molybdenum-tungsten alloy Hastelloy C22 is renowned for its exceptional resistance to a variety of acids and oxidising agents. For use in chemical processing, pharmaceuticals, pollution control, and marine applications, our sheets and plates are expertly finished. For crucial applications in harsh operating conditions, we at Kunj make sure that every Hastelloy C22 product offers the best possible strength, dependability, and corrosion protection.
About 56% Ni, 20–22.5% Cr, 12.5–14.5% Mo, and 2.5–3.5% W make up Hastelloy C22. Fe, Co, and trace elements are also included to improve corrosion resistance. The alloy has a yield strength of about 283 MPa and a tensile strength of about 690 MPa. It provides exceptional resistance to stress corrosion cracking, pitting, and crevice corrosion. This substance works very well in oxidising and reducing conditions, such as nitric acid, wet chlorine gas, and media containing chloride. Additionally, it provides excellent weldability and formability without the possibility of intergranular attack.

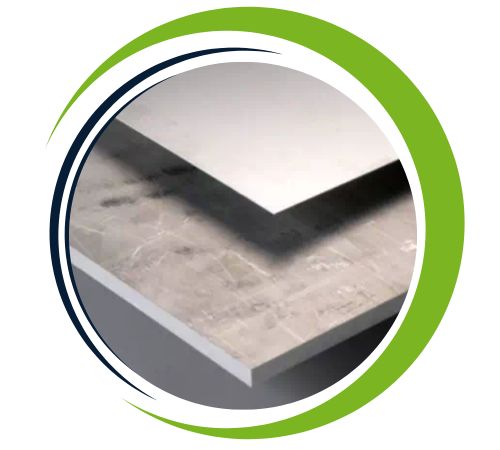

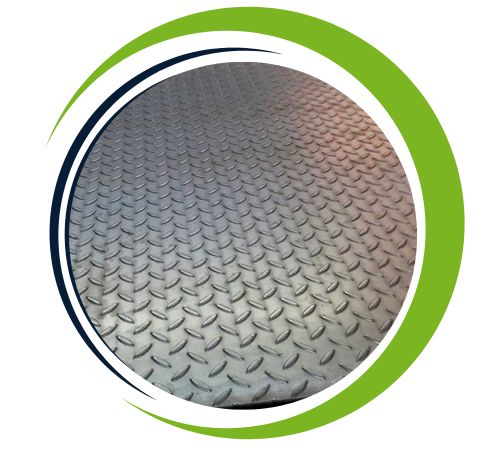

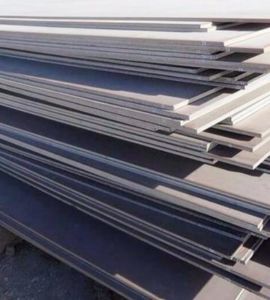

| Type | Plate, Sheet, Strip, Coils, Foils, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate |
|---|---|
| Grade | ASME SB575, ASTM B575 UNS N06022, AMS, MSRR, BS |
| ASTM B575 Alloy C22 Plate Length | 0-12mm or as required |
| Specification of Plate | ASTM B575 UNS N06022, ASME SB575, MSRR, BS, AMS 4544 sheet |
| UNS N06022 Plate Width | 0-2500mm or as required |
| Plate Thickness | 0.3 to 1200 mm or as required |

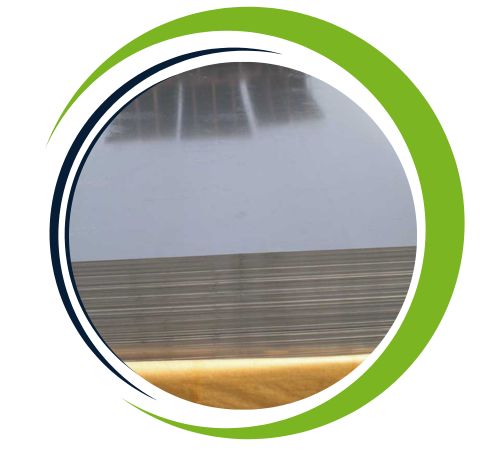

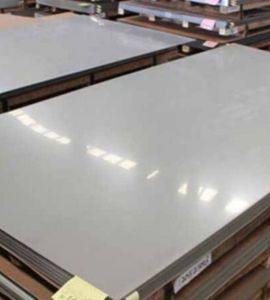

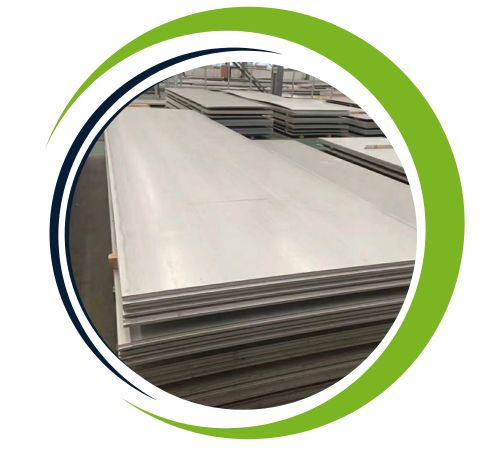

| Alloy C22Plate Process | Hot/ Cold Rolled |
| Plate surface | No.1, No. 2D, No. 2B, BA, No.3, No.4, No.6, No.7, 2B, 2D, BA NO(8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled ASTM B575 Alloy C22 Plate, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
| Hastelloy C22 | 2.4602 | N06022 | NW 6022 | – | NiCr21Mo14W | – |
|
Stocked Sizes |
|
|---|---|
|
Size (in inches) |
Size (in mm) |
|
.125″ |
3.18mm |
|
.134″ |
3.40mm |
|
.156″ |
3.96mm |
|
.187″ |
4.75mm |
|
.250″ |
6.35mm |
|
.312″ |
7.92mm |
|
.375″ |
9.53mm |
|
.500″ |
12.7mm |
|
.600″ |
15.9mm |
|
.750″ |
19.1mm |
|
.875″ |
22.2mm |
|
1″ |
25.4mm |
|
1.125″ |
28.6mm |
|
1.250″ |
31.8mm |
|
1.500″ |
38.1mm |
|
1.750″ |
44.5mm |
|
2″ |
50.8mm |
|
2.500″ |
63.5mm |
|
3″ |
76.2mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hastelloy C22 sheets and plates offer outstanding advantages, making them ideal for use in harsh environments. They provide excellent resistance to both oxidizing and reducing agents, ensuring protection against pitting, crevice corrosion, and stress corrosion cracking. Their versatility allows them to perform reliably in aggressive chemical processes, including acidic and chlorinated environments. With high mechanical strength and exceptional durability, they are suitable for high-temperature applications. Additionally, Hastelloy C22 sheets and plates exhibit excellent weldability, ease of fabrication, and long service life, reducing maintenance and enhancing efficiency in demanding industrial operations.
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Chemical reactors, food processing, pharmaceutical manufacturing, and other industries handling harsh chemicals make extensive use of Hastelloy C22 Sheets and Plates. They are perfect for storage tanks, scrubbers, and pressure vessels that are subjected to chlorides, sulphuric acid, or nitric acid. Because of its resistance to oxidising and reducing agents, the alloy is also utilised in pollution control systems, flue gas scrubbers, and marine environments. It is used in equipment that is sensitive to contamination in the biotech and medical sectors. It is safe to use Hastelloy C22 in high-stress chemical processing equipment, piping systems, and heat exchangers.
