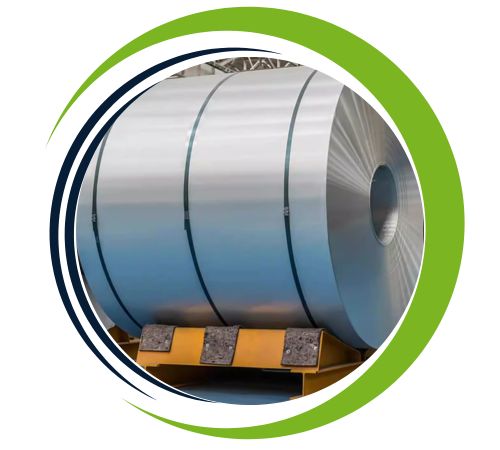

Kunj Sheets and Plates, which is situated in Delhi, India, is a reputable manufacturer and supplier of high-quality **Hastelloy C276 Coils**, catering to industries that require high resistance against corrosion and strength in harsh conditions. Reputed for quality control, accurate manufacturing, and compliance with international standards, Kunj offers Hastelloy C276 Coils that are perfect for use in chemical processing, marine, pollution control, and power plants. With an accent on customer satisfaction, timely delivery, and customized specifications, Kunj Sheets and Plates has become a go-to supplier of Hastelloy C276 products in domestic and global markets.
Hastelloy C276 Coil is a nickel-molybdenum-chromium alloy with a typical composition of nickel (≈57%), molybdenum (15–17%), chromium (14.5–16.5%), iron (4–7%), and traces of tungsten and cobalt. It possesses outstanding mechanical properties with tensile strength of approximately 790 MPa and yield strength of approximately 355 MPa. The alloy resists stress corrosion cracking, crevice corrosion, and pitting in oxidizing and reducing environments. Hastelloy C276 retains structural integrity in highly corrosive and elevated temperature conditions, providing excellent formability and weldability for intricate fabrication.
| Specification | ASTM B575 / ASME SB575 |
|---|---|
| Thickness | Plate 0125″ to 5.00″ / Sheets 008″ to .0125″ |
| Sheet / Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheet / Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Sheets Hardness | Half Hard, Quarter Hard, Soft, Hard, Spring Hard |
| Plate / Sheets Size | 15NB to 150NB In |
| Tempers | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Coils Thickness | 0.3 mm to 120 mm |
| Coils Length | AS PER CUSTOMER’S REQUIREMENT |
| Form | Sheets, Plates, Coils, Strips, Circle, Ring, Disc, Foils |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| Hastelloy C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
| Hastelloy C276 | 2.4819 | N10276 | NW 0276 | ХН65МВУ | NiMo16Cr15W | ЭП760 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
|
Coil/Coil Type |
Sizes |
Availability |
|---|---|---|

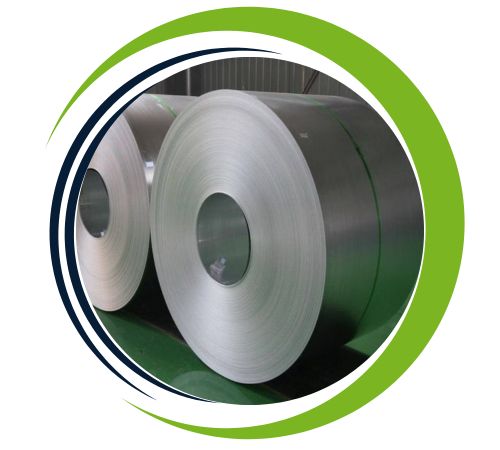

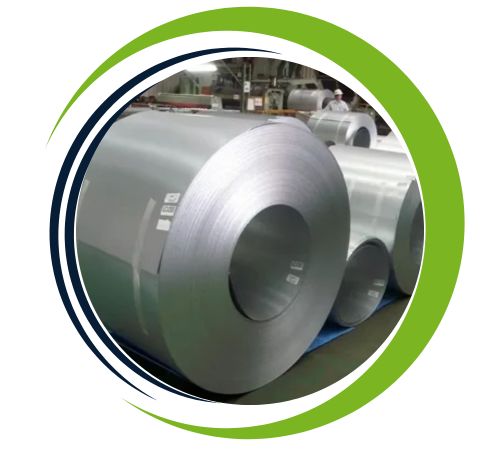

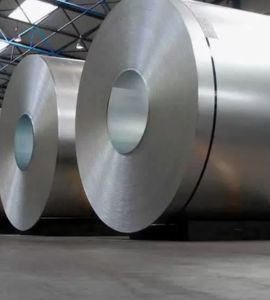

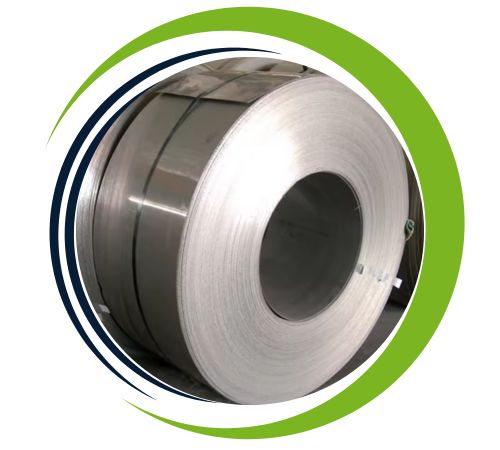

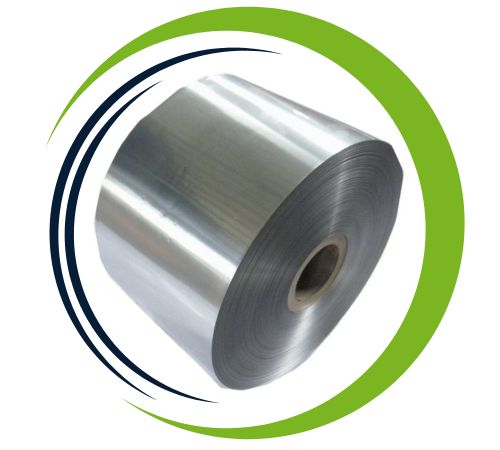

| ASTM B575 Hastelloy C276 Coil |
0.4mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
0.5mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
0.8mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
1mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
1.2mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
1.6mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
2mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
3mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
4mm |
√ |
| Hastelloy C276 ASTM B575 Coil |
5mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
6mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
8mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
10mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
12mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
16mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
20mm |
√ |
| ASTM B575 Hastelloy C276 Coil |
25mm |
√ |
| Steel Coil |
Size (mm) |
Weight per Coil (Kg) |
Size(mm) |
Weight per Coil (Kg) |
|---|---|---|---|---|
| Hastelloy C276 Coil |
4000 x 2000 x 2.0 |
136.0 |
3000 x 1500 x 5.0 |
191.0 |
| Hastelloy C276 Coil |
4000 x 2000 x 3.0 |
204.0 |
4000 x 2000 x 5.0 |
340.0 |
| Hastelloy C276 Coil |
2500 x 1250 x 4.0 |
106.0 |
2500 x 1250 x 6.0 |
159.0 |
| Hastelloy C276 Coil |
3000 x 1500 x 4.0 |
153.0 |
3000 x 1500 x 6.0 |
230.0 |
| Hastelloy C276 Coil |
4000 x 2000 x 4.0 |
272.0 |
4000 x 2000 x 6.0 |
408.0 |
| Hastelloy C276 Coil |
2500 x 1250 x 5.0 |
133.0 |

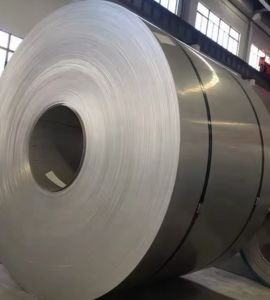

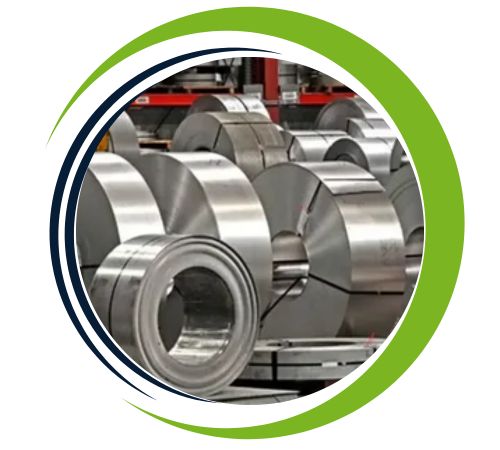

The Hastelloy C276 coil/slitting coil offers exceptional corrosion resistance, especially in aggressive environments such as sulfuric, hydrochloric, and acetic acids, and its nickel content in seawater provides resistance to pitting and stress corrosion cracking is increased. The alloy maintains strong mechanical properties over a wide range of temperatures, providing durability under extreme conditions. It also exhibits excellent weldability, making it versatile. Hastelloy C276 is ideal for applications such as pharmaceutical, aerospace and power generation, where reliability and longevity are important in harsh environments Its form as a coil or slitting coil ensures easy maintenance and customization.
Hastelloy C276 Coils find broad application in industries where resistance to aggressive chemicals is a requirement. These find application in chemical processing equipment, heat exchangers, pressure vessels, scrubbers, and flue gas desulfurization units. The coils also find use in marine environments, pulp and paper manufacturing units, and waste treatment facilities owing to their chloride and acid-proof properties. In power and pharmaceutical sectors, Hastelloy C276 Coils are utilized in piping, reactor linings, and storage tanks. Their mechanical strength and corrosion-resistance qualities render them best suited for severe applications where aggressive media and extreme conditions exist.
