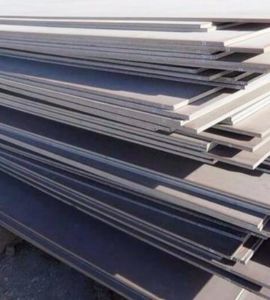

In Delhi, India, Kunj Sheets and Plates provides high-quality Hastelloy X Sheets and Plates, which are intended for high-temperature structural uses in the chemical, power generation, and aerospace sectors. A nickel, chromium, iron, and molybdenum alloy, Hastelloy X is renowned for its exceptional carburisation and oxidation resistance as well as its high temperature strength of up to 1200°C. It works especially well in gas turbines, furnace parts and aeroplane engines. Hastelloy X products that meet ASTM B435 standards are delivered by Kunj in a range of thicknesses and surface finishes. Your vital parts will function dependably under extreme mechanical and thermal strains thanks to our dedication to quality and performance.
Nickel (about 47%), chromium (21.5%), iron (18%), molybdenum (9%), and trace amounts of cobalt and tungsten make up Hastelloy X. Up to 1200°C, it offers remarkable oxidation resistance and high-temperature strength. Tensile strength up to 870 MPa, yield strength approximately 355 MPa, and good elongation (~30%) are examples of mechanical properties. The alloy has outstanding creep resistance and weldability under stress. It is perfect for high-stress aerospace and thermal processing applications because it also resists stress corrosion cracking and preserves structural integrity in extremely hot and pressurised environments.
Specifications :ASTM B435 / ASME SB435
Width : 1000mm / 1219mm /1250mm / 1500mm / 2000mm
Length : 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm.
Thickness : Ranging from 0.3mm to 20mm
Hardness : As per ASME A & NACE MR 175

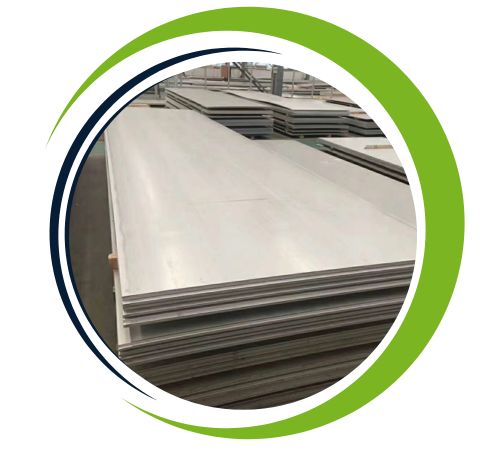

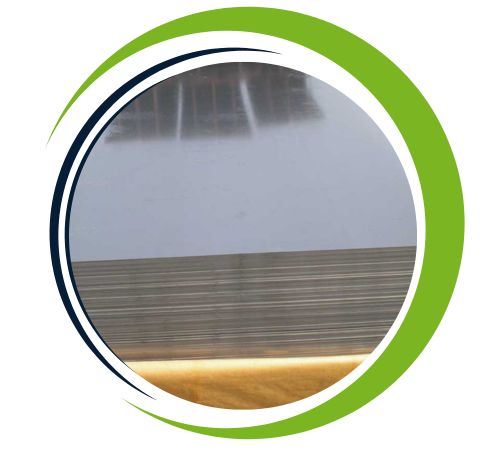

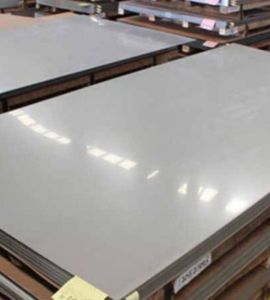

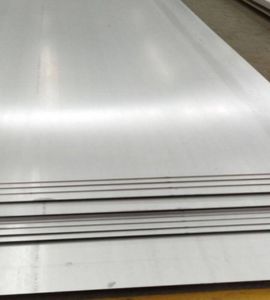

Finish : Hot rolled plate (HR), Cold rolled sheet (CR)
Form : Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Mn | Si | Al | Co | Ni | Cr | Fe | Mo | Ti |
| Hastelloy X | 0.05-0.15 | 1.0 max | 1.0 max | 0.50 max | 0.5-2.5 | Remainder | 20.5 – 23 | 17 – 20 | 8 – 10 | 0.15 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.22 g/cm3 | 1355°C (2470°F) | 95 KSI min (655 MPa min) | 35 KSI min (240 MPa min) | 35 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Hastelloy X | 2.4665 | N06002 |
| Dimension (mm) | KG P/M2 |
| 0.5 X 1000 X 2000 | 4.5 |
| 0.7 X 1219 X 3048 | 6.3 |
| 0.9 X 1219 X 3048 | 8.1 |
| 1.2 X 1219 X 3048 | 10.8 |
| 1.6 X 1200 X 3048 | 14.4 |
| 2.0 X 1219 X 3048 | 18.0 |
| 3 X 1200 X 3000 | 27.0 |
| 3.18 X VARIOUS ANN | 28.6 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hastelloy X sheets and plates offer significant advantages, particularly in high-temperature applications. Known for their excellent resistance to oxidation and corrosion, they perform exceptionally well in extreme environments, such as gas turbines, aerospace components, and high-temperature chemical processing. With outstanding strength and thermal-fatigue resistance they maintain their structural integrity under fluctuating temperatures. Additionally, Hastelloy X provides superior weldability and formability, making it easy to fabricate into complex shapes. Its durability and long service life in harsh conditions reduce maintenance costs making it a preferred material for critical industrial applications that demand reliability and performance.
| Thickness | Alloy | Plate Weight per Unit Area | Density |
| 3/16 inches | Hastelloy X | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | Hastelloy X | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | Hastelloy X | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | Hastelloy X | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | Hastelloy X | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | Hastelloy X | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | Hastelloy X | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | Hastelloy X | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | Hastelloy X | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | Hastelloy X | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | Hastelloy X | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | Hastelloy X | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | Hastelloy X | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | Hastelloy X | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | Hastelloy X | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | Hastelloy X | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Because of their resistance to oxidation at high temperatures, Hastelloy X Sheets and Plates are widely used in combustion chambers, afterburners, jet engine components, and tailpipes. They are utilised in chemical reactors, industrial furnaces, and heat-treating apparatus in the industrial sector. They are perfect for gas turbines and power plants because of their resistance to creep and rupture under high temperatures. Hastelloy X is also utilised in marine propulsion systems and nuclear reactors, where mechanical performance under extreme heat and stress is crucial. The alloy’s exceptional durability and weldability guarantee peak performance in demanding and safety-sensitive settings.
