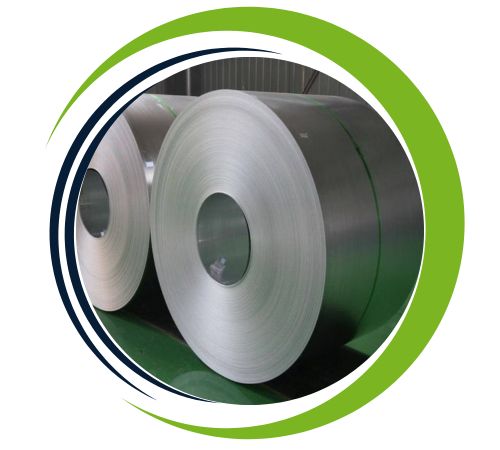

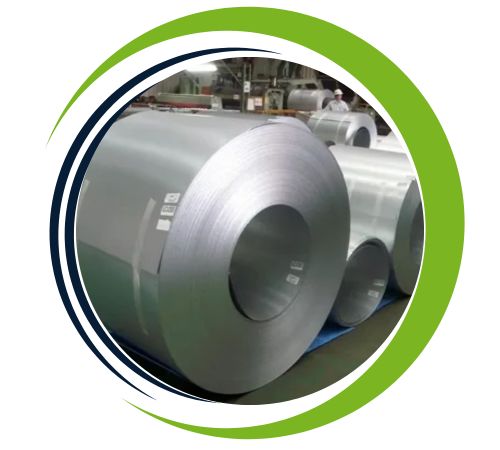

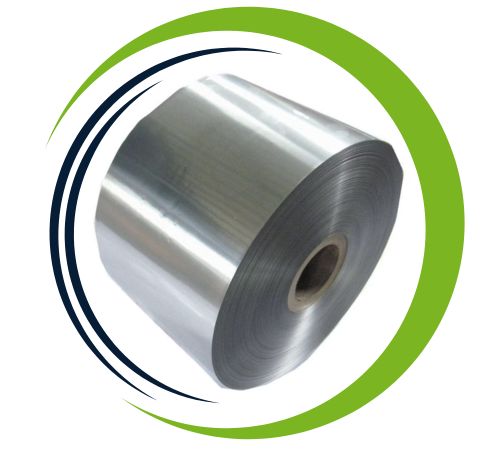

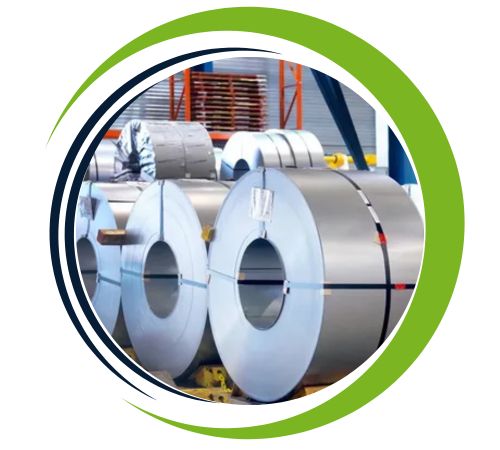

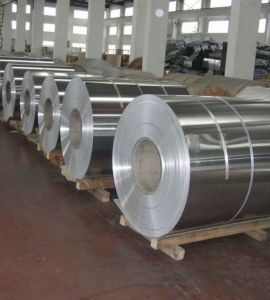

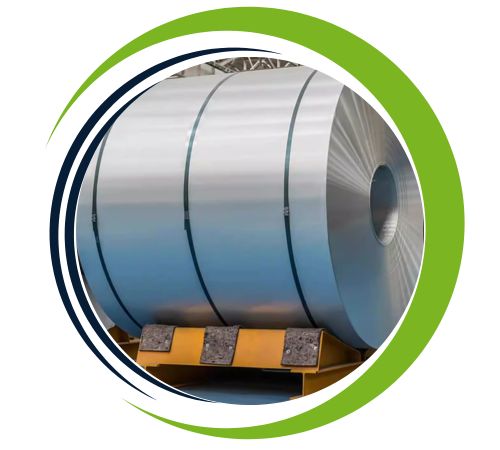

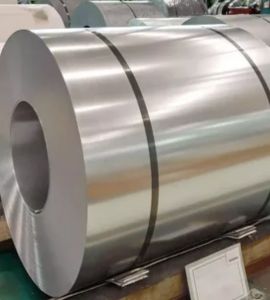

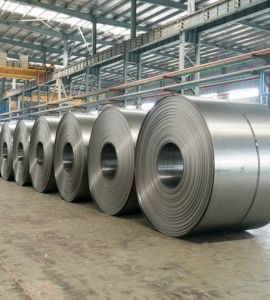

A top producer and supplier of Incoloy 800/800H/800HT Coil/Slitting Coil, Kunj Sheets and Plates is based in Chennai, India, and serves high-temperature and corrosion-resistant industrial needs. These high-quality alloy coils are expertly crafted and available in a range of sizes and finishes to suit the needs of individual customers. Kunj’s Incoloy 800 series coils are well-known for their exceptional strength, resistance to oxidation, and structural stability at high temperatures, making them perfect for use in power generation systems, heat exchangers, and petrochemical processing. Kunj Sheets and Plates is a reliable partner for high-performance alloy coil solutions, emphasising quality, dependability, and prompt delivery.
The main components of Incoloy 800/800H/800HT Coil/Slitting Coil are 30–35% nickel, 19–23% chromium, and the remaining iron, with titanium and aluminium added for balance. Higher creep resistance and regulated carbon levels are features of the 800H and 800HT versions. These alloys have outstanding resistance to oxidation and carburisation at high temperatures, as well as exceptional tensile strength (up to 600 MPa) and yield strength (about 275 MPa). They have good formability and weldability and maintain structural integrity in high-heat environments. Because of these mechanical characteristics, the 800 series can withstand long-term use in demanding industrial settings.
| Specification | ASTM B409 / ASME SB409 |
|---|---|
| Thickness | Plate 0125″ to 5.00″ / Sheets 008″ to .0125″ |
| Sheet / Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheet / Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Sheets Hardness | Half Hard, Quarter Hard, Soft, Hard, Spring Hard |
| Plate / Sheets Size | 15NB to 150NB In |
| Tempers | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Coils Thickness | 0.3 mm to 120 mm |
| Coils Length | AS PER CUSTOMER’S REQUIREMENT |
| Form | Sheets, Plates, Coils, Strips, Circle, Ring, Disc, Foils |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Incoloy 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60ᴬ | 0.15 – 0.60ᴬ |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy 800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | NCF 800H | NA 15(H) | ЭИ670 | Z8NC33-21 | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4959 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | – | X8NiCrAlTi32-21 | XH32T |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Steel Coil | Size (mm) | Weight per Coil (Kg) | Size(mm) | Weight per Coil (Kg) |
|---|---|---|---|---|
| Incoloy 800/800H/800HT Coil | 4000 x 2000 x 2.0 | 136.0 | 3000 x 1500 x 5.0 | 191.0 |
| Incoloy 800/800H/800HT Coil | 4000 x 2000 x 3.0 | 204.0 | 4000 x 2000 x 5.0 | 340.0 |
| Incoloy 800/800H/800HT Coil | 2500 x 1250 x 4.0 | 106.0 | 2500 x 1250 x 6.0 | 159.0 |
| Incoloy 800/800H/800HT Coil | 3000 x 1500 x 4.0 | 153.0 | 3000 x 1500 x 6.0 | 230.0 |
| Incoloy 800/800H/800HT Coil | 4000 x 2000 x 4.0 | 272.0 | 4000 x 2000 x 6.0 | 408.0 |
| Incoloy 800/800H/800HT Coil | 2500 x 1250 x 5.0 | 133.0 |
Incoloy 800, 800H and 800HT coils and offer many advantages, such as exceptional resistance to oxidation, carburization and high temperature corrosion, making them ideal for harsh environments Their high nickel content ensures high thermal stability and efficiency , while the chromium content gives it better resistance to oxidation Incoloy 800H and The 800HTs also have enhanced creep and fracture strength due to high carbon and titanium content. These alloys exhibit excellent weldability, excellent long-term performance and durability, making them ideal for use in applications such as power generation, chemical processing and heat treatment

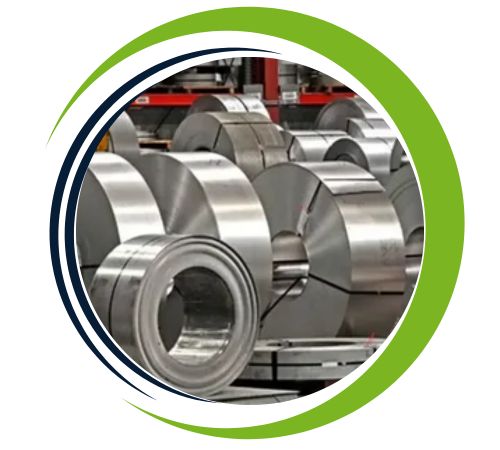

Coil/Slitting Incoloy 800/800H/800HT Industries needing high resistance to heat and oxidation use coils extensively. Heat exchangers, reformer tubing, and furnace parts in power and petrochemical facilities are typical uses. They are perfect for components in high-temperature chemical processing equipment and superheater and reheater tubing in fossil fuel power plants. They are also appropriate for piping systems and pressure vessels due to their structural stability at high temperatures. Applications requiring custom-width strips, dependable corrosion resistance, and consistent performance under mechanical stress and thermal cycling can benefit from the slitting coil format’s support for precision manufacturing.
