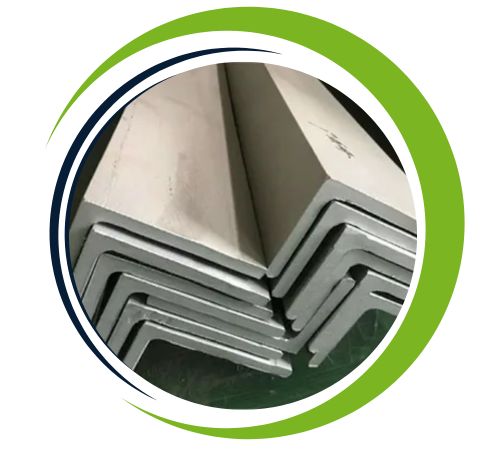

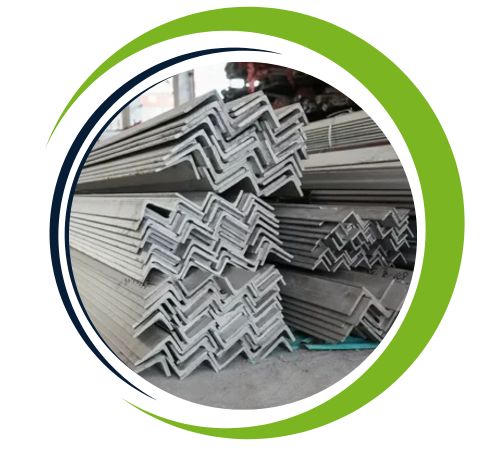

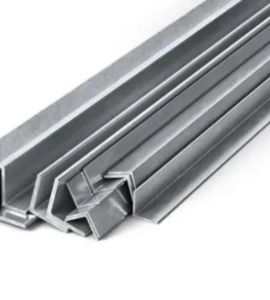

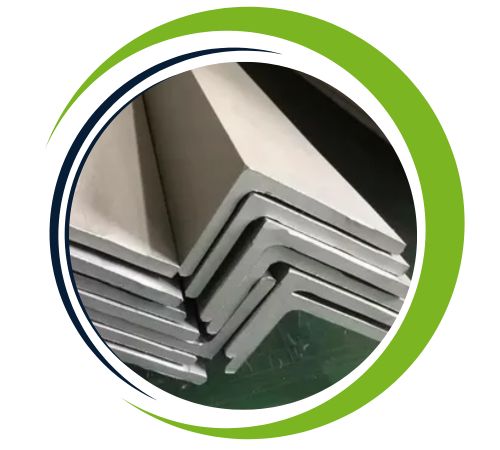

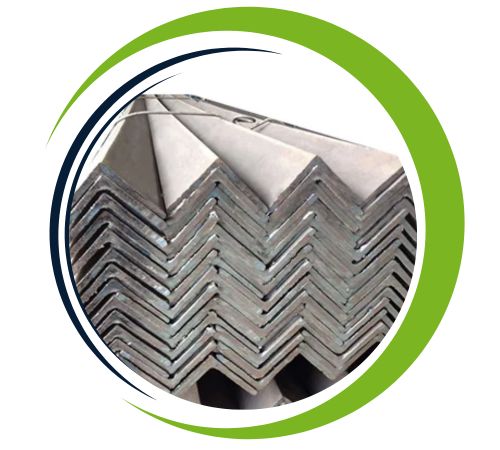

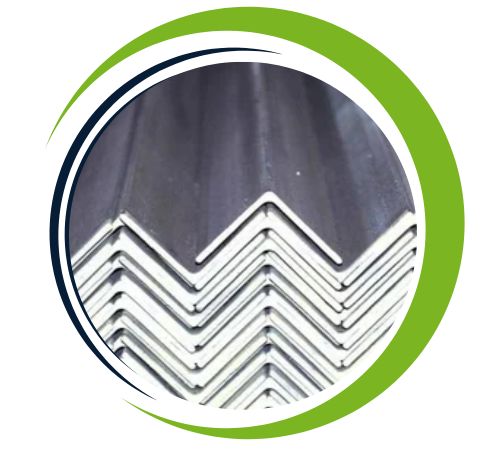

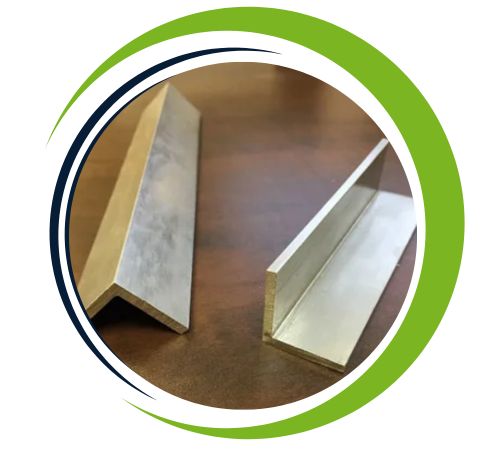

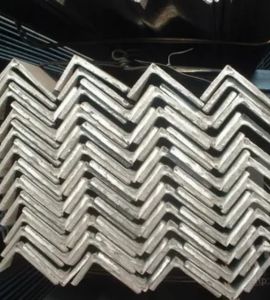

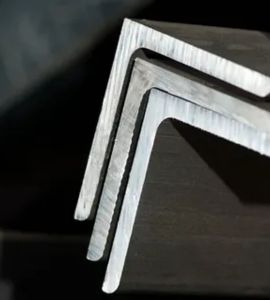

Renowned for its exceptional strength and resistance to corrosion in harsh environments, Kunj Sheets and Plates, a prominent manufacturer and supplier with headquarters in Chennai, India, provides premium-quality Incoloy 825 Angles. These angles are produced strictly in accordance with international standards and are designed to function in applications involving acids, seawater, and high temperatures. Incoloy 825 Angles are offered by Kunj in a range of sizes and finishes, guaranteeing accuracy, robustness, and dependability. Serving a broad clientele in industries including chemical processing, marine engineering, pollution control, and oil and gas, Kunj is dedicated to quality and on-time delivery, providing tailored solutions for a range of industrial needs.
Nickel (38–46%), iron (balance), chromium (19.5–23.5%), molybdenum (2.5–3.5%), copper (1.5–3.0%), and titanium (0.6–1.2%) make up the majority of Incoloy 825 Angles. Excellent resistance to oxidising and reducing acids, stress corrosion, cracking, and pitting is provided by this exact blend. In addition to having good ductility and impact resistance, the alloy has a tensile strength of roughly 690 MPa and a yield strength of about 275 MPa. When exposed to high temperatures and harsh chemicals, Incoloy 825 Angles retain their mechanical stability, which makes them ideal for demanding applications requiring long-lasting corrosion protection and structural strength.
Specifications : ASTM B425 / ASME SB425
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 16 | ЭП703 | NFE30C20DUM | NiCr21Mo | XH38BT |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Incoloy 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Incoloy 825 angles offer several advantages, making them ideal for harsh environments. They provide outstanding resistance to corrosion, including sulfuric acid, phosphoric acid, and seawater, ensuring durability in chemical and marine applications. The alloy’s high strength and excellent oxidation resistance at elevated temperatures make it suitable for high-stress conditions. Additionally, Incoloy 825 exhibits good weldability and formability, allowing for ease of fabrication. Its resistance to stress corrosion cracking, coupled with enhanced mechanical properties, ensures reliable performance and longevity, making it a preferred choice for industries like chemical processing and power generation.
| Sizes (all Dimensions in milimeter) | Approx Weight SS Angle Bar (kilogram/meter) | Incoloy Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight SS 316 Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Incoloy 825 Angle to meet specific project needs. Our team at Kunj Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@kunjsheetsplates.com.
Industries that require exceptional corrosion resistance and structural durability frequently use Incoloy 825 Angles. They are perfect for equipment that handles phosphoric and sulphuric acids in chemical processing facilities. They are used in condenser supports, evaporators, and heat exchangers in the power and energy sectors. These angles are used in risers, piping systems, and structures exposed to seawater in both marine and offshore settings. They are also utilised in acid production facilities, pickling tank liners, and pollution control equipment. Incoloy 825 Angles are a popular option for heavy-duty, long-term industrial applications because of their exceptional resistance to corrosive environments and mechanical stress.
