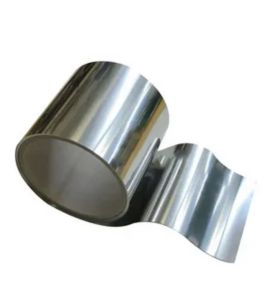

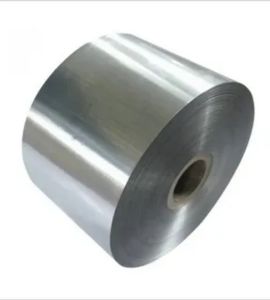

Based in Chennai, India, Kunj Sheets and Plates is a top producer and supplier of premium-grade Inconel 600 coils. Kunj, which has a track record of producing high-performance alloys, specialises in creating Inconel 600 Coils, which are renowned for their exceptional heat and corrosion resistance. Industries including chemical processing, aerospace, nuclear power, and marine engineering make extensive use of these coils. Strict quality control procedures and sophisticated manufacturing techniques are used by the company to guarantee quality. Kunj Sheets and Plates is a reputable supplier of dependable and long-lasting Inconel 600 Coil solutions in demanding industrial settings, providing adjustable dimensions and fast delivery.
About 72% nickel, 14%–17% chromium, and 6%–10% iron make up the nickel-chromium-iron alloy known as Inconel 600 Coil. It provides exceptional resistance to corrosion and oxidation, especially in hot and acidic conditions. The coil has a yield strength of about 310 MPa and a tensile strength of about 655 MPa. From cryogenic to 1093°C, its exceptional mechanical qualities hold steady over a broad temperature range. Additionally, Inconel 600 exhibits excellent formability, weldability, and creep resistance, which makes it perfect for fabrication and use in harsh industrial settings.
Specifications : ASTM B168 / ASME SB168
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

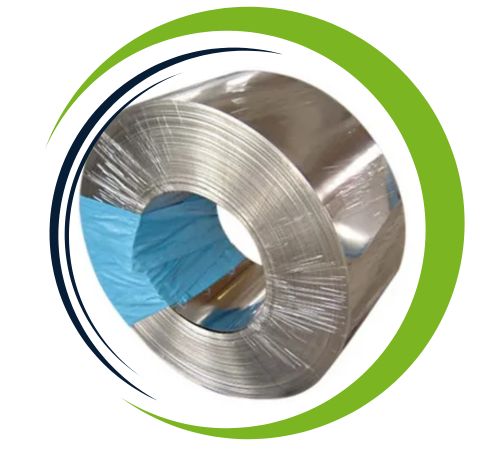

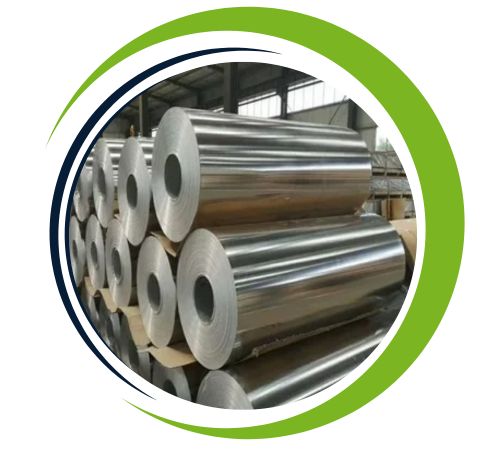

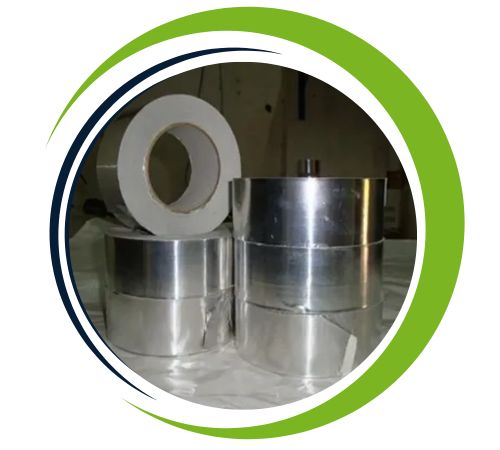

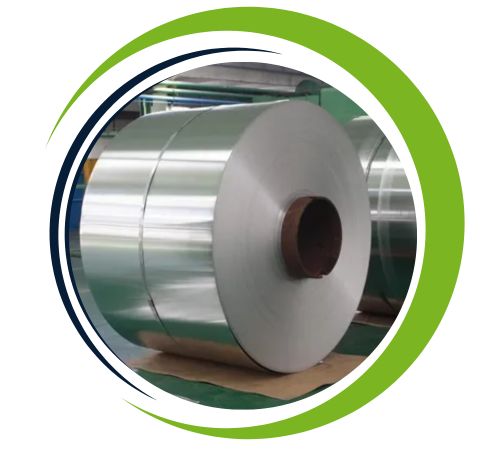

Finish : Hot rolled (HR), Cold rolled coils (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)

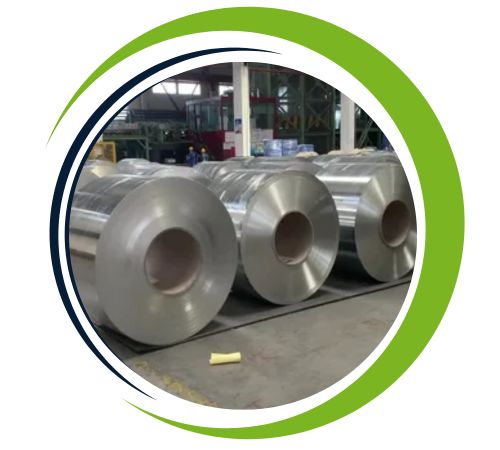

Form : Plain Coils, Shim Coils, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Alloy 600 | 0.15 max | 1.00 max | 0.50 max | 0.015 max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Element | Density | Melting Point | Tensile Strengt | Yield Strength (0.2%Offset) | Elongation |
| Alloy 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Grade | UNS | DIN | JIS | BS | GOST | AFNOR | EN |
| Alloy 600 | N06600 | 2.4816 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

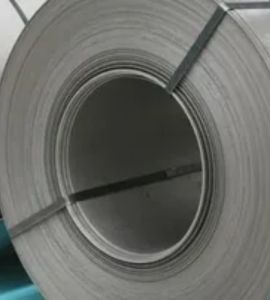

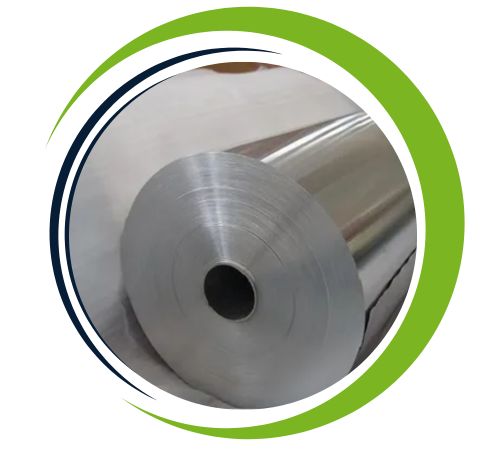

Inconel 600 Coil/Slitting Coil offers excellent high-temperature resistance, superior strength, and corrosion resistance, making it ideal for extreme environments. Its durability, oxidation resistance, and good mechanical properties under thermal stress ensure longevity and reliability in demanding applications. The material’s versatility, ease of fabrication, and resistance to carburization and chloride stress-corrosion cracking make it highly suitable for aerospace, chemical processing, and power generation industries.
Applications requiring high-temperature strength and corrosion resistance make extensive use of Inconel 600 coil. It is utilised in reaction vessels, evaporators, and heat exchangers that deal with corrosive materials in the chemical industry. Because of its exceptional thermal stability, it is used in exhaust ducts and turbine components in aerospace and aviation. It is used in control rod mechanisms and reactor cores in the nuclear industry. It is used in equipment used in the food processing industry that is exposed to caustic or acidic environments. Additionally, it can be used for custom-fabricated components in a variety of precision applications due to its versatility in slitting and forming processes.
