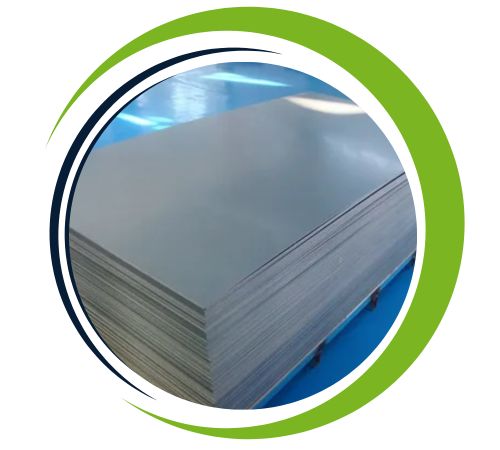

In Delhi, India, Kunj Sheets and Plates is a leading producer and supplier of Inconel 600 Sheets and Plates, offering high-performance solutions to sectors that must withstand harsh temperatures and corrosive environments. The nickel-chromium-iron alloy Inconel 600 is well known for its ability to withstand high temperatures, corrosion, and oxidation. It is perfect for chemical processing, heat exchangers, and aerospace applications because it retains structural integrity at high and cryogenic temperatures. We at Kunj provide Inconel 600 plates in a range of thicknesses and specifications, guaranteeing superior surface finish, precise dimensions, and constant quality that satisfies global standards like ASTM B168 and ASME SB168.
About 72% nickel, 14–17% chromium, and 6–10% iron make up Inconel 600, with trace amounts of silicon, manganese, and copper. At high temperatures, this alloy shows exceptional resistance to oxidation, cracking, and corrosion caused by chloride ions. It has a yield strength of roughly 240–345 MPa, a tensile strength of 550–750 MPa, and an elongation of up to 45%. Up to 1100°C, Inconel 600 retains its ductility and strength at cryogenic temperatures. Additionally, the alloy exhibits strong machinability, stability, and weldability in conditions of cyclic heating and cooling.
| Specifications | ASTM B168 / ASME SB168 |
| Thickness | 4mm-100mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hairline, sand blast, Brush, etching, etc |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Grade | UNS No | Old British | Euronorm | GOST | Japanese JIS | ||
| BS | En | No | AFNOR | ||||
| Inconel 600 | N06600 | NA 13 | NiCr15Fe | 2.4816 | NC15FE11M | МНЖМц 28-2,5-1,5 | NCF 600 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 600 sheets and plates offer several advantages, making them ideal for high-performance applications. They exhibit excellent resistance to oxidation, carburization, and corrosion, especially at elevated temperatures, ensuring durability in harsh environments. With high tensile strength and excellent weldability, Inconel 600 is highly reliable in aerospace, chemical, and power generation industries. It also maintains stability and strength in extreme thermal conditions, making it suitable for use in heat exchangers, gas turbines, and furnace components. Additionally, Inconel 600’s resistance to chloride-ion stress corrosion cracking enhances its longevity and performance.
Yes, we offer custom sizes for Inconel 600 Sheets and Plates to meet specific project needs. Our team at Kunj Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Surface finish | Thickness (mm) | Width (mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed | 0.25–8.0 | max. 2032 |
| 2D – Cold rolled, heat treated, pickled | 0.4–6.35 | max. 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled | 0.4–8.0 | max. 2032 |
| 2R – Cold rolled, bright annealed | 0.25–3.5 | max. 1524 |
| 2H – Work hardened | 0.4–6.35 | max. 1524 |
| Polished, brushed | 0.5–4.0 | max. 1524 |
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm |
In many thermal and corrosive service applications, such as heat exchangers, furnace parts, retorts, and chemical processing apparatus, Inconel 600 Sheets and Plates are utilised. Because of their resistance to heat and oxidation, they are utilised in engine parts and exhaust systems in the aerospace sector. Additionally, the alloy is used in nuclear reactors, food processing, and marine environments where exposure to seawater and chloride is a concern. Inconel 600 is also utilised in evaporator tubes and pressure vessels where corrosion resistance and high mechanical strength are essential. Because of its adaptability, it is a material of choice in harsh and demanding industrial settings.
