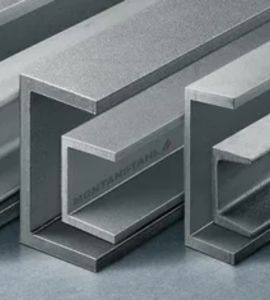

Reputable Chennai, India-based manufacturer and supplier Kunj Sheets and Plates provides premium Inconel 601 Channels designed for corrosive and high-temperature conditions. Our Inconel 601 Channels are extensively utilised in sectors such as heat treatment, chemical processing, and aerospace because of their exceptional oxidation resistance and thermal stability. These channels are made in accordance with strict international standards and have a long service life, high mechanical strength, and precise dimensions. Kunj is a dependable partner for customers looking for strong and high-performing Inconel 601 structural components because we guarantee on-time delivery, customisation choices, and quality assurance.
Nickel (58–63%), chromium (21–25%), and iron (balance) make up the majority of Inconel 601 Channels, with silicon and aluminium (~1.0–1.7%) added in trace amounts. Excellent resistance to high-temperature oxidation and carburisation is provided by this composition. With good elongation and creep resistance, Inconel 601 has a yield strength of about 275 MPa and a tensile strength of about 620 MPa. Up to 1200°C, it maintains its structural stability. The alloy is appropriate for demanding thermal and chemical processing environments because it also offers good mechanical strength, weldability, and resistance to aqueous corrosion.
Specifications : ASTM B166 / ASME SB166
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
| Grade | C | Mn | Si | Cu | S | Fe | Mo | Ni | Cr |
| Inconel 601 | 0.10 max | 1 max | 0.50 max | 1 max | 0.15 min | balance | – | 58.0-63.0 | 21.0–25.0 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including sheets, plates, coils, foils, angles, channels, circles, and slitting coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 601 Channels offer several advantages, making them ideal for high-temperature and corrosive environments. Their exceptional oxidation and carburization resistance at temperatures up to 2200°F (1200°C) ensure long-lasting performance in extreme conditions. The alloy’s high tensile strength, excellent fatigue and thermal-fatigue strength, and resistance to various corrosive media, including sulfur compounds, provide reliable durability. Inconel 601 also demonstrates good weldability and formability, making it versatile for various applications. These properties make it suitable for industries like aerospace, chemical processing, and power generation, where materials are subjected to high heat and stress.
| Sizes (all Dimensions in milimeter) | Approx Weight Inconel Angle Bar (kilogram/meter) | Inconel Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Inconel Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Inconel 601 Channel to meet specific project needs. Our team at Kunj Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@kunjsheetsplates.com.
High-temperature industrial applications that demand remarkable oxidation resistance and structural dependability frequently use Inconel 601 Channels. They are utilised in radiant tubes, muffles, and furnace components in the heat treatment sector. They are used in thermal oxidisers, process heaters, and catalyst support grids in the chemical and petrochemical industries. They are used in gas turbine exhaust ducts and engine parts in the power generation and aerospace industries. Furthermore, because of their resistance to corrosion, these channels are perfect for offshore and marine applications. In any situation where sustained performance in hot and harsh conditions is crucial, Inconel 601 Channels are strongly recommended.
