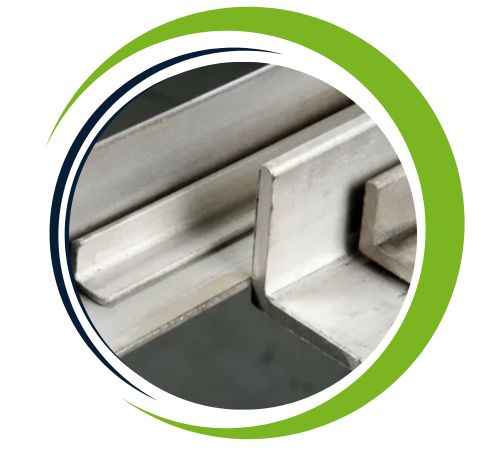

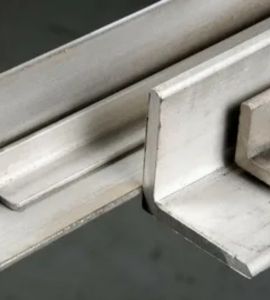

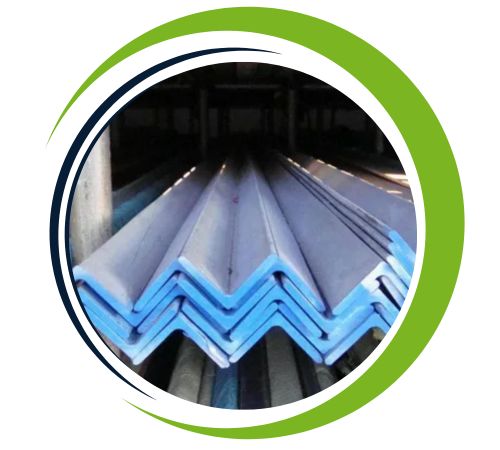

Delivering premium Inconel 625 Angles for crucial industrial applications is the area of expertise for Chennai, India-based Kunj Sheets and Plates, a reputable manufacturer and supplier. For structural applications in demanding environments, our Inconel 625 Angles are perfect because of their remarkable strength, resistance to corrosion, and stability at high temperatures. These angles are ideal for the marine and aerospace industries because they are made in accordance with international standards and have outstanding weldability and fatigue resistance. At Kunj, we guarantee accurate fabrication, prompt delivery, and customer-focused service, providing dependable and excellent service to sectors like chemical processing, offshore engineering, nuclear power, and thermal applications.
Nickel (58% min), chromium (20–23%), molybdenum (8–10%), and niobium (3.15–4.15%) make up the majority of Inconel 625 Angles, with trace amounts of iron, cobalt, and other elements. At high temperatures, this alloy provides exceptional resistance to oxidation, pitting, and crevice corrosion. It maintains mechanical stability over a broad temperature range with a tensile strength of roughly 827 MPa and a yield strength of roughly 414 MPa. Additionally, Inconel 625 Angles provide outstanding toughness, weldability, and fatigue strength, which makes them perfect for structural elements subjected to high-stress and corrosive conditions.
Specifications : ASTM B446 / ASME SB446
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 625 Angle offers several key advantages, including exceptional resistance to high-temperature oxidation, corrosion, and thermal-fatigue, making it ideal for extreme environments. Its high strength and excellent weldability ensure durability in challenging applications. The alloy’s resistance to seawater, chemicals, and oxidation at elevated temperatures makes it perfect for aerospace, marine, and chemical processing industries. Inconel 625 Angle also exhibits outstanding fatigue and creep resistance, ensuring long-term performance in high-stress conditions. Additionally, its ability to retain its mechanical properties in harsh environments enhances the reliability and lifespan of components.
Yes, we offer custom sizes for Inconel 625 Angle to meet specific project needs. Our team at Kunj Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Sizes (all Dimensions in milimeter) | Approx Weight Inconel 600 Angle Bar (kilogram/meter) | Inconel 600 Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Inconel 600 Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Inconel 625 Angles are frequently utilised in settings that demand high strength and heat and corrosion resistance. They are used in exhaust ducts, turbine casings, and engine parts in the aerospace sector. Because they are resistant to seawater and chlorides, they are used in the offshore and marine industries as risers, manifolds, and structural supports. Inconel 625 Angles are utilised for heat exchangers, flue gas scrubbers, and reactor cores in nuclear and chemical processing facilities. They are also appropriate for high-pressure piping systems, power plant machinery, and thermal processing applications under harsh operating conditions due to their exceptional fatigue and stress-corrosion resistance.
