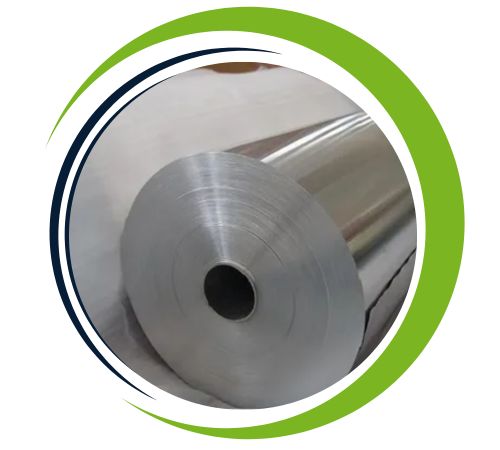

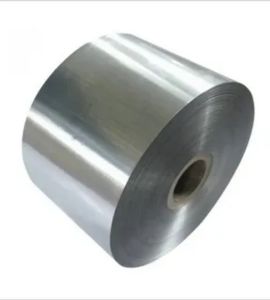

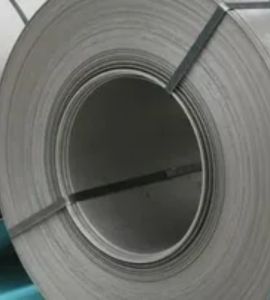

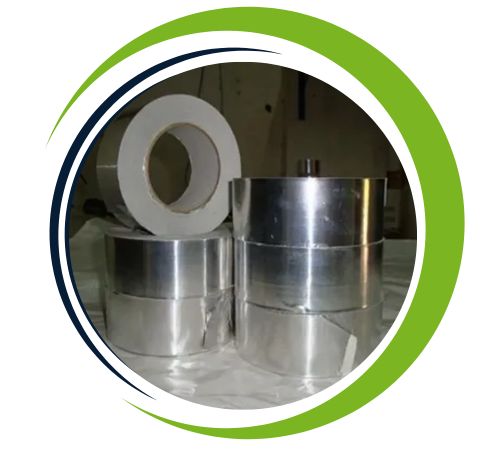

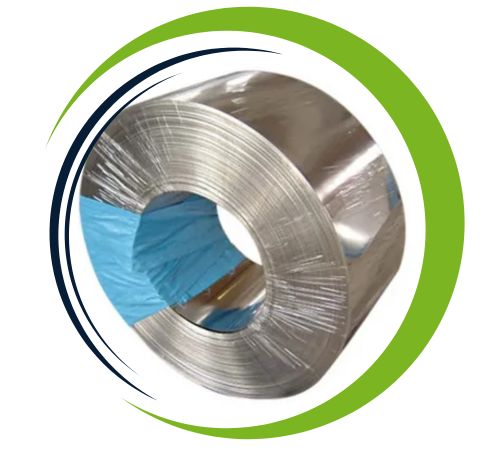

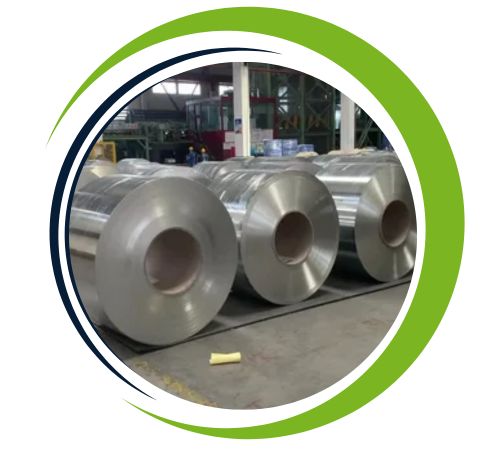

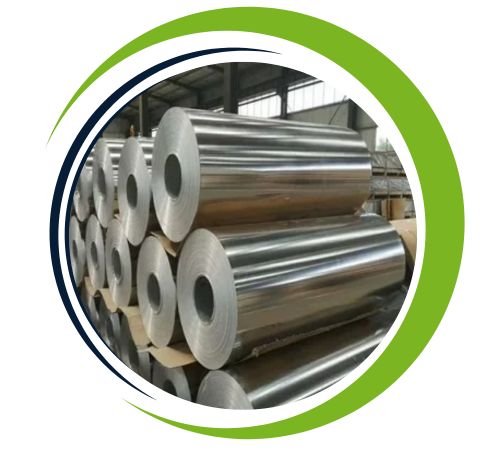

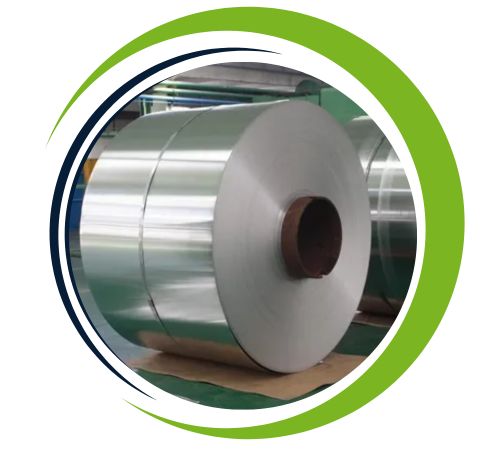

For high-performance industrial applications, Kunj Sheets and Plates, a well-known manufacturer and supplier in Chennai, India, provides premium Inconel 625 Coil/Slitting Coil. Kunj, which is renowned for producing precisely engineered goods, specialises in creating Inconel 625 coils that provide exceptional strength, durability, and resistance to corrosion in harsh environments. Their coils are designed for use in the power generation, chemical processing, marine, and aerospace industries. Kunj Sheets and Plates is a reliable supplier of Inconel 625 Coil/Slitting Coil in both standard and customised specifications, with an unwavering dedication to quality, timely delivery, and customer satisfaction.
Nickel (58% min), chromium (20–23%), molybdenum (8–10%), niobium (3.15–4.15%), and iron (5% max) make up the majority of Inconel 625 Coil/Slitting Coil. In harsh conditions, this alloy provides remarkable resistance to oxidation and corrosion. It has remarkable fatigue resistance, high creep-rupture strength, and tensile and yield strengths of about 827 MPa and 414 MPa, respectively. Because of these mechanical characteristics, as well as their exceptional weldability and thermal stability, Inconel 625 Coils can be used in demanding industries at high temperatures and pressures.
Specifications : ASTM B443 / ASME SB443
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish : Hot rolled (HR), Cold rolled coils (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Coils, Shim Coils, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Mn | Si | Cu | S | Cr | Fe | Ni | N |
| Inconel Alloy 625 | 0.10 max | 0.50 max | 0.50 max | – | 0.15 min | 20.0–23.0 | 5.0 max | 58.0 min | – |
| Density | Melting Point | Tensile Strength | Yield Strength 0.2% Proof | Elongation (% in 50mm) (thick.>0.76mm) |
| 8.4 g/cm3 | 1.350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| Grade | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Inconel 625 Coil offers exceptional corrosion resistance, making it ideal for harsh environments, including chemical and marine industries. Its high strength and excellent fatigue resistance ensure reliability in demanding applications. The material’s outstanding thermal stability and resistance to oxidation and scaling at elevated temperatures make it suitable for high-temperature operations. Additionally, Inconel 625 exhibits excellent weldability and formability, allowing for versatile fabrication. Its resistance to pitting, crevice corrosion, and stress corrosion cracking enhances durability, making it a preferred choice for aerospace, power generation, and chemical processing industries.
Inconel 625 Slitting/Coil Coils are widely used in settings that require high strength and resistance to corrosion. It is utilised in heat exchangers, jet engine parts, and exhaust systems in the aerospace sector. Because of its exceptional resistance to corrosion caused by chloride, the marine industry uses it in offshore platforms, marine exhausts, and seawater piping. Inconel 625 is also frequently used in reactors, scrubbers, and equipment used in chemical processing. It is also perfect for gas turbine engines and furnace components due to its high temperature capabilities. Precision-manufactured parts and assemblies can be easily fabricated and applied thanks to the coil form.
