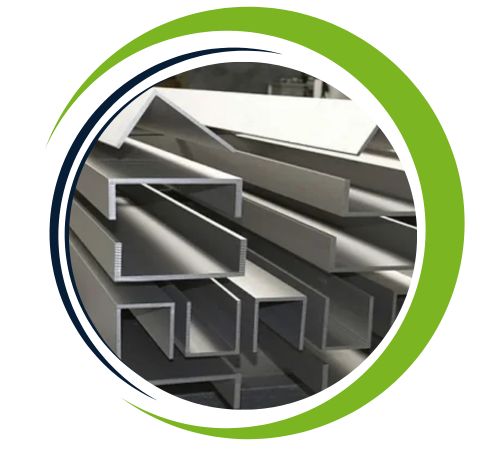

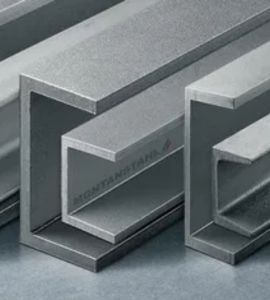

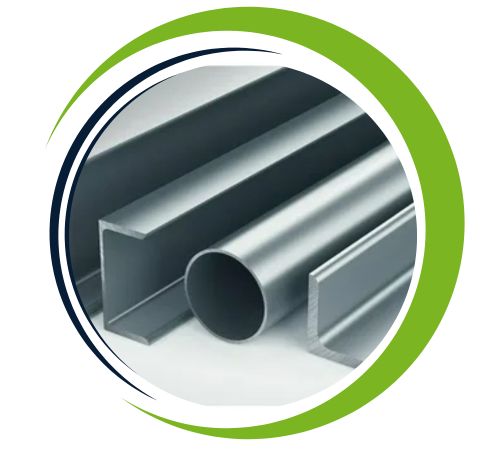

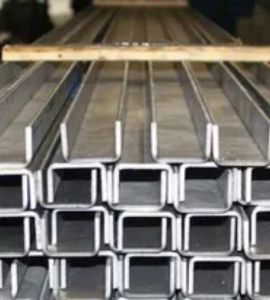

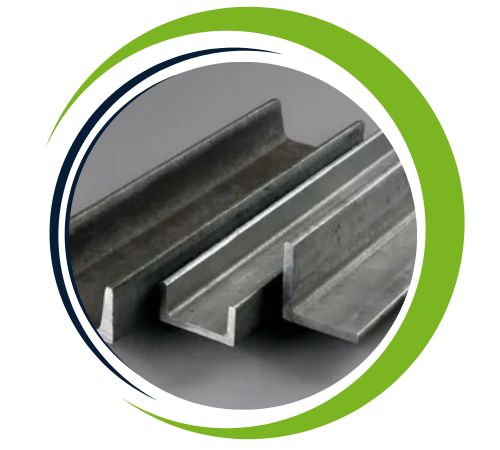

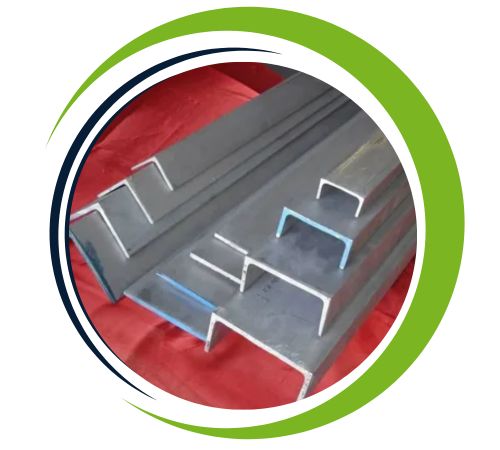

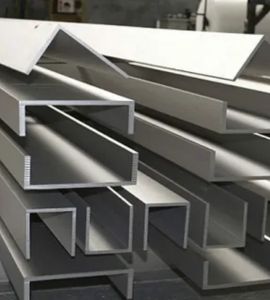

Excellent Inconel 718 Channels designed for high-performance industrial applications are available from Kunj Sheets and Plates, a well-known manufacturer and supplier in Chennai, India. Inconel 718 Channels are renowned for their exceptional mechanical strength, resistance to corrosion, and capacity to tolerate high temperatures. They are made to function in harsh conditions. We at Kunj provide Inconel 718 Channels in a variety of sizes that are expertly fabricated to satisfy international standards. Our products provide unparalleled dependability and durability in structural applications, catering to high-demand industries like aerospace, power generation, chemical processing, and marine engineering. They are backed by prompt delivery and outstanding customer service.
A nickel-based superalloy comprising nickel (50–55%), chromium (17–21%), niobium (4.75–5.5%), molybdenum (2.8–3.3%), titanium, and aluminium is used to make Inconel 718 Channels. The alloy retains its mechanical integrity up to 700°C and offers remarkable tensile strength (~1240 MPa) and yield strength (~1030 MPa). The oxidation, corrosion, and stress corrosion cracking resistance of Inconel 718 Channels is very high. They are perfect for use in critical structural components exposed to high-stress environments and thermal cycling because of their excellent weldability, fatigue resistance, and precipitation-hardening properties.
Specifications : ASTM B637 / ASME SB637
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS |
| Inconel 718 | 2.4668 | N07718 |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockiest of high-quality metal products, including sheets, plates, coils, foils, angles, channels, circles, and slitting coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 718 channels offer several key advantages, making them highly suitable for demanding applications. The alloy provides exceptional resistance to oxidation, corrosion, and scaling at elevated temperatures, ensuring longevity and durability. It maintains excellent strength and stability, even at high temperatures up to 700°C, making it ideal for aerospace and industrial applications. Inconel 718 also exhibits superior weldability, fatigue resistance, and formability. Its ability to withstand extreme thermal cycling and mechanical stress further enhances its reliability, ensuring optimal performance in harsh environments like gas turbines, chemical processing, and high-temperature manufacturing.
| Sizes (all Dimensions in milimeter) | Approx Weight Inconel 718 Channels (kilogram/meter) | Inconel 718 Channels Sizes (all Dimensions in milimeter) | Approx Weight Inconel 718 Channels (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Inconel 718 Channel to meet specific project needs. Our team at Kunj Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@kunjsheetsplates.com.
Industries that need structural stability under high stress and extreme temperatures make extensive use of Inconel 718 Channels. They are used in airframe components, engine mounts, and turbine cases in aerospace. For parts in gas turbines and nuclear power plants, Inconel 718 Channels are essential. They are used in the oil and gas industry in corrosive environments in valves, wellhead components, and downhole tools. They are utilised in processing vessels, heat exchangers, and reactors in the chemical industry. They are a dependable option for demanding load-bearing applications under challenging operating conditions because of their high fatigue strength, resistance to corrosion, and thermal stability.
