Delivering premium-quality Inconel Sheets and Plates to various industrial sectors is the area of expertise for Kunj Sheets and Plates, a reputable manufacturer and supplier in Chennai, India. Kunj’s Inconel products are well-known for their resilience to harsh conditions and corrosive temperatures, and they adhere to strict international standards. Kunj guarantees that every Inconel sheet and plate has accurate dimensions, superior surface finish, and consistent mechanical strength thanks to its skilled technical staff and state-of-the-art manufacturing facilities. Serving sectors like petrochemicals, power generation, and aerospace, Kunj is renowned for its prompt delivery, affordable prices, and dedication to offering specialised Inconel solutions both domestically and internationally.
Nickel (≥58%), chromium, iron, molybdenum, and niobium make up the majority of Inconel Sheets and Plates, which are nickel-based superalloys. Each grade has a different precise composition (e.g., Inconel 600, 625, 718). These alloys have a tensile strength of up to 1300 MPa, high fatigue and creep resistance, and outstanding resistance to oxidation and corrosion. Inconel functions well under severe stress and maintains its mechanical qualities at high temperatures, frequently above 1000°C. Because of its good formability and weldability, it can be used in harsh environments for both structural and pressure applications.
Specifications :ASTM B168, ASME SB168, AMS 4544, QQ-N-281, DIN 17750, BS 3072NA1, BS 3076NA13
Standards : ASTM, ASME and API
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Thickness : 0.1mm to 12 mm Thk
Length : 12500 mm

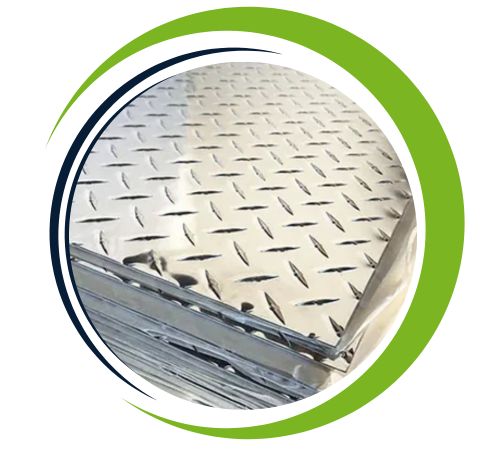

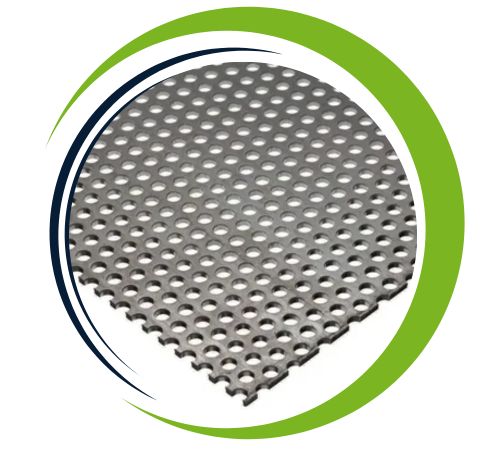

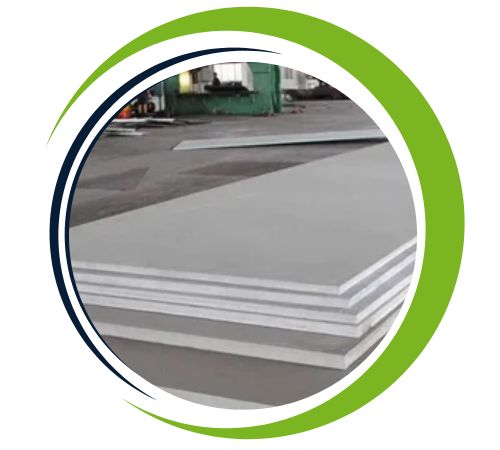

Form : Coils, Foils, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) & Angle, Channel, Tray Etc.
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Plate, Sheet, and Strip : BS3072NA18 (Sheet and Plate), BS3073NA18 (Strip), QQ-N-286 (Plate, Sheet and Strip), DIN 17750 (Plate, Sheet and Strip), ISO 6208 (Plate, Sheet and Strip)
| Density | 8.4 g/cm³ | 8.1g/cm³ | 8.4 g/cm³ | 8.2 g/cm³ |
| Melting Range,℃ | 1370-1425 ℃ | 1320-1370℃ | 1290-1350℃ | 1260-1340 ℃ |
| Elongation % | 30min. | 30 min. | 30 min. | 30 min. |
| Tensile strength – Mpa | 550min. | 650min. | 760min. | 965min |
| Yield strength – Mpa | 240min. | 300min. | 345min. | 550 min. |
| Brinell hardness (HB) | ≤195 | ≤220 | ≤220 | ≤363 |
| Alloy 600 | Inconel 600 | N06600 | 2.4816 | 8.42 |
| Alloy 601 | Inconel 601 | N06601 | 2.4851 | 8.2 |
| Alloy 625 | Inconel 625 | N06625 | 2.4856 | 8.44 |
| Alloy 718 | Inconel 718 | N07718 | 2.4668 | 8.19 |
| Surface finish | Thickness (mm) | Width (mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed | 0.25–8.0 | max. 2032 |
| 2D – Cold rolled, heat treated, pickled | 0.4–6.35 | max. 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled | 0.4–8.0 | max. 2032 |
| 2R – Cold rolled, bright annealed | 0.25–3.5 | max. 1524 |
| 2H – Work hardened | 0.4–6.35 | max. 1524 |
| Polished, brushed | 0.5–4.0 | max. 1524 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel sheets and plates offer several key advantages, making them ideal for high-performance applications. Their exceptional resistance to oxidation, corrosion, and heat ensures long-term durability in extreme environments, such as high-temperature industrial processes and aerospace components. Inconel maintains its strength and integrity at elevated temperatures, making it ideal for gas turbines, reactors, and exhaust systems. Additionally, these materials exhibit excellent fatigue and thermal-fatigue strength, along with good weldability and formability. Their versatility and reliability make Inconel a preferred choice in industries requiring superior material performance under harsh conditions.
Yes, we offer custom sizes for Inconel Sheets and Plates to meet specific project needs. Our team at Kunj Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Thickness | Alloy | Plate Weight per Unit Area | Density |
|---|---|---|---|
| 3/16 inches | Inconel | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | Inconel | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | Inconel | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | Inconel | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | Inconel | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | Inconel | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | Inconel | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | Inconel | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | Inconel | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | Inconel | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | Inconel | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | Inconel | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | Inconel | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | Inconel | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | Inconel | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | Inconel | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Industries that demand exceptional heat and corrosion resistance frequently use Inconel sheets and plates. They are used in jet engines, exhaust systems, and turbine blades in the aerospace industry. Because it can withstand strong acids and oxidising agents, Inconel is also essential to the chemical processing industry. Because of its ability to function in high-salinity and high-temperature environments, it is utilised in heat exchangers, furnace components, nuclear reactors, and marine engineering. Inconel is used in offshore platforms and downhole tools in the oil and gas sector. It is perfect for high-stress, high-temperature industrial applications all over the world because of its strength and durability.
