Kunj Sheets and Plates is a leading Delhi, India-based manufacturer and supplier of Monel 400 channels. With years of experience in providing nickle-based alloy products that are corrosion-proof and strong, the company caters to numerous industries with high-precision solutions. Kunj-monel 400 channels that are made under severe quality control processes are consistently reliable in harsh environments. It is renowned for its strength and integrity, and the channels find applications in marine, chemical, and industrial processes. Kunj Sheets and Plates is renowned for its punctuality, technical support, and dedication to delivering top-performance materials to customers.
Monel 400 is a solid-solution alloy made up primarily of 67% nickel and 23% copper, and trace amounts of iron, manganese, and silicon. It possesses remarkable resistance against corrosion, particularly in seawater and acidic conditions. The alloy provides a tensile strength of about 550 MPa, a yield strength of 170 MPa, and an elongation of about 35% and is both strong and ductile. Monel 400 channels are mechanically stable at high and low temperatures and are resistant to stress-corrosion cracking. These qualities render them ideal for severe structural applications in corrosive and high-pressure environments.
| Specifications | : | ASTM B164 / ASME B164 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Monel 400 Angle | : | 5mm to 9mm |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |

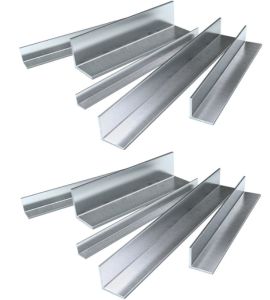

| Type | : | Angle, Architectural Angles, Equal Leg Angle, Unequal Leg Angle, Hot Rolled Steel Angle, Angle Bar |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | C | Mn | Si | Cu | Fe | Ni | S |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 28.00 – 34.00 | 2.50 max | 63.00 min | 0.024 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35000 , MPa – 240 | 40% |
Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
DIN 2.4360 Angles offer several key advantages, including outstanding resistance to corrosion, particularly in seawater, acidic, and alkaline environments. They maintain their strength and structural integrity in high temperatures, making them ideal for use in marine, chemical, and industrial applications. With superior resistance to stress corrosion cracking, pitting, and oxidation. Monel 400 angles are highly durable in harsh conditions. Additionally their ease of fabrication and welding ensures versatility in a wide range of structural and support applications. Their long-lasting performance and reliability make them a preferred choice for demanding environments and critical systems.
Yes, we offer custom sizes for Monel 400 Angles to meet specific project needs. Our team at Kunj Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| STANDARD | MATERIAL NO. | US | HE | GOST | BS | AFNOR | IN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | MNJMc 28-2.5-1.5 | THAT 13 | NO-30M | NiCu30Fe |
Monel 400 channels are extensively applied in marine applications, offshore platforms, and ships because of their corrosion resistance against brine and saltwater. They are also used in chemical process equipment, including pumps, valves, and piping systems, which operate with sulfuric and hydrofluoric acids. In the petroleum industry, Monel 400 channels are employed in refinery equipment and heat exchangers. Their high thermal conductivity and non-magnetic properties render them suitable for electrical and electronic use. Their good formability and weldability also render them fit for tailored manufacturing in both structural and mechanical systems.
