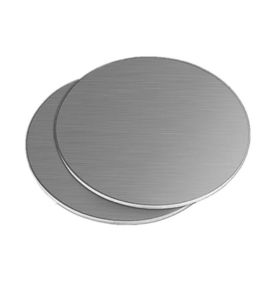

Kunj Sheets and Plates is a reliable manufacturer and supplier of premium quality Monel 400 circles in Delhi, India. Renowned for precision engineering and compliance with international standards, Kunj offers Monel 400 circles that are best for corrosion resistance and mechanical strength. The circles are in great demand in marine, chemical, and heat exchange industries for their reliability to withstand corrosive and harsh environments. With its focus on customer satisfaction, competitive pricing, and timely delivery, Kunj Sheets and Plates has emerged as a go-to option for customers looking for strong and efficient Monel 400 circle solutions in various industries.
Monel 400 circles consist mainly of nickel (approximately 63%) and copper (approximately 28–34%) with trace amounts of iron, manganese, and silicon. This solid-solution alloy offers superior resistance to seawater, hydrofluoric acid, and corrosive media. Monel 400 has tensile strength of around 70–85 ksi, yield strength between 25–40 ksi, and elongation between 30–40%, with good impact strength and ductility. The metal is stable at a broad temperature range, even sub-zero temperatures. Monel 400 circles can be welded and are simple to fabricate, thus suitable for use where strength, durability, and chemical resistance are needed.
| Standard | ASTM B127, ASME SB127 |
| Dimensions | ASTM, ASME and API |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Thickness | 1 Mm To 100 mm. |
| Diameter | Upto 2000 Mm. |
| Circle Diameter | 3″ DIA up to 38″ DIA 1500 lbs max. |

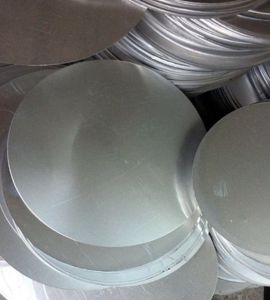

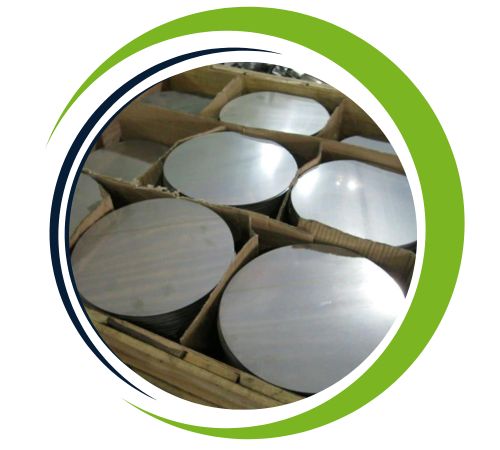

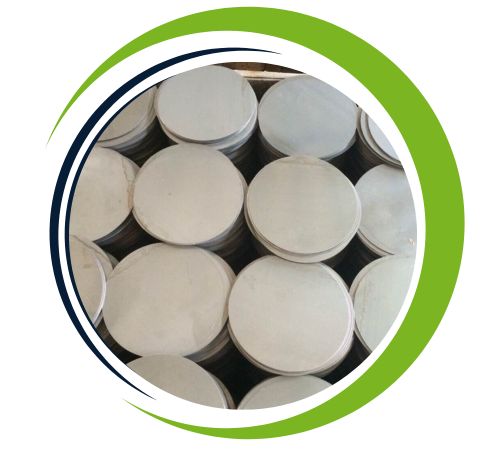

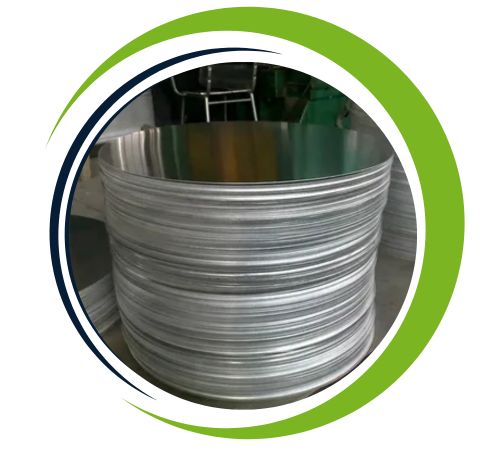

| Circles Form | Cold Rolled, Small Flat, Industrial, Proof Machined, Perforated, Forged Steel, Hot Rolled Circle. |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | Ni | C | Al | Mn | Si | Fe | Cu | S |
| Monel 400 | 63.0 min | 0.3 max | 0.50 max | 2.0 max | 0.5 max | 1.0 – 2.5 | 28.0 – 34.0 | 0.02 max |
| Property | Value |
|---|---|
| Tensile Strength | 70-95 ksi (485-655 MPa) |
| Yield Strength | 30 ksi (205 MPa) min |
| Elongation | 35% min in 2 inches (50 mm) |
| Hardness | Rockwell B70 max |
| Modulus of Elasticity | 28 x 106 psi (193 GPa) |
| Poisson’s Ratio | 0.31 |
UNS N04400 Circle offers several advantages, including outstanding corrosion resistance in marine and chemical environments, making it ideal for seawater applications. Its high strength and durability ensure long-lasting performance under stress and high temperatures. The alloy’s resistance to pitting, crevice corrosion, and stress corrosion cracking makes it highly reliable in harsh conditions. Monel 400 is also known for its excellent thermal conductivity and machinability, making it easy to fabricate. Its versatility extends across a variety of industries, including marine, chemical processing, and aerospace, ensuring it meets demanding requirements while offering superior performance.
Yes, we offer custom sizes for Monel 400 Circle to meet specific project needs. Our team at Kunj Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Outer Diameter (OD) (mm) | Thickness (mm) | Size (mm) | Approximate Weight (kg) |
|---|---|---|---|
| 100 | 5 | 100 x 5 | 3.92 |
| 150 | 10 | 150 x 10 | 17.66 |
| 200 | 15 | 200 x 15 | 39.26 |
| 250 | 20 | 250 x 20 | 68.83 |
| 300 | 25 | 300 x 25 | 107.36 |
| 350 | 30 | 350 x 30 | 154.87 |
| 400 | 35 | 400 x 35 | 211.35 |
| 450 | 40 | 450 x 40 | 276.80 |
| 500 | 50 | 500 x 50 | 392.70 |
| Property | Value |
|---|---|
| Density | 8.80 g/cm³ |
| Melting Point | 1,455°C (2,651°F) |
| Electrical Resistivity | 0.49 µΩ·cm |
| Thermal Conductivity | 35.4 W/m·K |
| Thermal Expansion (25-100°C) | 13.4 µm/m·K |
| Specific Heat (at 25°C) | 0.385 J/g·K |
| Young’s Modulus | 193 GPa (28 x 10⁶ psi) |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
|---|---|---|---|---|---|---|---|
| Monel 400 | N04400 | 2.4360 | NU-30M | NiCu30Fe | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 |
Monel 400 circles are commonly employed for use in marine conditions like propeller shafts, sea water valves, and heat exchangers because of their high resistance to sea water and brine. In the chemical sector, they are suited for the treatment of acids, alkalis, and other aggressive chemicals. The circles are applied in refineries, pumps, fuel tanks, and pipe systems where corrosion resistance is paramount. Their non-magnetic nature makes them particularly applicable to electronic and instrumentation devices. Monel 400 circles are also appreciated in aerospace and military uses for their mechanical stability in harsh and corrosive conditions.
