Reputable Chennai, India-based manufacturer and supplier Kunj Sheets and Plates provides premium Monel Circles made to satisfy exacting industrial requirements. Kunj’s Monel Circles, which are renowned for their exceptional mechanical strength and resistance to corrosion, are made with sophisticated manufacturing processes and stringent quality control procedures. These circles are appropriate for both standard and customised needs because they come in a range of thicknesses and diameters. With years of industry experience and a dedication to accuracy and dependability, Kunj produces Monel Circles that are widely used for high-performance and critical applications in the chemical, aerospace, and marine industries.
With trace amounts of iron, manganese, carbon, and silicon, nickel (at least 63%) and copper (up to 33%) make up the majority of Monel Circles. Superior resistance to acids, alkalis, and seawater is provided by this special alloy blend. Monel Circles are tough over a broad temperature range, with tensile strength ranging from 550 to 620 MPa and yield strength between 240 and 345 MPa. They are appropriate for high-stress situations because of their good ductility, weldability, and thermal conductivity. Because the alloy maintains its mechanical qualities in harsh environments, Monel Circles are a reliable option for demanding industrial processes.
| Standard | ASTM B127, ASME SB127 |
| Dimensions | ASTM, ASME and API |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Thickness | 1 Mm To 100 mm. |
| Diameter | Upto 2000 Mm. |
| Circle Diameter | 3″ DIA up to 38″ DIA 1500 lbs max. |

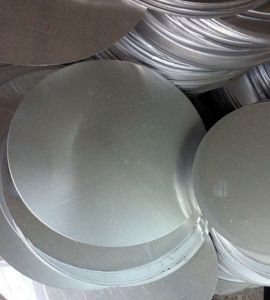

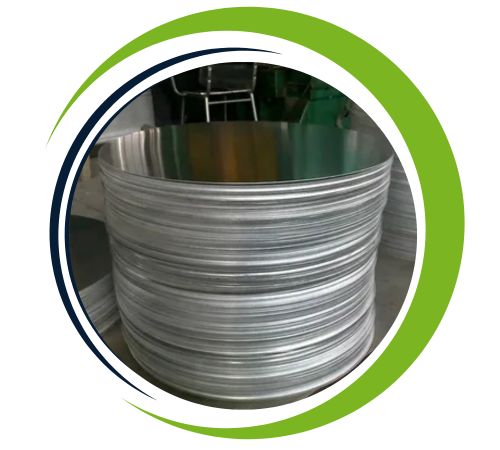

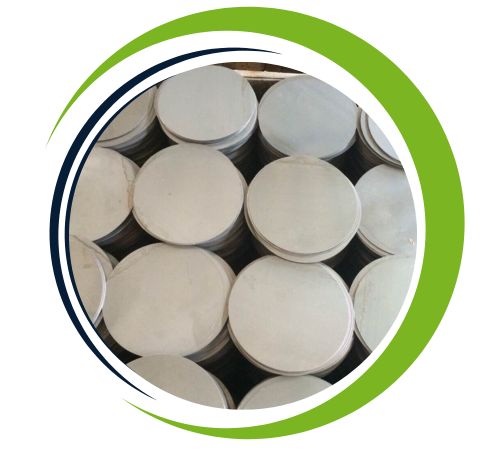

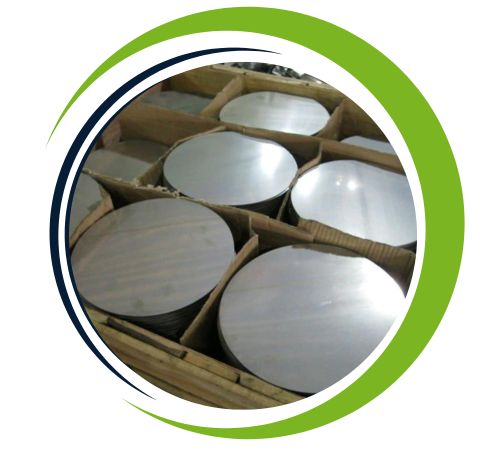

| Circles Form | Cold Rolled, Small Flat, Industrial, Proof Machined, Perforated, Forged Steel, Hot Rolled Circle. |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Diameter (inches) | Thickness (inches) |
|---|---|
| 1/4″ to 36″ | 1/8″ to 4″ |
| 1/4″ to 24″ | 1/8″ to 2″ |
| 1/4″ to 12″ | 1/8″ to 1″ |
| 1/4″ to 10″ | 1/8″ to 1″ |
| 3/8″ to 20″ | 1/8″ to 1-1/2″ |
| 3/8″ to 12″ | 1/8″ to 1″ |
| Diameter (inches) | Thickness (inches) | Weight (lbs per inch) | Weight (kg per inch) |
|---|---|---|---|
| 1 | 0.125 | 0.197 | 0.089 |
| 2 | 0.125 | 0.789 | 0.358 |
| 3 | 0.125 | 1.777 | 0.805 |
| 4 | 0.125 | 3.149 | 1.427 |
| 5 | 0.125 | 4.911 | 2.225 |
| 6 | 0.125 | 7.073 | 3.212 |
| 2 | 0.250 | 1.578 | 0.715 |
| 3 | 0.250 | 3.555 | 1.613 |
| 4 | 0.250 | 6.298 | 2.856 |
| 5 | 0.250 | 9.822 | 4.453 |
| 6 | 0.250 | 14.442 | 6.554 |
Monel Circle provides numerous advantages making it a preferred choice for industrial applications. Its excellent corrosion resistance ensures durability in marine and chemical environments, including exposure to seawater, acids, and alkalis. The alloys high strength and toughness enable it to perform under mechanical stress and extreme temperatures. Monel Circle is resistant to pitting, crevice corrosion and stress corrosion cracking, ensuring long-term reliability. Additionally, it offers good machinability and weldability, simplifying fabrication processes. These qualities make Monel Circle a versatile and dependable material for various demanding applications across industries.
Yes, we offer custom sizes for Monel Circle to meet specific project needs. Our team at Kunj Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Monel Grade | UNS | WNR | AFNOR | JIS |
|---|---|---|---|---|
| Monel R405 | UNS N04405 | 2.4360 | NC 12 | JIS NCU 405 |
| Monel 400 | UNS N04400 | 2.4361 | NC 1 | JIS NCU 400 |
| Monel K-500 | UNS N05500 | 2.4375 | NC 11 | JIS NCU 500 |
Monel circles are widely used in sectors like marine engineering, oil and gas, chemical processing, and aerospace that demand high strength and resistance to corrosion. They are perfect for seawater handling systems, valve plates, and pump parts in maritime settings. In chemical plants, Monel Circles are used for reactor vessels, heat exchangers, and piping systems exposed to corrosive substances. Their high strength-to-weight ratio and oxidation resistance make them ideal for engine parts and structural components in aerospace applications. They are also used in the production of instrumentation parts, gaskets, and flanges that require accuracy and robustness.
