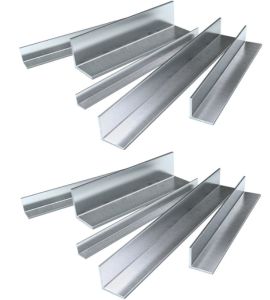

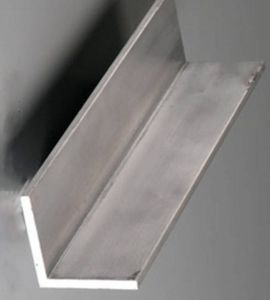

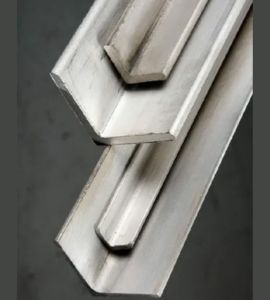

Kunj Sheets and Plates is a premier manufacturer and supplier of Monel K500 angles from Delhi, India, providing high-quality products designed to withstand harsh environments. With its high strength coupled with corrosion resistance, Monel K500 is well suited for heavy duty industrial applications. Monel K500 angles at Kunj are produced under the latest technology and stringent quality control to qualify for international standards. The company caters to numerous industries such as marine, aerospace, oil & gas, and chemical processing so clients can get reliable and durable solutions that are specifically shaped to suit their specific project requirements.
Monel K500 angles consist of primarily nickel (about 63%) and copper (27–33%), along with minute fractions of aluminum and titanium which provide strengthening through age-hardening. These angles have a tensile strength of as high as 110 ksi and yield strength of approximately 80 ksi, with elongation of approximately 20%. They retain mechanical integrity at sub-zero and elevated temperatures. Monel K500 also has excellent resistance to corrosion, stress corrosion cracking, and erosion, especially in marine and chemical environments. It has non-magnetic character and high fatigue strength, thus being appropriate for severe structural applications.
| Specifications | : | ASTM B865 / ASME B865 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Monel K500 Angle | : | 5mm to 9mm |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | : | Angle, Architectural Angles, Equal Leg Angle, Unequal Leg Angle, Hot Rolled Steel Angle, Angle Bar |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | C | Mn | Si | Cu | Fe | Ni | S |
| Monel K500 | 0.25 max | 1.50 max | 0.5 max | 27.0-33.0 | 0.5 – 2 | 63.0 min | 0.010 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Monel K500 Angles offer several advantages, including exceptional strength, excellent corrosion resistance, and high performance in harsh environments. Their ability to withstand corrosion in seawater, acids, and alkalis makes them ideal for marine and chemical processing applications. With superior resistance to stress corrosion cracking, pitting, and oxidation, Monel K500 angles are durable in extreme conditions. They also maintain high mechanical strength at elevated temperatures, making them suitable for use in aerospace and industrial sectors. Additionally, their ease of fabrication and welding further enhances their versatility and reliability in structural and support applications.
Yes, we offer custom sizes for Monel K500 Angles to meet specific project needs. Our team at Kunj Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | JIS | GOST | BS | EN |
| Monel k500 | 2.4375 | N05500 | – | – | – | – | – |
Monel K500 angles find broad application in industries needing superior strength and resistance to corrosion. In the marine industry, they are most suitable for shafts, fasteners, and components exposed to seawater. In oil and gas, they are utilized in tools, drill collars, and safety valves because of their sour-gas condition resistance. Chemical processing plants apply these angles to heat exchangers, pumps, and storage tanks. They are also utilized in aerospace parts with high performance requirements under stress. With resistance to severe environments and great mechanical characteristics, Monel K500 angles provide a trustworthy option for structural and load bearing assemblies.
