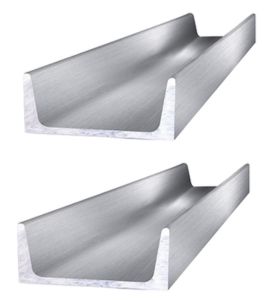

Kunj Sheets and Plates is a reliable manufacturer and supplier of Monel K500 channels, having their base in Delhi, India. With its expertise in providing high-quality nickel-copper alloy products, the company focuses on Monel K500 because of its superior strength, resistance against corrosion, and performance in austere conditions. With state-of-the-art manufacturing facilities and compliance with international standards, Kunj ensures that each product is made with precision. Supplying industries like marine, chemical, and aerospace, the company offers dependable solutions specific to varied industrial requirements. Timely service, technical support, and product consistency are the hallmarks of Kunj Sheets and Plates.
Monel K500 is a precipitation-hardened nickel-copper alloy with supplemental additions of aluminum and titanium, which give it added strength and hardness. Its nominal composition is about 63% Ni, 27–33% Cu, 2.3–3.15% Al, and 0.35–0.85% Ti. The alloy has a tensile strength of up to 1100 MPa, yield strength of 790 MPa, and superior elongation and toughness. The alloy has its mechanical properties maintained even in subzero temperatures and corrosion resistance against marine and chemical environments. Monel K500 channels integrate the corrosion resistance of Monel 400 with increased strength, ideal for high-stress and corrosive applications.
e against marine and chemical environments. Monel K500 channels integrate the corrosion resistance of Monel 400 with increased strength, ideal for high-stress and corrosive applications.
| Specifications | : | ASTM B865 / ASME B865 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Monel 400 Channel | : | 40mm*20mm~300mm*300mm |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | : | C Channel, U Channel, Channels |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | C | Mn | Si | Cu | Fe | Ni | S |
| Monel K500 | 0.25 max | 1.50 max | 0.5 max | 27.0-33.0 | 0.5 – 2 | 63.0 min | 0.010 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 1,60,000 , MPa – 1100 | Psi – 1,15000 , MPa –790 | 20% |
UNS N05500 C Channel offers exceptional advantages, including superior corrosion resistance in harsh marine and chemical environments. Enhanced by its precipitation-hardening process, it provides significantly higher tensile and yield strength compared to Monel 400. The alloy exhibits excellent resistance to stress corrosion cracking, pitting, and crevice corrosion, ensuring reliability in challenging conditions. Its high thermal and electrical conductivity make it suitable for high-performance applications. Additionally, Monel K500 retains strength and toughness across a wide temperature range, making it ideal for aerospace, marine, and industrial uses requiring durability and long service life.
Yes, we offer custom sizes for Monel K500 Channel to meet specific project needs. Our team at Kunj Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| STANDARD | WERKSTOFF NR. | UNS |
| Monel K500 | 2.4375 | N05500 |
Monel K500 channels are extensively applied in harsh environments with the requirements of strength and corrosion resistance. These environments include marine engineering, offshore oil drilling, chemical processing, and power generation. It is frequently utilized in pump shafts, valve parts, heat exchangers, and fasteners exposed to seawater or acid solutions. The non-magnetic nature of the alloy and stress-corrosion cracking resistance make it particularly useful for precision instruments and electronic applications. In aerospace, Monel K500 channels are appreciated for their long-term durability under high-pressure conditions. Their reliability and extended service life make them an Infrastructure choice in safety-critical applications.
