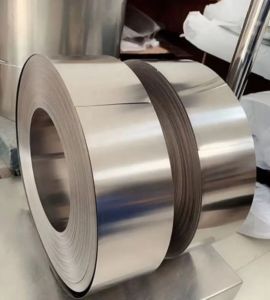

Kunj Sheets and Plates is a trustworthy and established producer and supplier of Monel K500 coils based in Delhi, India. The organization is known for the supply of excellent quality nickel-copper alloy items designed for strength, corrosion resistance, and durability. With improved manufacturing facilities and emphasis on quality control, Kunj produces precision-rolled Monel K500 coils ideal for heavy-use industrial applications. Supported by a robust supply network and technical knowledge, Kunj provides timely delivery and uniform product quality, serving industries such as marine, oil and gas, and chemical processing with reliable and high-performance material solutions.
Monel K500 is a precipitation-hardened alloy consisting of about 63% nickel, 27–33% copper, 2.3–3.15% aluminum, and 0.35–0.85% titanium. It has better mechanical properties than Monel 400, with tensile strength of up to 1100 MPa and yield strength of approximately 790 MPa. It has ductility with elongation of approximately 20%, and toughness even at sub-zero temperatures. Monel K500 coils have good resistance to corrosion in seawater, alkalis, and acidic conditions, and superior stress-corrosion cracking and erosion resistance. This strength and corrosion resistance make them best suited for heavy-duty and corrosive applications.
Specifications : ASTM B127 / ASME SB127
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

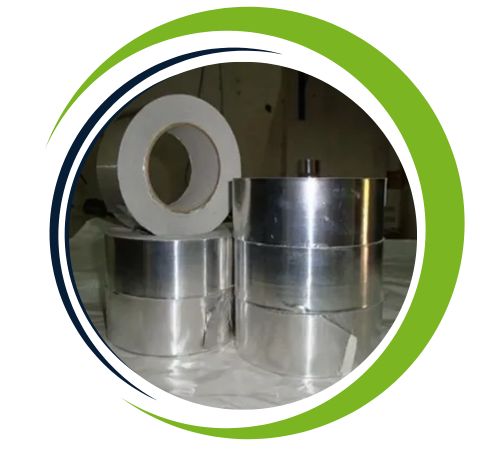

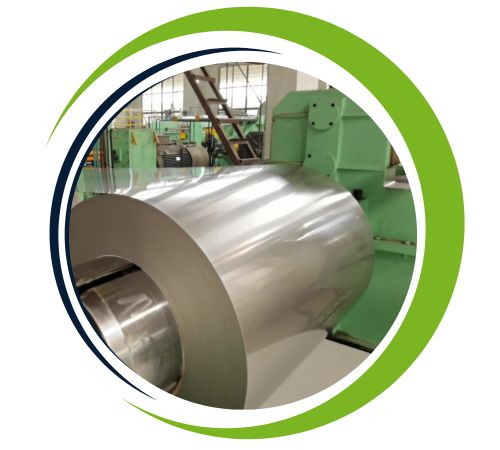

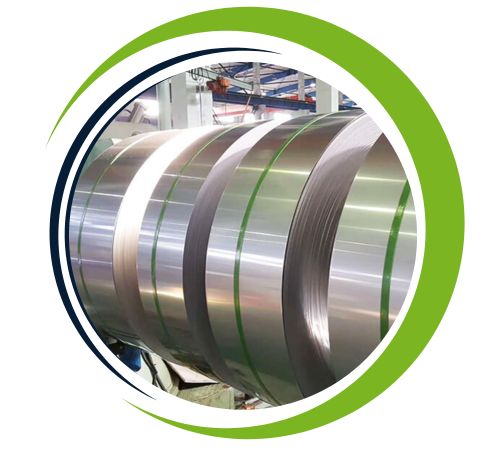

Finish : Hot rolled (HR), Cold rolled coils (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)

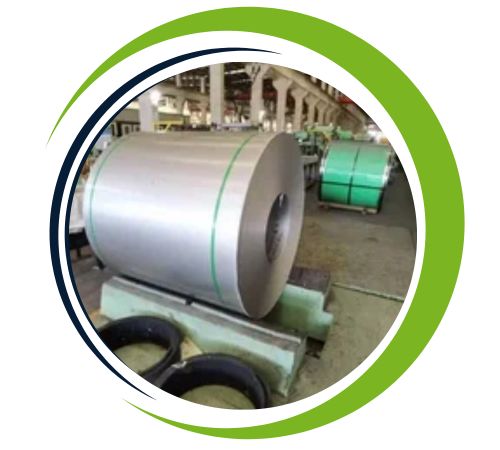

Form : Plain Coils, Shim Coils
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |

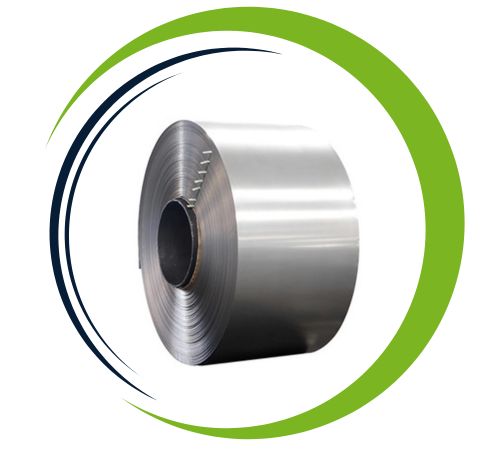

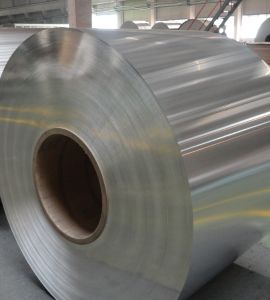

Monel K500 Coil and Slitting Coil offer several advantages, including exceptional corrosion resistance, particularly in seawater and high-temperature environments. They provide excellent mechanical strength and durability, making them suitable for harsh industrial applications. The material’s high resistance to stress-corrosion cracking and superior strength-to-weight ratio ensure reliability and longevity in demanding conditions. Additionally, Monel K500 exhibits good machinability and weldability, enhancing its versatility in various industrial applications.
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | JIS | GOST | BS | EN |
| Monel K500 | 2.4375 | N05500 | – | – | – | – | – |
Monel K500 coils find extensive use in applications where high corrosion resistance and strength are crucial. They find extensive usage in marine environments, such as shipbuilding and offshore oil platforms, based on their superior performance in seawater. They are utilized in chemical and petrochemical industries for pump shafts, valves, and heat exchangers for handling aggressive media. Monel K500 coils are also used in aerospace parts, springs, fasteners, and sensors for precision and endurance. Their magnetic non-susceptibility and durability in high-pressure conditions make them a popular option for critical mechanical and structural systems.
