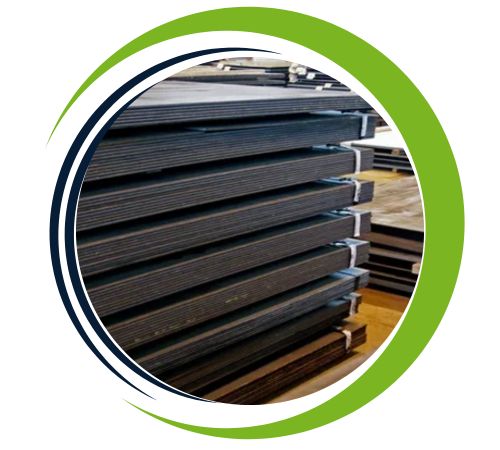

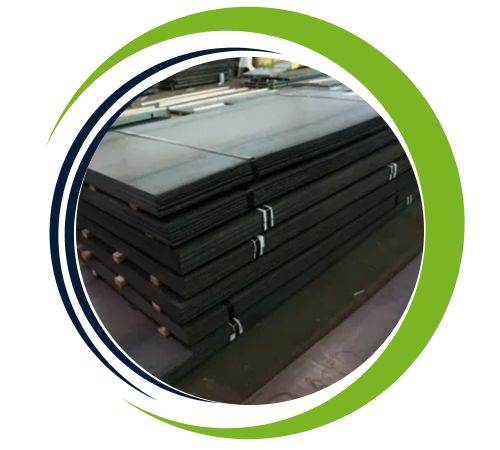

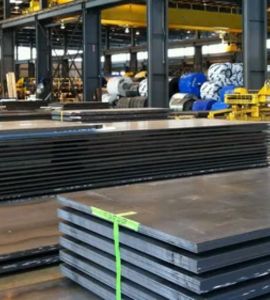

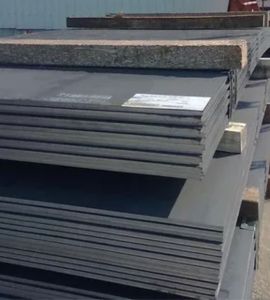

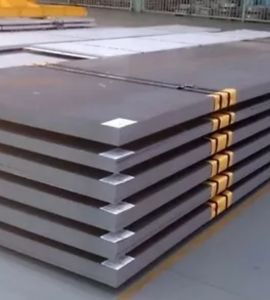

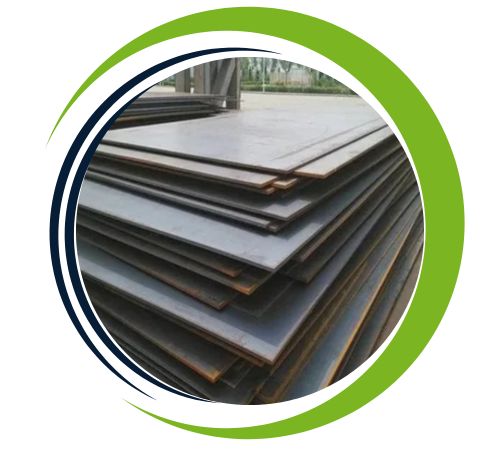

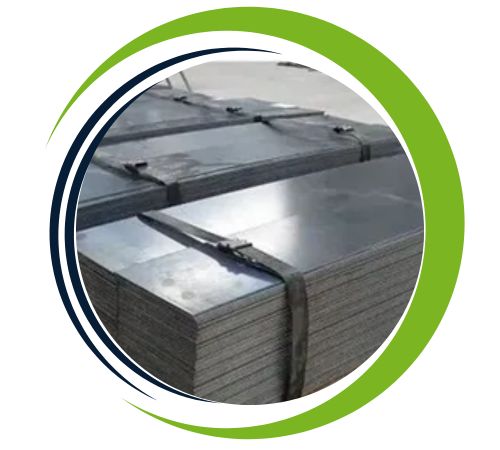

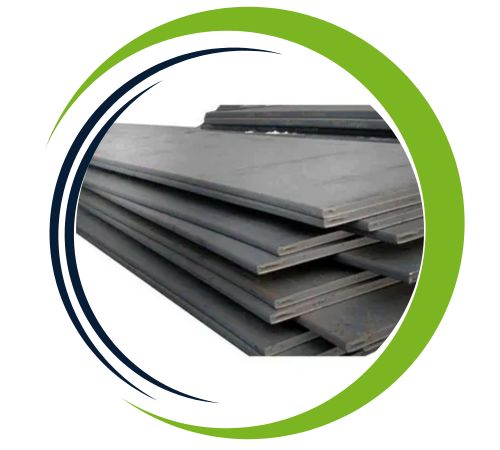

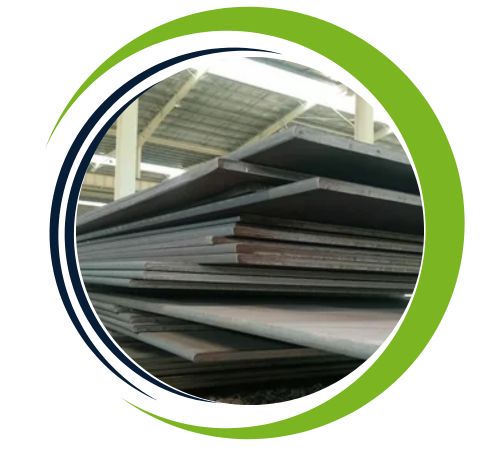

Superior NACE MR 0103/0175 HIC Boiler Sheets and Plates are available from Kunj Sheets and Plates, made to endure severe sour service conditions in the petrochemical, oil and gas sectors. These plates are produced in accordance with the strict NACE requirements for resistance to sulphide stress cracking (SSC) and hydrogen-induced cracking (HIC). Our plates, which are designed for pressure vessels and boilers exposed to environments high in hydrogen sulphide, offer exceptional durability and safety. Precise mechanical performance, chemical integrity, and third-party testing certifications are all guaranteed by Kunj. Our HIC-tested boiler plates satisfy crucial service requirements in chemical processing facilities, offshore platforms, and refineries.
Carbon-manganese steels with low carbon (≤0.18%) and carefully regulated phosphorus, sulphur, and inclusions to stop crack initiation are commonly used for NACE HIC boiler plates. The steel undergoes HIC resistance testing after being normalised or thermally treated for improved microstructure. Mechanical characteristics include a tensile strength of 440–610 MPa and a yield strength of 260–355 MPa. The range of elongation is 20–25%. The plates are thoroughly tested for resistance to laminar tearing, SSC, and hydrogen blistering in wet H₂S environments and satisfy NACE MR0103 and MR0175 standards.
Grade : ASME SA 516 GR.70N Boiler and Pressure Vessel Steel Plates
Width : 1000mm-4500mm
Thickness : 5mm-150mm
Length : 3000mm-18000mm
Supply Condition : As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement.
Impact tested : 52° C
Tempering : Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F.
Applications : Used for weld fabrication of pressure vessels that require improved notch toughness for lower than ambient temperature service.
Process of Manufacturing : Hot-Rolled (HR)
| C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Tensile strength (ksi) | Yield strength (ksi) | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
| 485-620 (70-90) | 260 (38) | 17 | 21 |
| British Standard | European Norm | ASTM/ASME | DIN |
| BS1501-224-490A/B | EN10028 P355GH | A/SA516 – Grade 70 | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
NACE MR 0103/0175 HIC Boiler Sheets and Plates offer exceptional resistance to hydrogen-induced cracking (HIC), making them ideal for high-sulfur environments. They provide superior corrosion resistance, especially in acidic and sulfide-rich conditions, ensuring long-term durability and reliability. These materials also exhibit excellent mechanical properties, such as high tensile strength and toughness, making them suitable for demanding applications in oil and gas, chemical processing, and power generation industries. Their resistance to stress corrosion cracking ensures enhanced performance and longevity in harsh environments.
For locations exposed to sour gas, such as refineries, offshore platforms, oil rigs and gas processing facilities, NACE MR 0103/0175 HIC Boiler Sheets and Plates are crucial. Boilers, storage tanks, separators, pressure vessels, and heat exchangers are all made with them. These plates are also used in desalination plants, ammonia or urea plants, and sour service pipelines where corrosion from hydrogen sulphide is an issue. Critical pressure equipment’s lifecycle is extended and failure risks are greatly decreased when they adhere to NACE standards, which guarantee safe, durable performance in the most demanding chemical and petrochemical environments.
