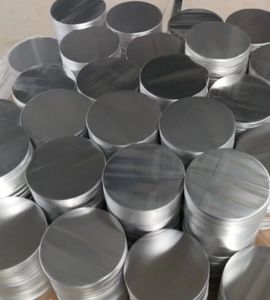

Based in Delhi, India, Kunj Sheets and Plates is a reputable producer and supplier of high-quality Nickel Alloy 200 Circles. Serving a broad range of industries, including chemical processing, electronics, and marine engineering, we are well-known for our precision engineering and dedication to quality. High-grade raw materials are used in the fabrication of our Nickel Alloy 200 Circles to guarantee superior mechanical performance, purity, and resistance to corrosion. We produce goods that satisfy global standards by using sophisticated manufacturing processes and stringent quality control. Kunj promises prompt delivery and reliable quality in each batch of Nickel Alloy 200 products, whether for domestic or international customers.
| Standard | ASTM B162, ASME SB162 |
| Dimensions | ASTM, ASME and API |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Thickness | 1 Mm To 100 mm. |
| Diameter | Upto 2000 Mm. |
| Circle Diameter | 3″ DIA up to 38″ DIA 1500 lbs max. |

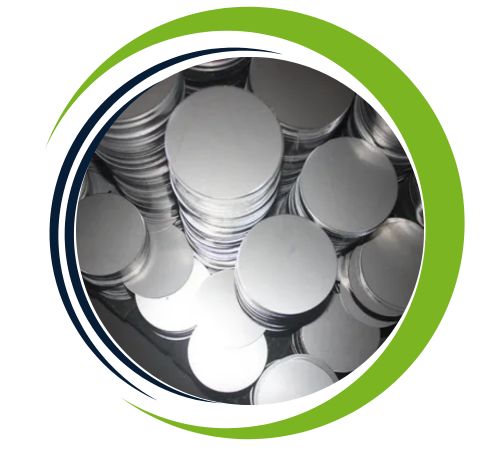

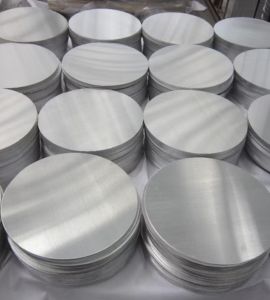

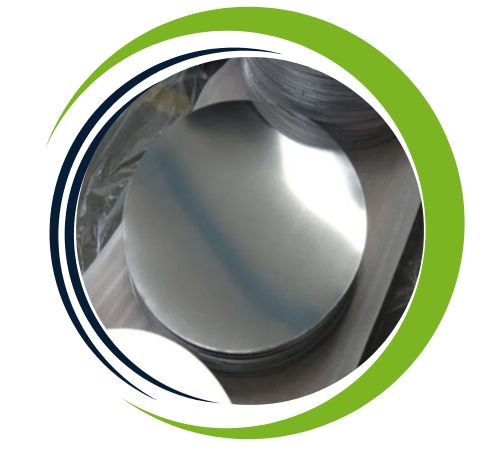

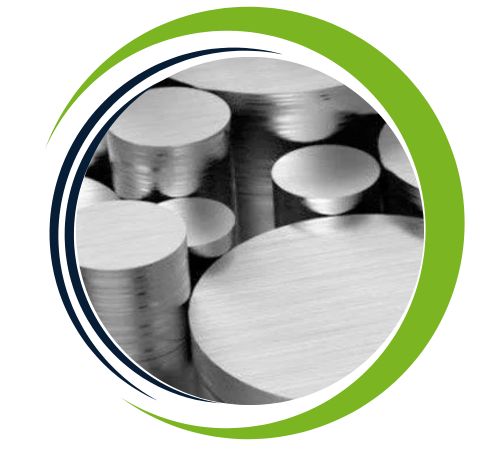

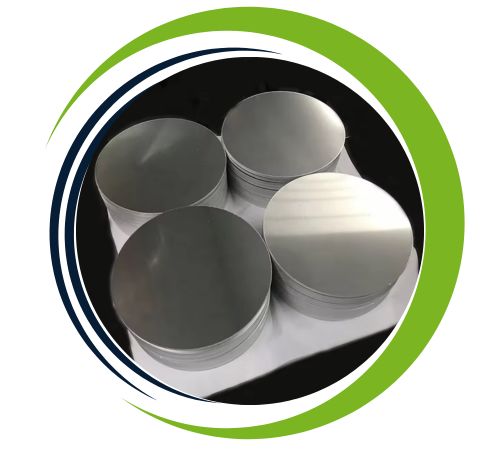

| Circles Form | Cold Rolled, Small Flat, Industrial, Proof Machined, Perforated, Forged Steel, Hot Rolled Circle. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 200 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel Alloy 200 | 2.4066 | N02200 | NW 2200 | NA 11 | НП-2 | N-100M | Ni 99.2 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Size | 18 G. | 19 G. | 20 G. | 22 G. | 24 G. | 26 G. |
| .4.5 | .0-107 | 0-085 | 0-080 | 0-062 | 0.049 | 0-040 |
| 5 | 0-120 | 0-095 | 0-090 | 0-070 | 0-055 | 0-045 |
| 5.5 | 0-146 | 0-119 | 0-109 | 0-085 | 0-066 | 0-054 |
| 6 | 0-172 | 0-136 | 0-130 | 0-100 | 0-079 | 0-064 |
| 6.5 | 0-200 | 0-153 | 0-150 | 0-128 | 0-093 | 0-074 |
| 7 | 0-235 | 0-190 | 0-176 | 0-136 | 0-107 | 0-088 |
| 7.5 | 0.270 | 0.212 | 0.201 | 0-157 | 0-123 | 0-100 |
| 8 | 0-307 | 0-240 | 0-230 | 0-180 | 0-140 | 0-115 |
| 8.5 | 0-347 | 0-270 | 0-262 | 0-202 | 0-156 | 0-130 |
| 9 | 0-388 | 0-330 | 0-301 | 0-230 | 0-178 | 0-145 |
| 9.5 | 0-472 | 0-342 | 0-324 | 0-252 | 0-198 | 0-162 |
| 10 | 0-480 | 0-380 | 0-360 | 0-280 | 0-220 | 0-180 |
| 11 | 0-580 | 0-450 | 0-435 | 0-338 | 0-266 | 0-218 |
| 12 | 0-690 | 0-540 | 0-518 | 0-403 | 0-318 | 0-253 |
| 13 | 0-811 | 0-640 | 0-508 | 0-608 | 0-371 | 0-304 |
| 14 | 0-940 | 0-750 | 0-708 | 0-558 | 0-430 | 0-352 |
| 15 | 1-080 | 0-860 | 0-808 | 0-650 | 0-495 | 0-405 |
| 16 | 1-228 | 0-960 | 0-921 | 0-736 | 0-563 | 0-460 |
| 17 | 1-382 | 1-080 | 0-940 | 0-809 | 0-635 | 0-560 |
| 18 | 1-595 | 1-200 | 1-116 | 0-907 | 0-712 | 0-683 |
| 19 | 1-732 | 1-350 | 1-300 | 1-010 | 0-794 | 0-750 |
| 20 | 1-920 | 1-400 | 1-340 | 1-120 | 0-880 | 0-785 |
Nickel Alloy 200 Circles are widely used in industries requiring excellent corrosion resistance and high purity, such as chemical processing, food handling, synthetic fiber production, and caustic soda manufacturing. Their superior performance in reducing environments makes them suitable for components like gaskets, battery terminals, and heat shields. In electronics, they are used in lead wires and anodes due to their high electrical conductivity. These circles are also found in marine hardware, aerospace components, and nuclear reactors. Whether for structural or functional use, Nickel 200 Circles offer long service life and consistent reliability under challenging operational conditions.
Industries like chemical processing, food handling, the manufacture of synthetic fibres, and the production of caustic soda that demand superior corrosion resistance and high purity frequently use nickel alloy 200 circles. They are appropriate for parts like heat shields, battery terminals, and gaskets due to their exceptional performance in reducing environments. Because of their high electrical conductivity, they are utilised in lead wires and anodes in electronics. Additionally, nuclear reactors, aerospace parts, and marine hardware all contain these circles. Under demanding operating conditions, Nickel 200 Circles provide a long service life and reliable performance, whether for structural or functional applications.
