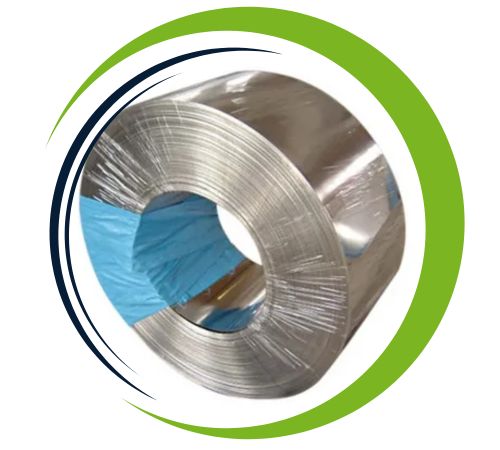

Kunj Sheets and Plates is a well-established manufacturer and supplier of Nickel Alloy 200 foils in Delhi, India, providing high-purity, precision-rolled foils for varied industrial uses. With their superior corrosion resistance, high thermal and electrical conductivity, and mechanical strength, these foils find themselves perfectly suited for conditions requiring purity and performance. Kunj makes sure that every foil has high-quality standards, offering standard as well as customized sizes according to individual client requirements. With prompt delivery, competitive prices, and a dedication to excellence, Kunj Sheets and Plates caters to industries such as electronics, chemical processing, and power generation with premium-grade Nickel 200 foil solutions.
Nickel Alloy 200 foils consist of 99.6% pure nickel and are very resistant to alkalis and neutral salts. They possess good mechanical properties such as a tensile strength of around 55–75 ksi, yield strength of about 25 ksi, and elongation of 40–50%. Nickel 200 shows resistance to toughness and ductility at high as well as sub-zero temperatures. The alloy is not magnetic and has very high thermal and electrical conductivity. It also has good corrosion resistance, particularly in decreasing environments, and can easily be fabricated, welded, and shaped, making it suitable for high-performance industrial and electrical uses.
Specifications : ASTM B168 / ASME SB168
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm
Form : Foils, Rolls
Thickness : 0.1mm to 12 mm Thk
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish : Hot rolled plates (HR), Cold rolled sheets (CR), 2B, 2D, 2BB, BA, NO8, SATIN (MET with Plastic coated)
Other services : Heat treatment, Annealing, Pickling, Polish, Electroplating, Anodizing, Rolling, Cutting, Forging, etc.
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 200 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel 200 | 2.4066 | N02200 | NW 2200 | NA 11 | НП-2 | N-100M | Ni 99.2 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Nickel Alloy 200 foils offer excellent corrosion resistance, especially in alkalis, acids, and various chemicals, making them ideal for harsh environments. Known for their high thermal and electrical conductivity, these foils are widely used in applications like electrical components and heat exchangers. They possess outstanding mechanical properties, including strength and flexibility, allowing easy fabrication. Additionally, Nickel Alloy 200 foils exhibit good weldability and formability, making them suitable for various industrial applications, including aerospace, chemical processing, and marine environments. Their stability at elevated temperatures further enhances their reliability.
Nickel Alloy 200 foils are generally utilized in applications demanding high thermal and electrical conductivity and corrosion resistance. In the electronics sector, they are utilized in battery components, circuit protection, and shielding materials. The chemical processing industry uses them for caustic handling systems, filter elements, and linings of reactors. On account of their purity and chemical stability, they find applications in food processing, the manufacture of synthetic fibers, and aerospace parts. They are useful where precision instrumentation is required as they are non-magnetic. Nickel 200 foils are perfect for applications where purity, performance, and durability are a need.
