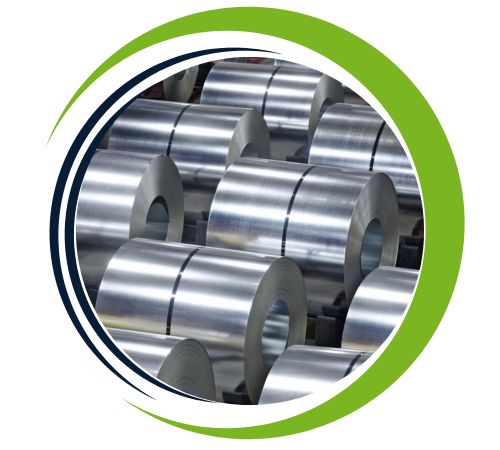

Kunj Sheets and Plates is a top-notch manufacturer and supplier of high-performance Nickel Alloy 201 coils in Delhi, India. Renowned for providing products that are on par with international quality standards, Kunj provides Nickel 201 coils with excellent mechanical properties, superior corrosion resistance, and outstanding thermal and electrical conductivity. These coils are manufactured from low-carbon, commercially pure nickel, which is ideal for use in high-temperature and high-purity applications. With high regard to customer satisfaction, on-time delivery, and customization, Kunj serves different industries such as electronics, chemical processing, pharmaceuticals, and aerospace with reliable and accurately produced Nickel 201 coil solutions.
Nickel Alloy 201 coils consist of around 99.6% pure nickel with a maximum carbon content of 0.02%, preventing graphitization embrittlement at high temperatures. These coils have a tensile strength of 40–65 ksi, yield strength of approximately 15–25 ksi, and elongation between 40–50%, providing superior ductility and toughness. Nickel 201 is not magnetic and provides high electrical and thermal conductivity. Its resistance to corrosive environments, particularly alkaline solutions and neutral salts, along with its thermal stability, make it a trusted material for application in elevated and cryogenic temperature ranges.
| Specification | ASTM B162 / ASME SB 162 |
|---|---|
| Thickness | Plate 0125″ to 5.00″ / Sheets 008″ to .0125″ |
| Sheet / Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheet / Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Sheets Hardness | Half Hard, Quarter Hard, Soft, Hard, Spring Hard |
| Plate / Sheets Size | 15NB to 150NB In |
| Tempers | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Coils Thickness | 0.3 mm to 120 mm |
| Coils Length | AS PER CUSTOMER’S REQUIREMENT |
| Form | Sheets, Plates, Coils, Strips, Circle, Ring, Disc, Foils |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
|---|---|---|---|---|---|---|---|
| Nickel 201 | 0.2 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Grade | Density | Tensile Strength | Yield Strength (0.2%Offset) | Melting Point | Elongation |
|---|---|---|---|---|---|
| Nickel 201 | 8.9 g/cm3 | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 1446 °C (2635 °F) | 45 % |
| STANDARD | UNS | WERKSTOFF NR. | EN | JIS | BS | GOST | AFNOR |
|---|---|---|---|---|---|---|---|
| Nickel 201 | N02201 | 2.4068 | LC Ni 99.2 | NW 2201 | NA 12 | НП-2 | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Steel Coil | Size (mm) | Weight per Coil (Kg) | Size(mm) | Weight per Coil (Kg) |
|---|---|---|---|---|
| Nickel Alloy 201 Coil | 4000 x 2000 x 2.0 | 136.0 | 3000 x 1500 x 5.0 | 191.0 |
| Nickel Alloy 201 Coil | 4000 x 2000 x 3.0 | 204.0 | 4000 x 2000 x 5.0 | 340.0 |
| Nickel Alloy 201 Coil | 2500 x 1250 x 4.0 | 106.0 | 2500 x 1250 x 6.0 | 159.0 |
| Nickel Alloy 201 Coil | 3000 x 1500 x 4.0 | 153.0 | 3000 x 1500 x 6.0 | 230.0 |
| Nickel Alloy 201 Coil | 4000 x 2000 x 4.0 | 272.0 | 4000 x 2000 x 6.0 | 408.0 |
| Nickel Alloy 201 Coil | 2500 x 1250 x 5.0 | 133.0 |
The Nickel Alloy 201 coil/slitting coil has many advantages, including exceptional corrosion resistance, especially in environmental and reducing acidic conditions. Its high nickel content provides durability and long-term performance in harsh environments, including chemical processing and marine environments. The alloy exhibits excellent weldability, formability and machinability, allowing easy manufacture in a variety of shapes and sizes. In addition, it provides strength and stability at elevated temperatures, as well as reliability under stress. Nickel Alloy 201 also provides excellent electrical and thermal conductivity, making it ideal for applications where these properties are important.
Nickel Alloy 201 coils find extensive application in industries necessitating superior corrosion resistance and high purity. They are applied in caustic handling systems, heat exchangers, storage vessels, and processing equipment in the chemical and petrochemical industries. Electronic manufacturers use them for battery terminals, connectors, and EMI shielding because of their conductivity as well as non-magnetic properties. Food processing and synthetic fiber industries employ them for contaminant-free surfaces. Furthermore, the coils are also used in the aerospace, power generation, and marine sectors where reliability and performance are crucial where stability at high temperatures and corrosion resistance are required.
