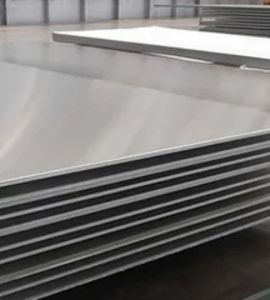

One of Delhi, India’s top producers and distributors of high-performance metal alloys is Kunj Sheets and Plates. We provide products designed to endure harsh environments and demanding applications, with a focus on premium quality Nimonic 75 Sheets and Plates. Our dedication to quality, accuracy, and client satisfaction has made us a reputable brand in the metallurgical sector. Our Nimonic 75 products, which are supported by state-of-the-art technology and stringent quality control procedures, are perfect for the chemical processing, power generation, and aerospace industries. Kunj guarantees prompt delivery and superior quality that satisfies international standards, whether for domestic or foreign needs.
About 80% nickel and 20% chromium make up Nimonic 75 Sheets and Plates, which are nickel-chromium alloys with trace amounts of carbon and titanium added for strength. At high temperatures, these sheets show outstanding resistance to oxidation and scaling. Mechanical characteristics include an approximate elongation of 40%, a yield strength of 275 MPa, and a tensile strength of 760 MPa. They are perfect for heat-resistant applications because they retain mechanical stability up to 1000°C. The alloy is ideal for demanding engineering environments due to its high strength, corrosion resistance, and thermal stability.
| Standards : | BS HR 203, DIN 17750, AECMA PrEN2293, AECMA PrEN2302, AECMA PrEN2411, ISO 6208 |
| Dimensions : | ASTM, ASME, and API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Shims Thickness : | Range from .01″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Plate, Sheet and Strip : | BS HR 203, DIN 17750, AECMA PrEN2293, AECMA PrEN2302, AECMA PrEN2411, ISO 6208 |
| STANDARD | WERKSTOFF NR. | UNS |
| Nimonic 75 | 2.4951 / 2.4630 | N06075 |
| Grade | C | Mn | Si | Cu | Fe | Ni | Cr | Ti |
| Nimonic 75 | 0.08-0.15 | 1.0 max | 1.0 max | 0.5 max | 5.0 max | Bal | 18.0-21.0 | 0.2-0.6 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.37g/cm3 | 1340 – 1380 | Psi – 104,000 | Psi – 40,000 | 42 % |
| Grade | Density | Melting Point |
| Nimonic 75 | 8.4 g/cm3 | 1374°C-1420 °C |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Nimonic 75 sheets and plates offer several advantages, including exceptional high-temperature strength and resistance to oxidation, making them ideal for use in extreme environments. They exhibit excellent creep resistance, ensuring long-lasting performance in high-stress conditions. This alloy maintains its integrity under elevated temperatures, making it widely used in aerospace, gas turbines, and power generation. Additionally, Nimonic 75 demonstrates good weldability and formability, enabling ease of fabrication. Its superior mechanical properties and durability ensure that Nimonic 75 sheets and plates provide reliable performance and longevity in critical applications.
| WEIGHT PER NIMONIC SHEET : | ||||
| THICKNESS IN MM | SIZE IN MM | WEIGHT KG/M2 | ||
| 2000 X 1000 | 2500 X 1250 | 3000 X 1500 | ||
| 0.18 | 2.88 | – | – | 1.44 |
| 0.20 | 3.20 | – | – | 1.60 |
| 0.22 | 3.52 | – | – | 1.76 |
| 0.24 | 3.84 | – | – | 1.92 |
| 0.27 | 4.32 | – | – | 2.16 |
| 0.28 | 4.48 | – | – | 2.24 |
| 0.32 | 5.12 | – | – | 2.56 |
| 0.38 | 6.08 | – | – | 3.04 |
| 0.44 | 7.04 | 11.00 | – | 3.52 |
| 0.50 | 8.00 | 12.50 | – | 4.00 |
| 0.56 | 8.96 | 14.00 | – | 4.48 |
| 0.63 | 10.08 | 15.75 | – | 5.04 |
| 0.75 | 12.00 | 18.75 | – | 6.00 |
| 0.88 | 14.08 | 22.00 | – | 7.04 |
| 1.00 | 16.00 | 25.00 | 36.00 | 8.00 |
| .1.13 | 18.08 | 28.25 | 40.00 | 9.04 |
| 1.25 | 20.00 | 31.25 | 45.00 | 10.00 |
| 1.38 | 22.03 | 34.50 | 50.00 | 72.00 |
| 1.50 | 24.00 | 37.50 | 54.00 | 12.00 |
| 1.75 | 28.00 | 43.75 | 63.00 | 14.00 |
| 2.00 | 32.00 | 50.00 | 72.00 | 16.00 |
| 2.25 | 36.00 | 56.25 | 81.00 | 18.00 |
| 2.50 | 40.00 | 62.50 | 90.00 | 20.00 |
| 2.75 | 44.00 | 68.75 | 99.00 | 22.00 |
| 3.00 | 48.00 | 75.00 | 108.00 | 24.00 |
| 3.25 | 52.00 | 81.25 | 117.00 | 26.00 |
| 3.50 | 56.00 | 87.50 | 126.00 | 28.00 |
| 3.75 | 60.00 | 93.75 | 135.00 | 30.00 |
| 4.00 | 64.00 | 100.00 | 144.00 | 32.00 |
| 4.25 | 68.00 | 106.25 | 153.00 | 34.00 |
| 4.50 | 72.00 | 112.50 | 162.00 | 36.00 |
| 5.00 | 80.00 | 125.00 | 180.00 | 40.00 |
| 5.50 | 88.00 | 137.50 | 198.00 | 44.00 |
| 6.00 | 96.00 | 150.00 | 216.00 | 48.00 |
| 6.50 | 104.00 | 162.50 | 234.00 | 52.00 |
| 7.00 | 112.00 | 175.00 | 252.00 | 56.00 |
| 7.50 | 120.00 | 187.50 | 270.00 | 60.00 |
| 8.00 | 128.00 | 200.00 | 288.00 | 64.00 |
Yes, we offer custom sizes for Nimonic 75 Sheets and Plates to meet specific project needs. Our team at Kunj Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Because of their exceptional thermal and mechanical qualities, Nimonic 75 Sheets and Plates are frequently used in corrosive and high-temperature environments. They are widely used in industrial furnaces, aircraft engine parts, heat exchangers, and gas turbines. They play vital roles in combustion chambers and turbine blades in the power generation sector. The alloy is appropriate for the nuclear and chemical processing industries due to its resistance to oxidation and ability to retain structural integrity under stress. Nimonic 75 meets the demanding requirements of contemporary engineering sectors by ensuring long-lasting performance, dependability, and safety under harsh working conditions in both aerospace and marine applications.
