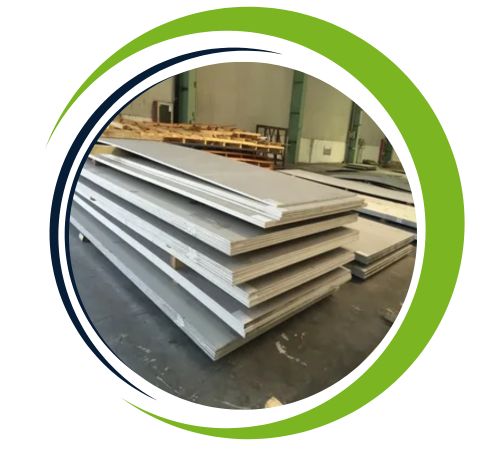

Kunj Sheets and Plates is a leading manufacturer and supplier based in Chennai, India, specializing in high-quality metal products. With a strong focus on precision and reliability, they offer a wide range of sheets and plates, including Nimonic 80A. Nimonic 80A sheets and plates are known for their excellent heat resistance and strength, making them ideal for high-performance applications in industries such as aerospace and gas turbines. Kunj Sheets and Plates ensures top-tier quality and timely delivery for all its products.
Nimonic 80A is a high-performance, nickel-based alloy primarily composed of 75% nickel, 20% chromium, and small amounts of titanium (2.8-3.3%) and aluminum (1.0-1.5%). It also contains iron, cobalt, and other trace elements. This alloy exhibits exceptional heat resistance, oxidation, and corrosion resistance, making it ideal for high-temperature applications. The mechanical properties of Nimonic 80A include a high yield strength of 620 MPa and tensile strength of 1,310 MPa, with good creep and fatigue strength. It is commonly used in turbine engines and aerospace components due to its excellent high-temperature performance.
| Standards : | ASTM B637 / ASME SB637 |
| Dimensions : | ASTM, ASME, and API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Shims Thickness : | Range from .01″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets and Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets and Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Plate, Sheet and Strip : | BS HR 203, DIN 17750, AECMA PrEN2293, AECMA PrEN2302, AECMA PrEN2411, ISO 6208 |
| Grade | Al | B | C | Cr | Co | Cu | Fe | Mn | Ni | P | Si | S |
| Nimonic 80A | 1 – 1.8 | 0.008 max | 0.1 max | 18 – 21 | 0.2 max | 0.2 max | 3 max | 1 max | Balance | 0.045 max | 1 max | 0.015 max |
| Grade | Condition | Ultimate Tensile Strength MPA | Yield Strength MPA | Elongation on 4D (min) | Hardness min |
| Nimonic 80A | Solution Annealed & Precipatation Treated (aged) | 994 | 616 | 20 | 300 HV |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Nimonic 80A sheets and plates offer several advantages, making them ideal for high-performance applications. They provide exceptional heat and oxidation resistance, maintaining strength at elevated temperatures up to 900°C. The alloy’s excellent creep and fatigue resistance ensure long-lasting performance in demanding environments. Nimonic 80A also exhibits superior corrosion resistance, especially in high-temperature and harsh conditions, making it suitable for aerospace, gas turbines, and industrial applications. Its high tensile and yield strength, along with good weldability, enhance its versatility and reliability in critical components subjected to extreme stress.
| WEIGHT PER NIMONIC SHEET : | ||||
| THICKNESS IN MM | SIZE IN MM | WEIGHT KG/M2 | ||
| 2000 X 1000 | 2500 X 1250 | 3000 X 1500 | ||
| 0.18 | 2.88 | – | – | 1.44 |
| 0.20 | 3.20 | – | – | 1.60 |
| 0.22 | 3.52 | – | – | 1.76 |
| 0.24 | 3.84 | – | – | 1.92 |
| 0.27 | 4.32 | – | – | 2.16 |
| 0.28 | 4.48 | – | – | 2.24 |
| 0.32 | 5.12 | – | – | 2.56 |
| 0.38 | 6.08 | – | – | 3.04 |
| 0.44 | 7.04 | 11.00 | – | 3.52 |
| 0.50 | 8.00 | 12.50 | – | 4.00 |
| 0.56 | 8.96 | 14.00 | – | 4.48 |
| 0.63 | 10.08 | 15.75 | – | 5.04 |
| 0.75 | 12.00 | 18.75 | – | 6.00 |
| 0.88 | 14.08 | 22.00 | – | 7.04 |
| 1.00 | 16.00 | 25.00 | 36.00 | 8.00 |
| .1.13 | 18.08 | 28.25 | 40.00 | 9.04 |
| 1.25 | 20.00 | 31.25 | 45.00 | 10.00 |
| 1.38 | 22.03 | 34.50 | 50.00 | 72.00 |
| 1.50 | 24.00 | 37.50 | 54.00 | 12.00 |
| 1.75 | 28.00 | 43.75 | 63.00 | 14.00 |
| 2.00 | 32.00 | 50.00 | 72.00 | 16.00 |
| 2.25 | 36.00 | 56.25 | 81.00 | 18.00 |
| 2.50 | 40.00 | 62.50 | 90.00 | 20.00 |
| 2.75 | 44.00 | 68.75 | 99.00 | 22.00 |
| 3.00 | 48.00 | 75.00 | 108.00 | 24.00 |
| 3.25 | 52.00 | 81.25 | 117.00 | 26.00 |
| 3.50 | 56.00 | 87.50 | 126.00 | 28.00 |
| 3.75 | 60.00 | 93.75 | 135.00 | 30.00 |
| 4.00 | 64.00 | 100.00 | 144.00 | 32.00 |
| 4.25 | 68.00 | 106.25 | 153.00 | 34.00 |
| 4.50 | 72.00 | 112.50 | 162.00 | 36.00 |
| 5.00 | 80.00 | 125.00 | 180.00 | 40.00 |
| 5.50 | 88.00 | 137.50 | 198.00 | 44.00 |
| 6.00 | 96.00 | 150.00 | 216.00 | 48.00 |
| 6.50 | 104.00 | 162.50 | 234.00 | 52.00 |
| 7.00 | 112.00 | 175.00 | 252.00 | 56.00 |
| 7.50 | 120.00 | 187.50 | 270.00 | 60.00 |
| 8.00 | 128.00 | 200.00 | 288.00 | 64.00 |
Yes, we offer custom sizes for Nimonic 80A Sheets and Plates to meet specific project needs. Our team at Kunj Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Nimonic 80A sheets and plates are widely used in high-temperature applications due to their excellent heat, oxidation, and corrosion resistance. They are commonly utilized in the aerospace industry for turbine blades, rotors, and other critical engine components. Additionally, Nimonic 80A is ideal for gas turbines, chemical processing plants, and power generation equipment. Its exceptional strength and resistance to creep and fatigue make it perfect for components exposed to extreme temperatures and stress, such as exhaust systems, combustion chambers, and heat exchangers in industrial sectors.
