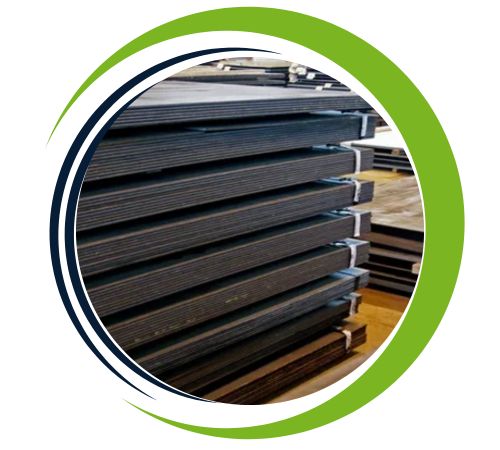

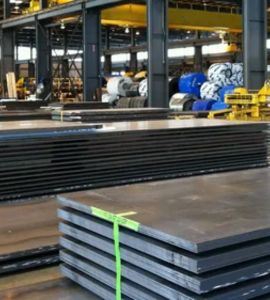

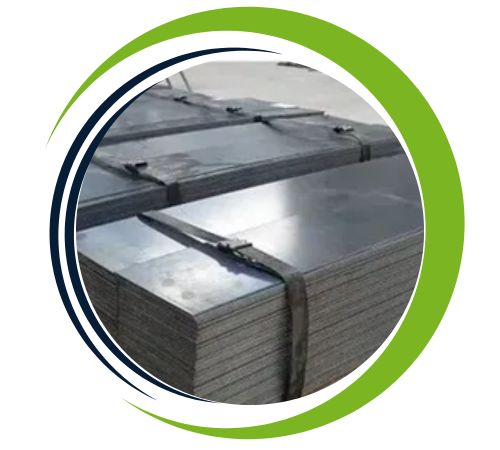

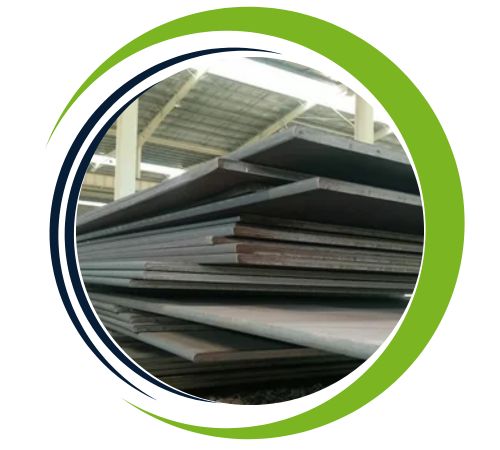

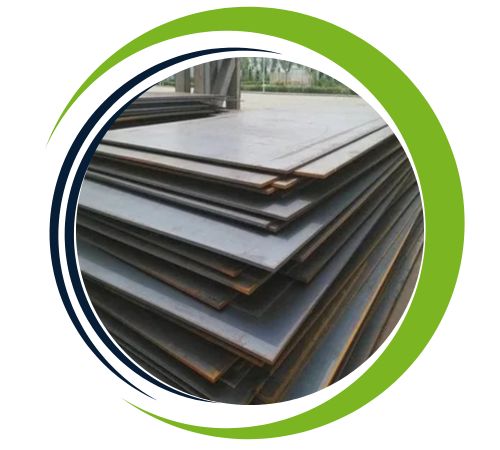

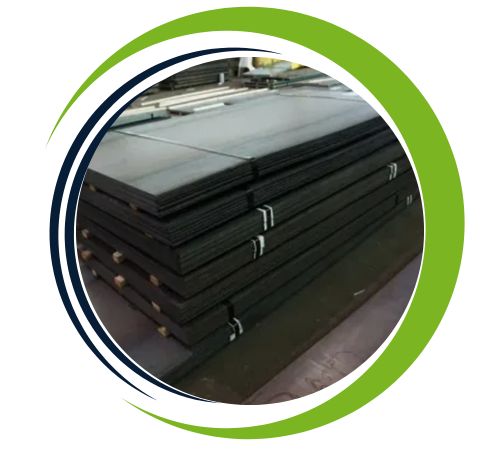

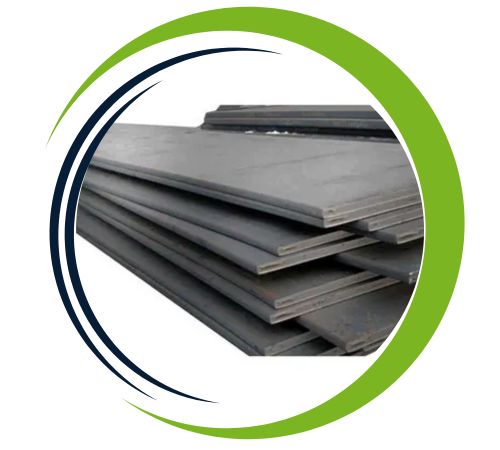

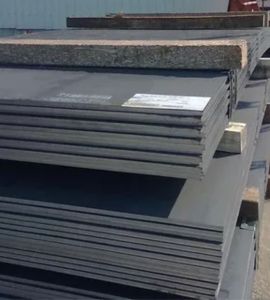

Based in Chennai, India, Kunj Sheets and Plates is a respectable producer and supplier of SA516 Grade 60 Boiler Sheets and Plates, providing premium carbon steel products to industries. These plates are mostly utilised in boilers and pressure vessels that operate at moderate to low temperatures because of their reputation for dependability and consistent performance. With exceptional dimensional accuracy, strength, and weldability, Kunj guarantees that its products satisfy demanding national and international standards. Kunj is a reliable partner for industrial-grade boiler plate needs because of its customer-centric approach, robust logistics network, and service of a variety of industries, including petrochemicals, power generation, and oil and gas.
Carbon steel with a composition of carbon (maximum 0.21%), manganese (0.55–1.00%), phosphorus (maximum 0.035%), and sulphur (maximum 0.035%) is used to make SA516 Grade 60 Boiler Sheets and Plates. With a minimum yield strength of 260 MPa and a minimum tensile strength of 415–550 MPa, the plates provide exceptional notch toughness. SA516 Grade 60 offers strong resistance to brittle fracture and good weldability, making it ideal for moderate and lower temperature service. These plates are perfect for applications requiring pressure retention because they are normalised to improve mechanical qualities.
Grade : ASME SA 516 GR.60 Boiler and Pressure Vessel Steel Plates
Width : 1250mm-3000mm
Thickness : 3mm-600mm
Length : 3000mm-11000mm

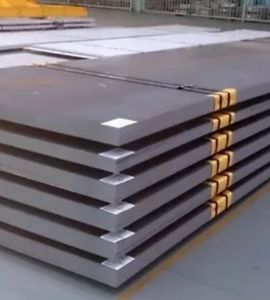

Production : Hot-Rolled (HR)
Heat Treatment : Rolled / Normalised/N+T/QT
| C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Tensile strength (ksi) | Yield strength (ksi) | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
| 485-620 (70-90) | 260 (38) | 17 | 21 |
| British Standard | European Norm | ASTM/ASME | DIN |
| BS1501-161-430A | EN10028 P265GH | A/SA516 – Grade 60 | DIN 17155 HII |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
SA516 Grade 60 boiler sheet and plate offer excellent strength and durability, making them ideal for pressure vessel and boiler applications. Known for their resistance to cracking, they are highly effective in high-temperature and high-pressure environments. The steel’s weldability and ease of fabrication further enhance its versatility. Its ability to withstand moderate to high stress levels without compromising performance makes it suitable for power generation and chemical industries. SA516 Grade 60 also offers good toughness, making it reliable for long-term use in demanding applications.
Industries that need pressure vessels and storage tanks for gases and liquids at moderate and lower temperatures make extensive use of SA516 Grade 60 Boiler Sheets and Plates. Boiler shells, heat exchangers, reactors, separators, and drum-type vessels in refineries, petrochemical plants, and power plants are examples of common applications. They are perfect for both on-site fabrication and in-shop manufacturing because of their exceptional toughness and weldability. They are also appropriate for welded pressure vessels that need to be extremely corrosion-resistant and notch-tough. Additionally, projects requiring cost-effectiveness without sacrificing safety and structural performance under stress favour these plates.
