Shipbuilding Steel Sheet and Plate

Based in Delhi, India, Kunj Sheets and Plates is a well-known producer and supplier of shipbuilding steel sheets and plates. We offer premium marine-grade steel plates that are specifically designed to endure severe maritime conditions, such as high salinity, high humidity, and severe mechanical stress. Our shipbuilding steel plates ensure superior performance in ship construction by meeting international classification standards like ABS, DNV, and Lloyd’s Register. At Kunj Sheets and Plates, we are dedicated to providing shipyards and marine contractors in India and around the world with corrosion-resistant, long-lasting, and highly-strengthened steel sheets designed for offshore platforms, hull fabrication, and naval architecture.

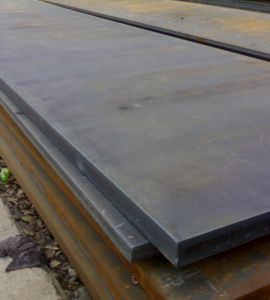

LR Shipbuilding Steel Plate

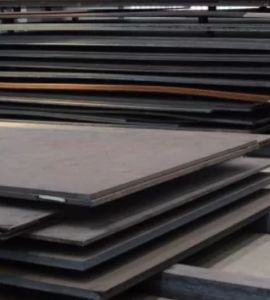

Grade A Shipbuilding Steel Plate

Ship Steel Sheet

Hot Rolled Shipbuilding 12mm Carbon Plate Manufacturer in Chennai, Shipbuilding Sheet Ah40 Marine Grade Steel Plate Chennai, Hot Rolled EH36 Shipbuilding Steel Sheet Supplier in Chennai, 12mm Black Surface Iron Ship Steel Sheet Exporter in India, Shipbuilding Steel Plate EH36 Price List in Chennai, ASTM A131 Shipbuilding Steel Plate Distributor in Chennai, LR Shipbuilding Steel Plate and Sheet Supplier in Chennai, HR Shipbuilding Carbon Plate Distributor in India, DH36 High Strength Shipbuilding Steel Plates Sizes in mm

High-tensile structural steel grades such as AH36, DH36, and EH36 are used in the production of shipbuilding steel sheets and plates. Carbon (≤0.21%), manganese (≤1.70%), silicon, and alloying elements like copper, nickel, and chromium to improve toughness and corrosion resistance are usually included in their chemical composition. These plates have tensile strengths between 400 and 620 MPa, a yield strength between 235 and 355 MPa, and good weldability. They are dependable materials for demanding naval applications because they provide outstanding impact resistance at low temperatures and maintain mechanical integrity under high stress and in corrosive marine environments.

Shipbuilding Steel Sheet and Plate Specification

Weight	Up to 40 ton
Width	1500-4000
Thickness	4-200 mm
grades	EH36, DH36, AH36, DH32, E32, A40, B, EH32, E36, A36, F40, D40, E, AH40, E40, A, A32, DH40, D36, D, AH32, EH40, D32, and their equivalents
Length	Up to 20000
Delivery condition	quenched and tempered, Hot-rolled, normalised rolled or normalised, thermomechanically rolled

Chemical Composition of Ship Steel Plate

Grade	C%≤	Al %	Mn %	p % ≤	S % ≤	Si %	Nb %	V %
D32 A32 E32	0.18	≥0.015	0.70~1.60 0.90~1.60 0.90~1.60	0.04	0.04	0.10~0.50	—	—
A	0.22	—	≥ 2.5C	0.04	0.40	0.10~0.35	—	—
B	0.21	—	0.60~1.00	0.04	0.40	0.10~0.35	—	—
E	0.18	≥0.015	0.70~1.20	0.04	0.04	0.10~0.35	—
D36 A36 E36	0.18	≥0.015	0.70~1.60 0.90~1.60 0.90~1.60	0.04	0.04	0.10~0.50	0.015~0.050	0.030~0.10
D	0.21	≥0.015	0.60~1.00	0.04	0.04	0.10~0.35	—	—

Shipbuilding Steel Plate Mechanical Properties

Grade	Yieldpoint (Mpa) ≥	Tensile Strength (Mpa)	Elongation （%）≥	cold bend test		Thickness (mm)	V-impact test
				b=5a 120°	b=2a 180°		Temperature （℃）	Average AKV A kv /J
								lengthways	crosswise
								≥
A	235	400~490	22	—	d=2a	≤50 mm	—	—	—
B				d=3a	—		0	27	20
D							-10
E							-40
A32	315	440~590	22	d=3a	—	≤50 mm	0	31	22
D32							-20
E32							-40
A36	355	490~620	21	d=3a	—	≤50 mm	0	34	24
D36							-20
E36							-40

Ship Steel Plate Price in India, LR Shipbuilding Steel Plate Weight Chart, Shipyard Steel Plate Supplier in Chennai, Stockist of Hot Rolled Steel Plate A36 in India, Ship Steel Sheet Supplier in India, Cut Length AH36 Ship Steel Plate Price List in Chennai, Grade A Shipbuilding Steel Plate Supplier in India, ASTM AH36 High Strength Shipbuilding Steel Plate Exporter in Chennai, ASTM A131 Grade AH36 Shipbuilding Steel Sheets and Plates Exporter in India, AH36 Hot Rolled Marine Grade Shipbuilding Steel Plates in India

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Shipbuilding Steel Sheet and Plate Manufacturer and Exporter in Chennai, India

Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Ship Steel Plate Size Range

size(mm)						CSA (cm2)	weight (kg/m)
	h	t	r1	b	r	CSA (cm2)	weight (kg/m)
	19	5	4	80	≤1.5	5.41	4.25
	20	6	4	80	≤2	6.21	4.88
	22.5	7	4.5	100	≤2	8.74	6.86
	23.5	8	4.5	100	≤2	9.74	7.65
	23	6	5	120	≤2	9.32	7.32
	24	7				10.52	8.26
	25	8				11.72	9.2
	26	7	5.5	140	≤2	12.43	9.75
	27	8			≤2	13.83	10.85
	29	10			≤3	16.63	13.05
	29	7	6	160	≤2	14.6	11.46
	30	8				16.2	12.72
	31	9				17.8	13.97
	33	11			≤3	21	16.49
	33	8	7	180	≤2	18.86	14.8
	34	9			≤2	20.66	16.22
	35	10			≤3	22.46	17.63
	36	11			≤3	24.26	19.04
	37	9	8	200	≤2	23.66	18.57
	38	10			≤3	25.66	20.14
	39	11				27.66	21.71
	40	12				29.66	23.28
	41	10	9	220	≤3	29.66	22.27
	42	11				29	24.5
	43	12				31.2	26.22
	40	10	10	240	≤3	33.49	25.5
	45	11				34.89	27.39
	46	12				37.29	29.27
	47	10	11	260	≤3	36.11	28.35
	48	11				38.71	30.39
	49	12				41.31	32.43
	51	11	12	280	≤3	42.68	33.5
	52	12				45.48	35.7
	53	13				48.28	37.9
	54	11	13	300	≤3	46.78	36.7
	55	12				49.79	39.09
	56	13				52.79	41.44
	58	12	14	320	≤3	54.25	42.6
	59	13			≤3	57.25	45.09
	60	14			≤4	60.85	47.6
	61	12	15	340	≤3	58.84	46.2
	62	13			≤3	62.24	48.86
	63	14			≤4	65.54	51.5
	66.5	13	16.5	370	≤3	69.7	54.7
	67.5	14			≤4	73.4	57.6
	68.5	15			≤4	77.1	60.5
	72	14	18	400	≤4	81.48	63.96
	73	15				85.48	67.1
	74	16				89.48	70.2
	76.5	14	19.5	430	≤4	89.7	70.6
	77.5	15				94.19	73.9
	79.5	17				102.79	80.7
	81.5	19				111.39	87.4
	82.5	20				115	90.8

Shipbuilding Plate AH36 Dimensional Deviation

nominal thickness（mm）	minus deviation (mm)	The thickness deviation with following width (mm)
nominal thickness（mm）	minus deviation (mm)	> 1500 ~1700	> 1200 ~1500	> 1700 ~1800	> 1000 ~1200	> 1800 ~2000	> 2000 ~2300	> 2300 ~2500	> 2500 ~2600	2600 ~2800	> 2800 ~3000
>12~25 mm	-0.8 mm	+0.3 mm	+0.2 mm	+0.4 mm	+0.2 mm	+0.6 mm	+0.8 mm	+0.8	+1.0	+1.1	+1.2
>25~30 mm	-0.9 mm	+0.3 mm	+0.2 mm	+0.4 mm	+0.2 mm	+0.6 mm	+0.8 mm	+0.9	+1.0	+1.1	+1.2
>30~34 mm	-1.0 mm	+0.3 mm	+0.3 mm	+0.4 mm	+0.2 mm	+0.6 mm	+0.8 mm	+0.9	+1.0	+1.2	+1.3
>34~40 mm	-1.1 mm	+0.5 mm	+0.4 mm	+0.6 mm	+0.3 mm	+0.7 mm	+0.9 mm	+1.0	+1.1	+1.3	+1.4
>40~45 mm	-1.2 mm	+0.6 mm	+0.5 mm	+0.7 mm	+0.4 mm	+0.8 mm	+1.0 mm	+1.1	+1.2	+1.4	+1.

Marine Metal Sheet Grade a AH36 Shipbuilding Steel Plates Distributor in India, LR Shipbuilding Steel Plate Supplier in Chennai, 8mm Thickness Hot Rolled Steel Plates for Shipbuilding, CCS LR Grade A Steel Plates Weight Chart, Low DH36 High Strength Shipbuilding Steel Sheet Exporter in India, Shipbuilding Steel Plate Manufacturer in Chennai, FH36 Grade A Marine Shipbuilding Steel Plates Sizes in mm, Hot Rolled Steel A36 Sheets and Plates India

Shipbuilding Steel Sheet and Plate provide exceptional strength and durability, which is critical to withstanding the harsh elements of the sea. They improve corrosion resistance, extend the life of the container, and reduce maintenance costs. These materials are extremely versatile, contributing to the hull, deck and other important features. With excellent weldability and structural integrity, safety and reliability are ensured under extreme conditions. Additionally, steel plate ships are available in a variety of styles, meeting design and performance requirements. Their low cost and compliance with stringent industry standards makes them indispensable in modern shipbuilding.

Types of Shipbuilding Steel Sheet and Plate

DH40 Marine Grade Ship Steel Plates Dealer in Chennai, CCS LR Grade A Shipbuilding Steel Plates Supplier in Chennai, ASTM A131 Grade AH36 Shipbuilding Steel Sheet and Plates in Chennai, DH36 Shipbuilding Steel Plates Size Chart, AH36 Hot Rolled Marine Grade Shipbuilding Steel Plates Price in India, ASTM A131 High Strength Shipbuilding Steel Plate Stockist in India, Ship Steel Plate Stockist in Chennai, AH36 Steel Plate Supplier in India

Are Custom Sizes Available for Shipbuilding Steel Sheet and Plate?

Yes, we offer custom sizes for Shipbuilding Steel Sheet and Plate to meet specific project needs. Our team at Kunj Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Shipbuilding Steel Sheet and Plate

Ships, barges, marine vessels, offshore platforms, and floating structures are the main applications for shipbuilding steel sheets and plates. They are necessary for the construction of bulkheads, engine rooms, decks, hulls, and superstructures. They are appropriate for both commercial and military vessels due to their high mechanical strength and resistance to corrosion. Additionally, these plates are used in port equipment fabrication, naval refit, and ship repair. Long service life and lower maintenance costs are supported by shipbuilding steels, which are made to withstand the demanding conditions of saltwater, pressure changes, and wave impact.
