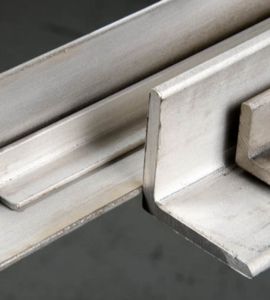

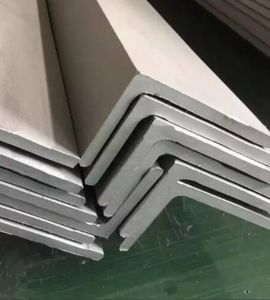

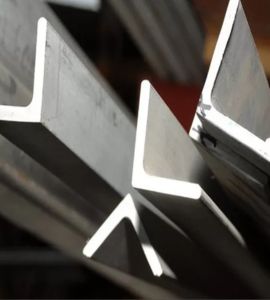

Kunj Sheets and Plates is your go-to manufacturer and supplier of Stainless Steel 201 Angles right here in Chennai, India. SS 201 is an austenitic stainless steel that combines chromium, nickel, and manganese, offering a budget-friendly alternative to the more traditional 300 series stainless steels. It boasts solid mechanical properties, decent corrosion resistance, and fantastic formability. Our SS 201 angles are meticulously crafted to meet a variety of structural and fabrication needs, making them perfect for general construction, architectural frameworks, and light industrial applications. At Kunj, we pride ourselves on delivering consistent quality, precision cutting, and timely delivery to meet the diverse demands of the infrastructure, transportation, and manufacturing sectors.
Stainless Steel 201 Angles typically contain around 16–18% chromium, 3.5–5.5% nickel, and 5.5–7.5% manganese, with a maximum carbon content of 0.15%. This unique blend enhances strength while keeping costs lower than those of higher-nickel alloys. SS 201 offers a tensile strength of about 520 MPa and a yield strength of 275 MPa, ensuring good ductility and workability. It also provides reasonable resistance to corrosion in mildly acidic environments. While it may not be as corrosion-resistant as 304, SS 201 is a great choice for applications where strength, affordability, and formability are key.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 201 Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | C | Mn | Si | P | S | Cr | Ni | N |
| SS 201 | 0.15 max | 5.5 – 7.5 | 100 max | 0.06 max | 0.03 max | 16.00-18.00 | 0.3 – 0.5 | – |
| Temper | Tensile Strength | Yield Strength | Elongation | Rockwell | ||
|---|---|---|---|---|---|---|
| KSi | MPa | KSi | MPa | in 2 inches % | ||
| 1/2 Hard | 150 | -1034 | 110 | -758 | 10 | C-32 |
| 1/4 Hard | 125 | -862 | 75 | -517 | 20 | C-25 |
| 3/4 Hard | 175 | -1207 | 135 | -931 | 7 | C-37 |
| Annealed | 95 | -655 | 45 | -310 | 40 | B-90 max. |
| Full Hard | 185 | -1276 | 140 | -965 | 5 | C-41 |
| STANDARD | UNS | WERKSTOFF NR. |
| SS 201 | S20100 | 1.4372 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 201 Angle provides excellent corrosion resistance, making it ideal for use in light to medium environments. Lightweight yet durable, it provides high stability and system integrity. Its excellent weldability and formability make it easy to manufacture in a variety of configurations. It has excellent oxidation resistance and works well at high temperatures. Affordable compared to other stainless steel grades, it maintains an attractive look with minimal maintenance. Its versatility allows it to be used in construction, automotive, and industrial applications, providing longevity and value.
| Width (mm) | Thickness (mm) | Width (Inches) | Thickness (Inches) |
|---|---|---|---|
| 20 x 20 | 3 to 5 | 3/4″ | 1/8 to 1/4 |
| 25 x 25 | 3 to 5 | 1″ | 1/8 to 1/4 |
| 30 x 30 | 3 to 5 | 1.1/8 | 1/8 to 1/4 |
| 32 x 32 | 3 to 6 | 1.1/4 | 1/8 to 1/4 |
| 35 x 35 | 3 to 6 | 1.3/8 | 1/8 to 1/4 |
| 38 x 38 | 3 to 6 | 1.1/2 | 1/8 to 1/4 |
| 40 x 40 | 3 to 6 | 1.5/8 | 1/8 to 1/4 |
| 45 x 45 | 3 to 6 | 1.3/4 | 1/8 to 1/4 |
| 50 x 50 | 3 to 6 | 2″ | 1/8 to 1/4 |
| 60 x 60 | 5 to 6 | 2.3/8 | 3/16 to 1/4 |
| 65 x 65 | 5 to 6 | 2.1/2 | 3/16 to 1/4 |
| 70 x 70 | 5 to 6 | 2.3/4 | 3/16 to 1/4 |
| 75 x 75 | 5 to 6 | 3″ | 3/16 to 1/4 |
You’ll find Stainless Steel 201 Angles used in a variety of settings, from general structural frameworks and support brackets to railings and equipment frames. Their strength and formability make them ideal for construction, automotive parts, and furniture manufacturing. In architectural projects, SS 201 angles are often used for window frames, doors, and decorative trim, thanks to their aesthetic appeal and moderate corrosion resistance. They also play a role in transportation systems, storage racks, and machinery supports, where being lightweight and cost-effective is essential. SS 201 angles are a reliable and economical choice for both indoor and outdoor applications.
