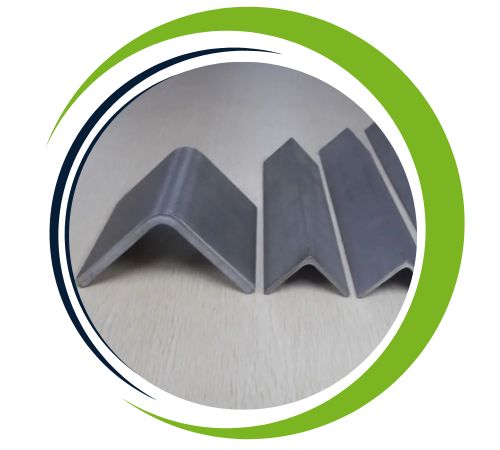

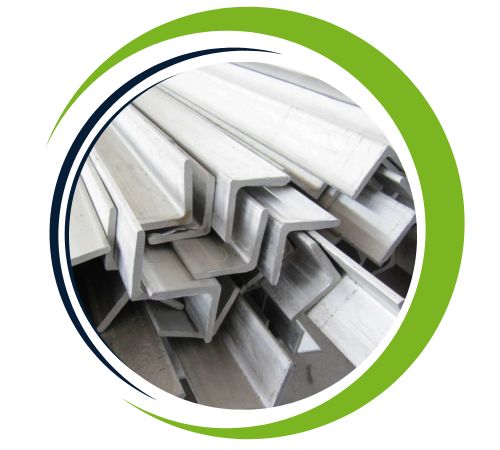

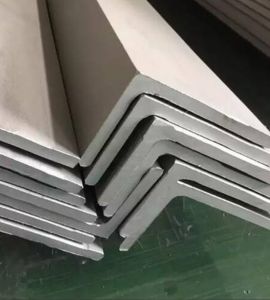

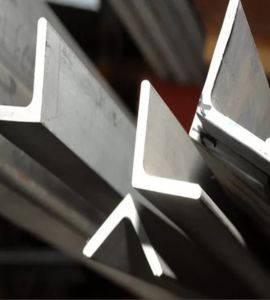

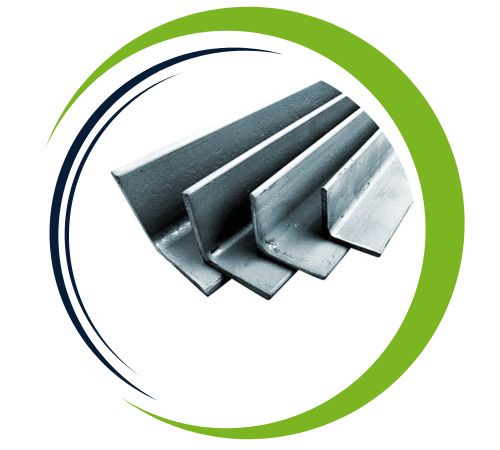

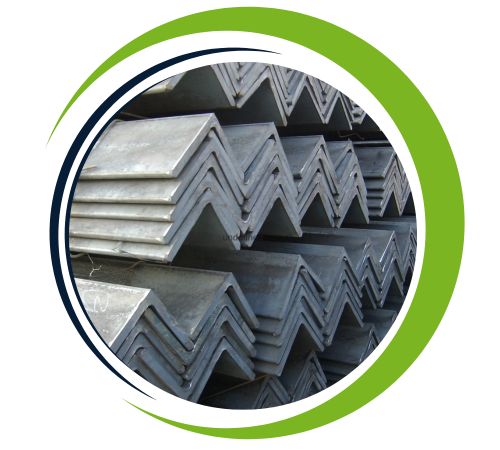

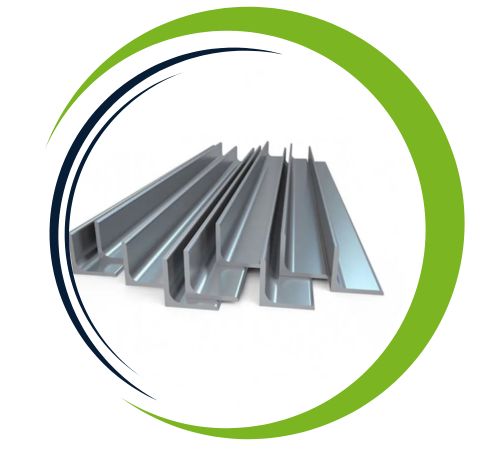

Kunj Sheets and Plates is a reputable manufacturer and supplier of Stainless Steel 202 Angles based in Chennai, India. SS 202 is a chromium-nickel-manganese austenitic stainless steel that offers an excellent combination of strength, affordability, and moderate corrosion resistance. Our SS 202 angles are available in various sizes and thicknesses, engineered for applications requiring structural support and aesthetic appeal. Widely used in construction, furniture, transportation, and architectural projects, these angles are designed to perform well under mechanical stress. Kunj ensures precision manufacturing, timely delivery, and customer-focused service to meet the needs of both domestic and industrial sectors.
Stainless Steel 202 Angles are typically composed of 17–19% chromium, 4–6% nickel, 7.5–10% manganese, and a maximum of 0.15% carbon. This composition enhances mechanical strength and workability while maintaining affordability. SS 202 offers a tensile strength of around 515 MPa and a yield strength of approximately 275 MPa. It has good elongation, moderate corrosion resistance, and excellent toughness at low temperatures. Though it has slightly lower corrosion resistance than SS 304, SS 202 provides an economical and durable option for non-critical structural and decorative applications.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 202 Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade 202 | C | Mn | Si | P | S | Cr | Ni | N |
| max. | 0.15 | 7.50-10 | 1 | 0.060 | 0.030 | 17- 19 | 4-6 | 0.25 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min |
| 202 | 515 | 275 | 40 |
| STANDARD | UNS | WERKSTOFF NR. |
| SS 202 | S20200 | 1.4373 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 202 angle offers many advantages, including excellent corrosion resistance, making it ideal for use in wet and chemical environments It has excellent strength and durability, and ensures performance reliability in construction applications. This alloy is cost-effective compared to higher grades like 304, while still providing high resistance to oxidation and turbidity. Stainless Steel 202 is highly versatile, easy to manufacture and maintain, and provides aesthetic appeal. It is commonly used in the construction, design and construction industry, providing a balance of energy and cost.
| Sizes (all Dimensions in milimeter) | Approx Weight SS Angle Bar (kilogram/meter) | SS 202 Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight SS 202 Angle Bar (kilogram/meter) |
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
Stainless Steel 202 Angles are widely used in structural supports, construction frameworks, furniture fabrication, and interior architecture. Their strength and formability make them ideal for automotive parts, railings, equipment brackets, and storage racks. In the transportation industry, they serve in components exposed to vibration and mechanical load. SS 202 angles are also utilized in railway coaches, trucks, and general fabrication projects, especially where cost-effectiveness is a priority. Though best suited for mildly corrosive environments, they offer a reliable performance-to-price ratio, making them a popular choice in bot
