Because of their exceptional resistance to corrosion and ease of fabrication, stainless steel 304L circles find extensive use. They are frequently employed in the kitchenware industry to produce sink components, cookware and utensils. Because of their hygienic properties, 304L circles are used in tanks, processing vessels, and covers in the chemical and pharmaceutical industries. They are also utilised in heat exchanger components, flanges, gaskets, and architectural elements. They are used in structural elements and engine components in the automotive and aerospace industries. They are perfect for hygienic and high-performance applications because of their formability, durability, and resistance to oxidation.
The austenitic alloy known as stainless steel 304 contains up to 0.08% carbon and roughly 18–20% chromium and 8–10.5% nickel. It provides outstanding resistance to atmospheric conditions, oxidation, and corrosion. The alloy has an elongation of 40%, a yield strength of 205 MPa, and a tensile strength of about 515 MPa. Even at cryogenic temperatures, it maintains good toughness and ductility. Because of these mechanical characteristics as well as its chemical makeup, SS 304 is a great choice for applications requiring strength, corrosion resistance, and durability in a range of settings.
| Specifications | ASTM A240, ASME SA240 |
| Dimensions | ASTM, ASME and API |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Thickness | 1 Mm To 100 mm. |
| Diameter | Upto 2000 Mm. |
| Circle Diameter | 3″ DIA up to 38″ DIA 1500 lbs max. |

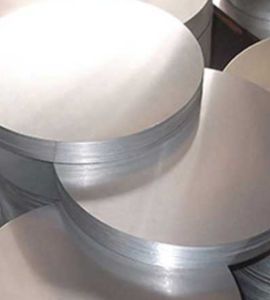

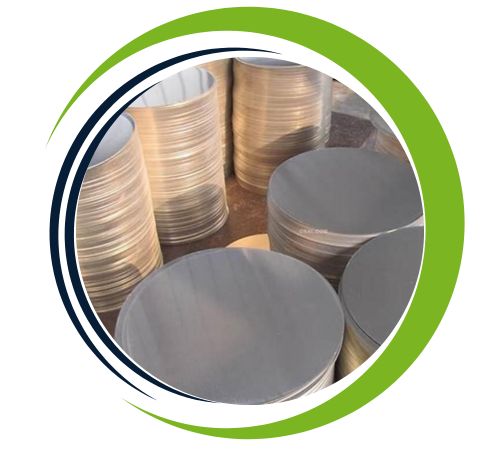

| Circles Form | Hot Rolled Circles, Cold Rolled Circle, Proof Machined Circles. |
| Grade | C | Mn | Si | P | S | Cr | Ni |
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | 8 – 11 |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 304 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| Diameter (mm) | Thickness (mm) | Weight (kg) |
|---|---|---|
| 100 | 1.0 | 0.62 |
| 100 | 2.0 | 1.24 |
| 150 | 1.0 | 1.40 |
| 150 | 2.0 | 2.80 |
| 200 | 1.0 | 2.48 |
| 200 | 2.0 | 4.96 |
| 250 | 1.0 | 3.88 |
| 250 | 2.0 | 7.76 |
| 300 | 1.0 | 5.58 |
| 300 | 2.0 | 11.16 |
| 350 | 1.0 | 7.58 |
| 350 | 2.0 | 15.16 |
| 400 | 1.0 | 9.92 |
| 400 | 2.0 | 19.84 |
| 450 | 1.0 | 12.60 |
| 450 | 2.0 | 25.20 |
| 500 | 1.0 | 15.50 |
| 500 | 2.0 | 31.00 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
The stainless steel 304 circle has several advantages, making it very popular with industries. Its excellent corrosion resistance protects against corrosion and oxidation, providing durability even in harsh environments. The material’s high tensile strength and ductility allows it to withstand mechanical stresses without deformation. It performs well in extreme heat, keeping the structure consistent at both high and low temperatures. Its non-magnetic nature and smooth, polished design make it suitable for a variety of aesthetics and functions. Additionally, they are easy to manufacture, weld and wash, ensuring long-term cost-effectiveness and versatility.
Industries that require strength, corrosion resistance, and hygienic conditions frequently use stainless steel 304 circles. They are used in the production of tanks, processing equipment, and cooking utensils in the food and beverage sector. They are used in the chemical and pharmaceutical industries for storage containers, vessels, and reactors. They are also utilised in structural elements and ornamental panels in architecture. SS 304 Circles are utilised in exhaust systems and trims in the automotive industry. They are perfect for both indoor and outdoor applications in a variety of industrial sectors due to their exceptional formability, weldability, and rust resistance.
