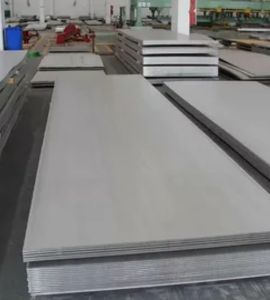

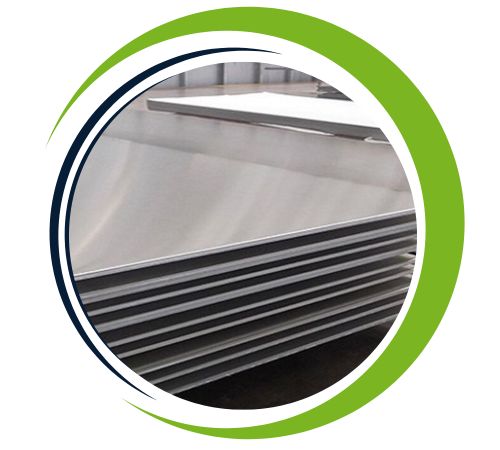

Kunj Sheets and Plates, headquartered in Chennai, India, is a reputable manufacturer and supplier of high-performance Stainless Steel 304H Sheets and Plates. Known for delivering precision-engineered stainless steel products, Kunj serves a wide range of industries including petrochemical, power generation, and construction. Stainless Steel 304H is a high carbon variant of 304, specifically designed for elevated temperature applications requiring superior strength. With advanced manufacturing processes and strict adherence to quality standards, Kunj ensures that its 304H sheets and plates provide excellent performance, durability, and reliability for critical applications across domestic and international markets.
With 18–20% chromium, 8–11% nickel, and 0.04–0.10% carbon, stainless steel 304H is a high-carbon variant of 304. Strength at higher temperatures is improved by this increased carbon content. It has a yield strength of 240 MPa, a tensile strength of about 585 MPa, and an elongation of about 40%. In high-heat settings, 304H maintains its structural integrity while retaining good weldability and exceptional oxidation resistance. Because of these characteristics, it is especially well-suited for applications requiring high pressure and temperature where robustness and thermal stability are essential.
| ASTM Specification | ASTM A240 / ASME SA240 |
|---|---|
| Standard | MSRR, AMS, BS, ASTM A240 / ASME SA240 |
| Length & Sizes | 1000 mm x 2000 mm, 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1250mm x 2500mm, 1500mm x 3000mm to 6000mm, 2000mm x 4000mm to 6000mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 2m, 2.44m, 3m, 36″ X 120″ or 48″ X 144″, 4′ x 8′, Cut to size available |
| Thickness | 0.1mm to 100 mm Thk |
| Width | 10-2500mm |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Temper | Annealed |
| Condition | Polished on both sides |

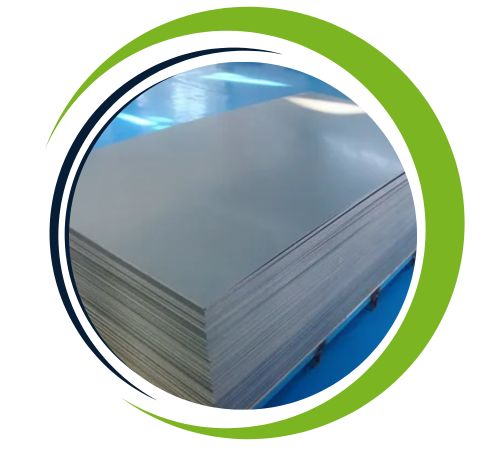

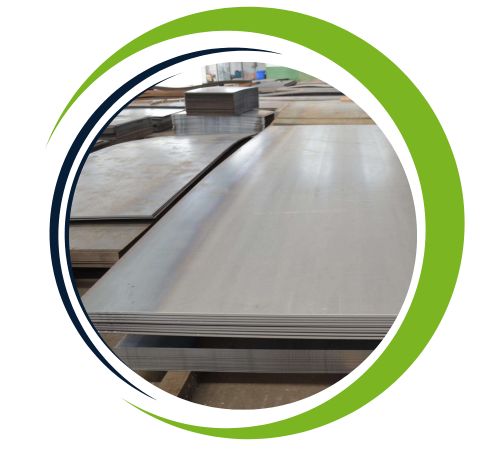

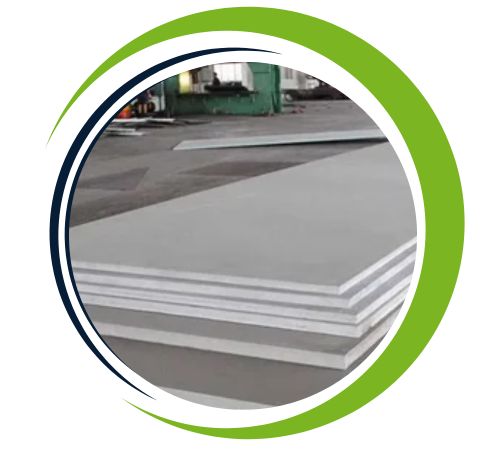

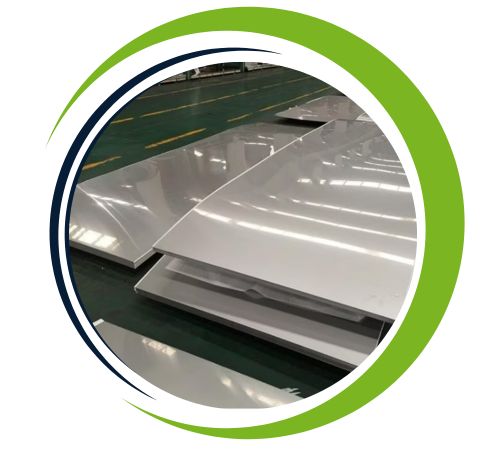

| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

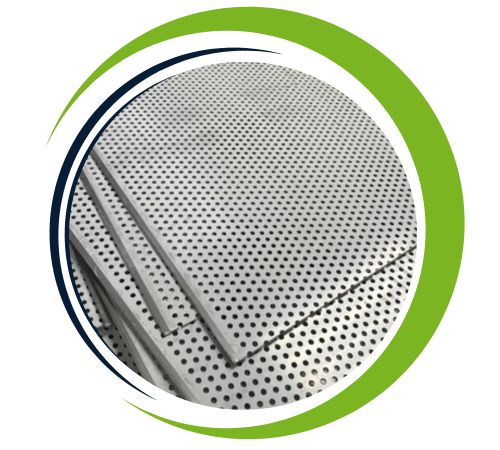

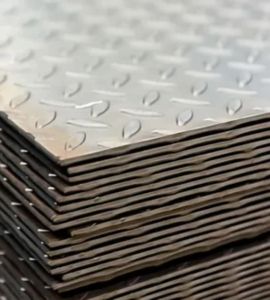

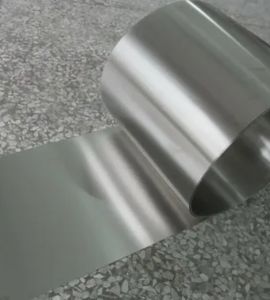

| Stock in form of | Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Dealers & Distributor of | SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material |
| Test Report |
|
| Profiling | To provide a full profiling service we use numerous profiling methods including:
|
| Specialized in |
|
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 10.5 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 304H | 1.4948 | S30409 |
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 304H sheets and plates offer many benefits, including excellent corrosion resistance, making them ideal for harsh environments. Due to their strength and durability, they are well suited for high temperature applications, especially in industries such as fuel and power generation. The material is highly resistant to oxidation and scaling, providing durability and reliability. Their ease of manufacture, form, and weldability allow them to be used in a variety of architectural and industrial applications. In addition, 304H offers excellent resistance to chloride-induced stress corrosion cracking, making it an excellent choice for harsh conditions
304H stainless steel sheets and plates are widely used in corrosive and hot environments. They are perfect for power plant and refinery superheater tubes, boiler parts, pressure vessels, and heat exchangers. Reactors, process equipment, and piping systems in the petrochemical sector are best suited for 304H. It is also used in construction for heat-and stress-exposed structural frameworks. 304H is appropriate for industrial furnaces, kilns, and exhaust manifolds because of its strength and resistance to oxidation. It is also used in food processing equipment, marine hardware, and chemical plants.
