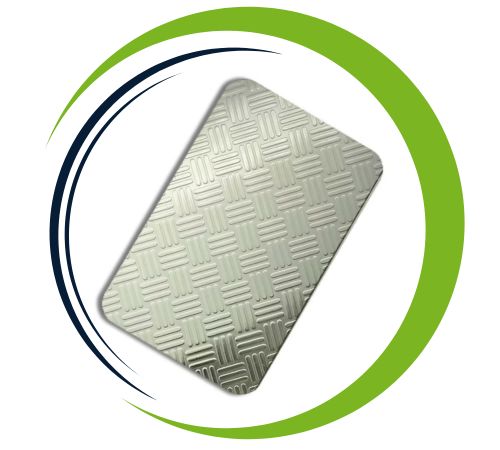

A well-known producer and supplier of stainless steel 305 sheets and plates with headquarters in Delhi, India, Kunj Sheets and Plates is renowned for providing premium stainless steel goods to a range of industrial sectors. Our stainless steel 305 sheets and plates are perfect for cold forming and deep drawing because of their exceptional formability and exceptional resistance to corrosion. Our products are made with high-quality raw materials and cutting-edge technology to satisfy global quality standards. Kunj Sheets and Plates guarantees prompt delivery, affordable prices, and customised solutions for customers throughout India and beyond with a dedication to accuracy, robustness, and client satisfaction.
The austenitic chromium-nickel alloy stainless steel 305 is distinguished by its low work-hardening rate and high nickel content (roughly 12%). Its chemical makeup, which includes about 18% chromium, 12% nickel, and a low carbon content (maximum 0.12%), improves its formability and resistance to corrosion. Mechanical characteristics include a 40% elongation, a yield strength of 241 MPa, and a tensile strength of roughly 586 MPa. This alloy is perfect for deep drawing, stamping, and forming processes where high corrosion resistance is also necessary because it retains good strength and ductility.
| Grades | Stainless Steel J1, J2, J4, 201, 202, 301, 304, 304H, 304L , 309, 309S, 310, 310S, 316, 316L, 316TI, 321, 321H, 347, 409, 410, 410S, 420, 430, 441, 904L |
| Thickness | 0.3mm – 100mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Type of Material | STAINLESS STEEL SOFT, DEEP DRAW, EXTRA DEEP DRAW, QUARTER HARD, HALF HARD, FULL HARD. |

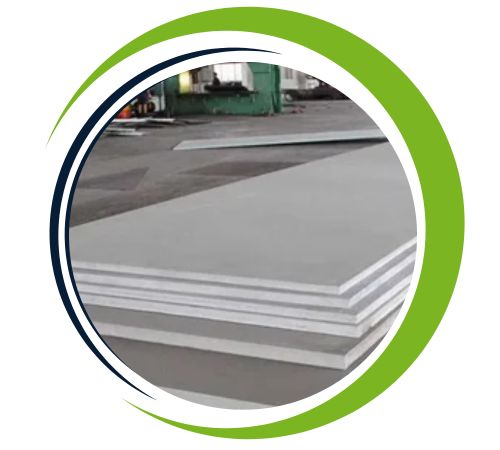

| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), NO.1, 2B, 2D, 2H, 2R, No.4, HAIRLINE, SCOTCH BRITE, SATIN FINISH, NO.8, BA. |

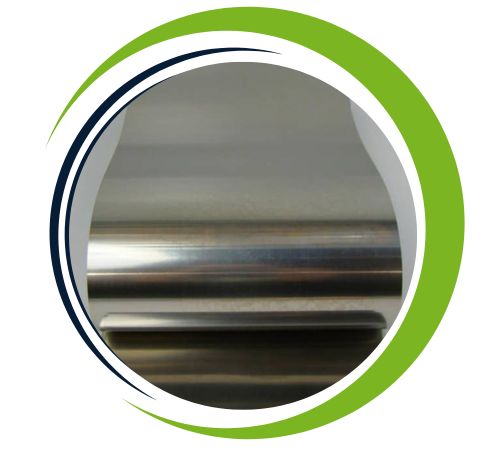

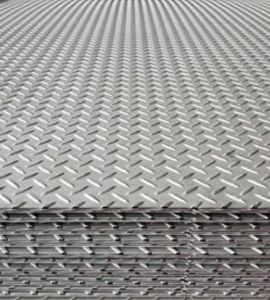

| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Sheets & Plates, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Element | 305 |
| Carbon | 0.12 |
| Chromium | 17.0-19.0 |
| Nickel | 10.5-13.0 |
| Manganese | 2.00 |
| Silicon | 0.75 |
| Phosphorus | 0.045 |
| Sulfur | 0.030 |
| Property | 305 |
| Yield Strength, min. (ksi) | 25 |
| Tensile Strength, min. (ksi) | 70 |
| Elongation, min. (%) | 40 |
| Hardness, max. (Rb) | 88 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

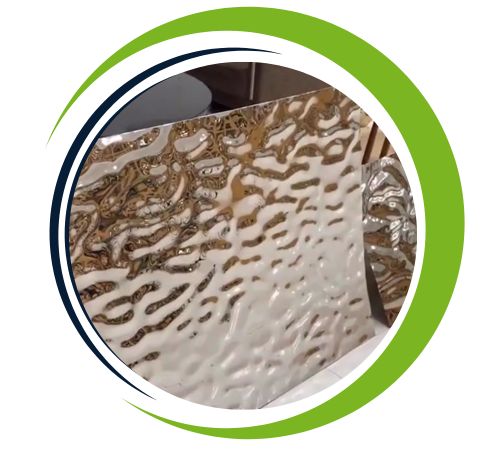

Many industries that demand superior formability and corrosion resistance use stainless steel 305 sheets and plates. Applications like deep drawing kitchen sinks, pans, utensils, and appliance parts are perfect for them. They are also utilised in automotive trim, food processing and pharmaceutical equipment, and decorative architectural elements because of their superior surface finish and non-magnetic nature. The alloy is appropriate for use in electrical enclosures, storage tanks, and marine hardware due to its resistance to mild chemical and atmospheric corrosion. It is a preferred material for precision-formed components in many industries due to its capacity to retain shape under stress.
