Stainless Steel 310H Sheet and Plates

Kunj Sheets and Plates is a reputable manufacturer and supplier of **Stainless Steel 310H Sheets and Plates** based in Chennai, India. SS 310H is a high-carbon variant of grade 310, specifically crafted for high-temperature applications. It boasts remarkable resistance to oxidation and scaling, even during continuous use at elevated temperatures. Our SS 310H sheets and plates are meticulously fabricated to meet the toughest industrial standards, ensuring they deliver high strength, durability, and corrosion resistance. Kunj is dedicated to providing customized solutions for a variety of applications in power plants, furnaces, heat exchangers, and beyond, all supported by dependable quality and prompt customer service.

310H SS HR Plates

310H Stainless Steel Sheet

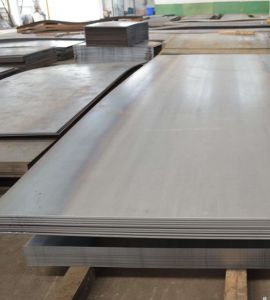

SS 310H Cold Rolled Sheets

ASTM A240 Stainless Steel 310H Sheets Dealer in Chennai, SS 310H Plates Supplier in Chennai, Stainless Steel S31009 Sheets and Plates in Chennai, Stainless Steel Sheets and Plates Size Chart, 310H SS Sheets and Plates Price in India, ASME SA240 SS 310H Plates Supplier in Chennai, 310H Stainless Steel Sheets in India, Stainless Steel 310H Sheet and Plate Supplier in India

Stainless Steel 310H Sheets and Plates** generally consist of 24–26% chromium, 19–22% nickel, and a higher carbon content (0.04–0.10%) compared to standard 310, enhancing creep resistance. This unique composition results in a tensile strength ranging from 515 to 750 MPa and a yield strength of about 205 MPa. SS 310H maintains its strength and corrosion resistance at temperatures reaching up to 1100°C. It also demonstrates good ductility and weldability. This material is particularly effective in oxidizing environments, making it perfect for high-temperature structural applications where thermal stability and longevity are essential.

Stainless Steel 310H Sheet and Plates Specification

Specifications	ASTM A240 / ASME SA240
Width	1000mm / 1219mm /1250mm / 1500mm / 2000mm
Length	2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm
Thickness	0.1mm to 12 mm Thk
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form	Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc.

SS 310H Sheets and Plates Chemical Composition

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
310H	min.	0.04	–	–	–	–	24.0	–	19.0	–
310H	max.	0.10	2.0	1.00	0.045	0.03	26.0	–	21.0	–

SS 310H Sheets and Plates Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
310H	515	205	40	95	217

Equivalent Grades of A240 Stainless Steel 310H Sheets and Plates

Grade	UNS No	Old British		Euronorm		Swedish SS	Japanese JIS
		BS	En	No	Name
310H	S31009	–	–	–	–	–	–

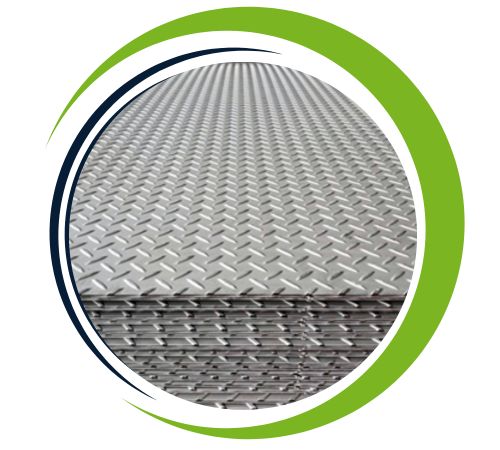

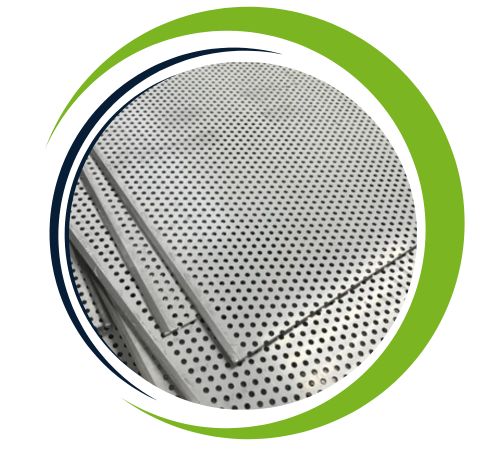

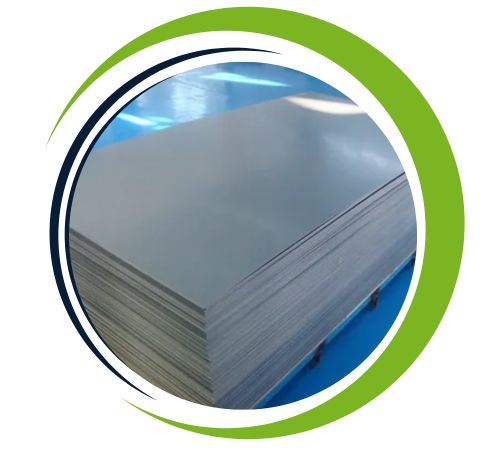

310H Stainless Steel Hot Rolled Sheets Price in India, Stainless Steel 310H Shim Sheets Weight Chart, SS 310H Perforated Sheets Supplier in Chennai, Stockist of SUS 310H Sheets and Plates in India, 310H SS Cold Rolled Sheets Supplier in India, 310H SS Cold Drawn Plates Price List in Chennai, SS 310H Chequered Plates Supplier in India, Stainless Steel 310H Chequered Plates Exporter in Chennai, Stainless Steel Plates Exporter in India, Stainless Steel Sheet 310H 2b Finish Exporter in Chennai

Dimensions Standard of 310H Stainless Steel Sheets and Plates

Material	Size	Thickness
PLATES & SHEETS	1000 mm x 2000 mm	0.1mm To 100 mm Thickness
	1220 mm x 2440 mm (4′ x 8′)
	1250 mm x 2500 mm
	1500 mm x 3000 mm
	2000 mm x 4000 mm
	2000 mm x 2000 mm

SS 310H Sheets and Plate Standard Size Chart

2000MM X 1000MM X 3MM	2000MM X 1000MM X 6MM
2500MM X 1250MM X 4MM	2500MM X 1250MM X 8MM
3000MM X 1500MM X 3MM	3000MM X 1500MM X 6MM
3000MM X 1500MM X 4MM	3000MM X 1500MM X 8MM
2000MM X 1000MM X 5MM	2500MM X 1250MM X 10MM
2500MM X 1250MM X 3MM	2500MM X 1250MM X 6MM
4000MM X 2000MM X 3MM	4000MM X 2000MM X 6MM
2500MM X 1250MM X 5MM	3000MM X 1500MM X 10MM
2000MM X 1000MM X 4MM	2000MM X 1000MM X 8MM
4000MM X 2000MM X 4MM	2000MM X 2000MM X 10MM
3000MM X 1500MM X 5MM

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Stainless Steel 310H Sheet and Plates Manufacturer and Exporter in Chennai, India

Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

UNS S31009 Stainless Steel Sheets Distributor in India, SS 310H Plates Supplier in Chennai, Stainless Steel 310H Sheets Weight Chart, 310H Stainless Steel Hot Rolled Sheets Exporter in India, Stainless Steel 310H Shim Sheets Manufacturer in Chennai, SS 310H Chequered Plates Price List in Chennai, 310H Stainless Steel Sheets Sizes in mm, Stainless Steel Sheet 310H 2b Finish Distributor in Chennai, Stainless Steel 310H Sheets and Plates Exporter in India

Types of Stainless Steel 310H Sheet and Plates

BA Finish Stainless Steel 310H Plates in Chennai, UNS S31009 SS Sheets Chennai, , SUS 310H Sheets and Plates Supplier in Chennai, 310H SS Perforated Sheets Exporter in India, SS Perforated Sheets Price List in Chennai, SS 310H Sheets Distributor in Chennai, ASME SA 240 Stainless Steel 310H Sheets Supplier in Chennai, 310H SS Sheet and Plate Distributor in India, Stainless Steel 310H Shim Sheets Sizes in mm

Are Custom Sizes Available for Stainless Steel 310H Sheet and Plates?

Yes, we offer custom sizes for Stainless Steel 310H Sheet and Plates to meet specific project needs. Our team at Kunj Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@kunjsheetsandplates.co.in.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Stainless Steel 310H Sheet and Plates

Stainless Steel 310H Sheets and Plates find extensive use in high-temperature settings like furnace components, heat exchangers, and kiln liners due to their outstanding oxidation resistance. In the petrochemical and power generation sectors, they are employed in boiler parts, superheater tubes, and combustion chambers. SS 310H is also well-suited for thermal processing equipment, fluidized bed combustors, and gas turbines. Its impressive creep strength and durability make it ideal for continuous exposure to extreme heat. Additionally, this grade is utilized in the chemical processing and refining industries, where high strength and corrosion resistance are vital.
