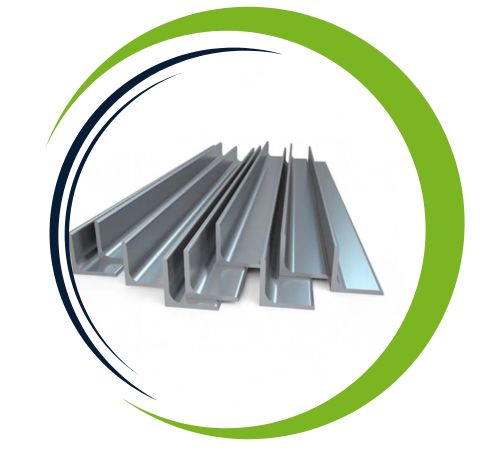

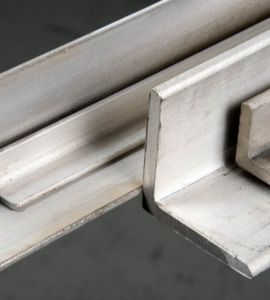

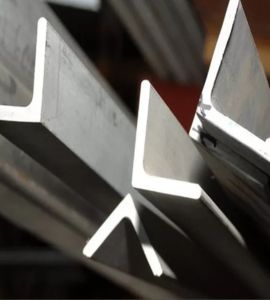

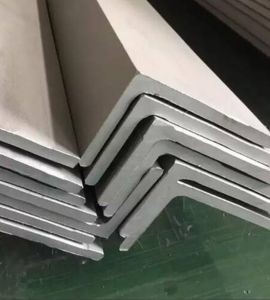

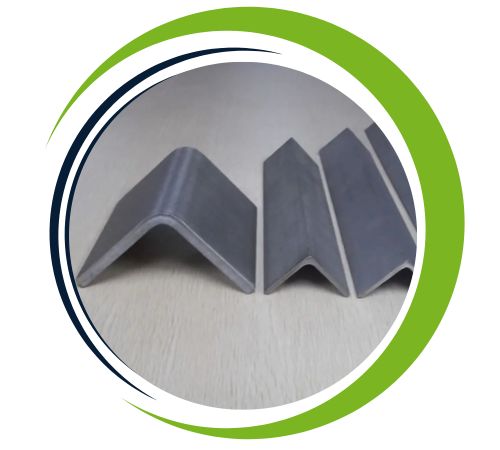

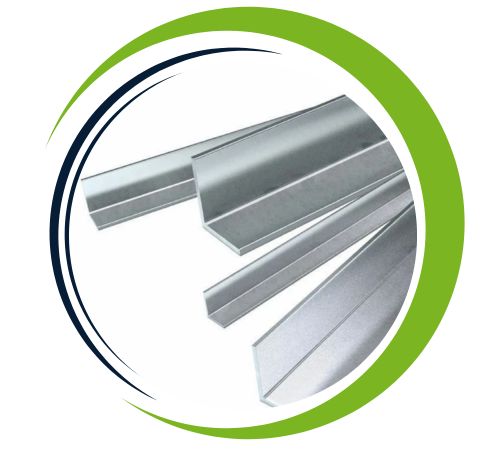

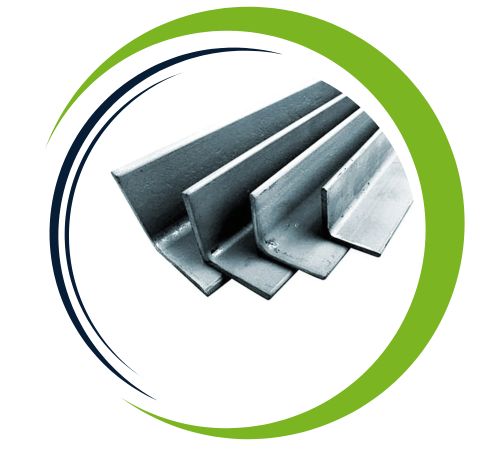

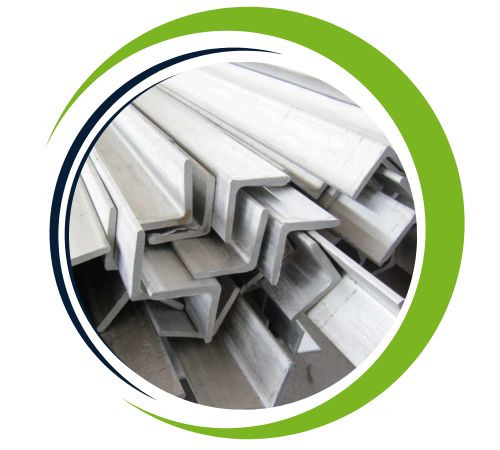

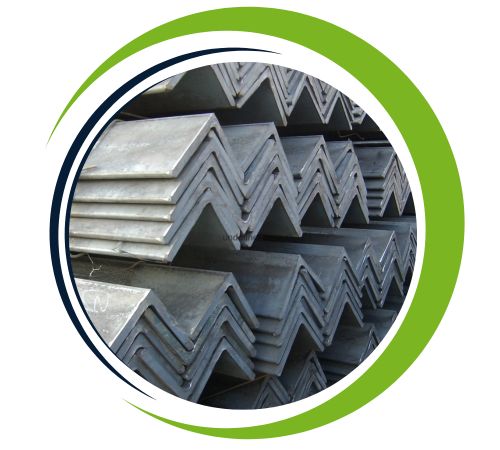

Kunj Sheets and Plates is a premier manufacturer and supplier of Stainless Steel 316 angles in Delhi, India, delivering premium structural solutions for processes that necessitate superior corrosion resistance and strength. Our SS 316 angles are carefully produced using high-grade raw materials, thus suitable for marine, chemical, pharmaceutical, and food processing sectors. These angles provide great formability, weldability, and resistance to aggressive environments, particularly those containing chlorides and acidic constituents. We supply SS 316 angles in different sizes and finishes to ensure strength, durability, and accordance with international quality standards.
Stainless Steel 316 is an austenitic chromium-nickel-molybdenum alloy with about 16–18% Chromium, 10–14% Nickel, and 2–3% Molybdenum. It has superior corrosion resistance against chlorides, seawater, and acidic chemicals. It possesses a tensile strength of about 515–690 MPa and superior mechanical properties at both low and elevated temperatures. SS 316 is non-magnetic in the annealed condition and has good creep, stress-to-rupture, and tensile strength at high temperatures.
| Standard | ASME, ASTM, EN, BS, GB, DIN, JIS, etc |
| Size | 3/4″ THRU 8″ |
| Thickness | 1/8″ thru 5/8″ |
| Type | Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled |
| Grades | 304/304L/304H/310S/316/316L/316H/316TI/317/317L/321/321H/904L |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| SS 316Ti | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316Ti | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless steel 316 angle provides excellent resistance to corrosion, especially in harsh environments such as marine and chemical conditions, and the molybdenum content gives it excellent strength and durability, allowing it to operate even at elevated temperatures in. This alloy provides excellent weldability and formability, making it suitable for complex structural applications. Additionally, the stainless steel 316 surface is low maintenance, resists pitting, cracking and corrosion, and is very resistant to oxidation. These properties make it ideal for use in industries such as pharmaceuticals, food processing and manufacturing.
| THICKNESS | ||||||
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
Stainless Steel 316 angles find extensive application in industries where resistance to corrosion and harsh environments is demanded. Common uses are marine apparatus, offshore and coastal structures, chemical processing facilities, pharmaceutical machinery, food and drink equipment, and architectural structures. Stainless Steel 316 angles find application in support frames, braces, enclosures, and reinforcement parts where both structural integrity and resistance to chemicals are needed. SS 316 angles give a long lifespan, lower maintenance, and maximum performance in corrosive and high-humidity environments.
