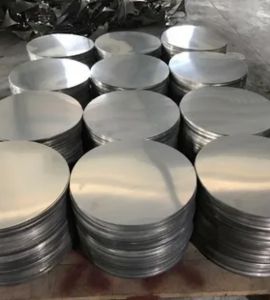

Kunj Sheets and Plates stands out as a leading manufacturer and supplier of Stainless Steel 316 Circles right in Chennai, India. SS 316 is a type of austenitic stainless steel that contains molybdenum, making it particularly known for its impressive resistance to corrosion, especially in environments rich in chlorides and acids. Our SS 316 circles are crafted with precision to meet the highest industry standards, ensuring they offer remarkable strength, durability, and resistance to pitting and crevice corrosion. With a range of sizes and thicknesses available, these circles are perfect for use in the chemical, marine, pharmaceutical, and food processing sectors. At Kunj, we pride ourselves on delivering consistent quality, timely shipments, and customized solutions that cater to our clients’ specific needs.
Typically, Stainless Steel 316 Circles are made up of 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, which significantly boosts their corrosion resistance in tough environments. This alloy boasts a tensile strength of about 515 MPa and a yield strength of 205 MPa, along with excellent ductility and toughness, even in cryogenic conditions. SS 316 circles are also known for their strong weldability and formability, making them a great choice for fabrication. The added molybdenum enhances their resistance to pitting, particularly in saltwater and chemical processing scenarios, ensuring they remain durable and perform well under challenging conditions.
| Standard | ASTM A240, ASME SA240 |
| Dimensions | ASTM, ASME and API |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Thickness | 1 Mm To 100 mm. |
| Diameter | Upto 2000 Mm. |
| Circle Diameter | 3″ DIA up to 38″ DIA 1500 lbs max. |
| Circles Form | Cold Rolled, Small Flat, Industrial, Proof Machined, Perforated, Forged Steel, Cnc Finish, Polished Unique, Hot Rolled Circle.. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| Grades | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| Size | 18 G. | 19 G. | 20 G. | 22 G. | 24 G. | 26 G. |
| .4.5 | .0-107 | 0-085 | 0-080 | 0-062 | 0.049 | 0-040 |
| 5 | 0-120 | 0-095 | 0-090 | 0-070 | 0-055 | 0-045 |
| 5.5 | 0-146 | 0-119 | 0-109 | 0-085 | 0-066 | 0-054 |
| 6 | 0-172 | 0-136 | 0-130 | 0-100 | 0-079 | 0-064 |
| 6.5 | 0-200 | 0-153 | 0-150 | 0-128 | 0-093 | 0-074 |
| 7 | 0-235 | 0-190 | 0-176 | 0-136 | 0-107 | 0-088 |
| 7.5 | 0.270 | 0.212 | 0.201 | 0-157 | 0-123 | 0-100 |
| 8 | 0-307 | 0-240 | 0-230 | 0-180 | 0-140 | 0-115 |
| 8.5 | 0-347 | 0-270 | 0-262 | 0-202 | 0-156 | 0-130 |
| 9 | 0-388 | 0-330 | 0-301 | 0-230 | 0-178 | 0-145 |
| 9.5 | 0-472 | 0-342 | 0-324 | 0-252 | 0-198 | 0-162 |
| 10 | 0-480 | 0-380 | 0-360 | 0-280 | 0-220 | 0-180 |
| 11 | 0-580 | 0-450 | 0-435 | 0-338 | 0-266 | 0-218 |
| 12 | 0-690 | 0-540 | 0-518 | 0-403 | 0-318 | 0-253 |
| 13 | 0-811 | 0-640 | 0-508 | 0-608 | 0-371 | 0-304 |
| 14 | 0-940 | 0-750 | 0-708 | 0-558 | 0-430 | 0-352 |
| 15 | 1-080 | 0-860 | 0-808 | 0-650 | 0-495 | 0-405 |
| 16 | 1-228 | 0-960 | 0-921 | 0-736 | 0-563 | 0-460 |
| 17 | 1-382 | 1-080 | 0-940 | 0-809 | 0-635 | 0-560 |
| 18 | 1-595 | 1-200 | 1-116 | 0-907 | 0-712 | 0-683 |
| 19 | 1-732 | 1-350 | 1-300 | 1-010 | 0-794 | 0-750 |
| 20 | 1-920 | 1-400 | 1-340 | 1-120 | 0-880 | 0-785 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
You’ll find Stainless Steel 316 Circles widely used in chemical processing, marine settings, and pharmaceutical equipment, thanks to their exceptional resistance to corrosion and chemical attacks. They’re perfect for flanges, valves, gaskets, seals, and tank heads where both durability and hygiene are essential. In the food and beverage industry, SS 316 circles are the go-to choice for equipment and containers because of their non-reactive surface and ease of cleaning. Plus, they’re utilized in heat exchangers, medical devices, and architectural components, providing reliability in both structural and functional applications that face harsh environments.
