One of the top producers and suppliers of premium-grade stainless steel 316 foils is Kunj Sheets and Plates, which has its headquarters in Chennai, India. The company, which is well-known for its dedication to quality, accuracy, and client satisfaction, provides stainless steel solutions that satisfy the needs of numerous high-performance industries. Kunj’s stainless steel 316 foils provide remarkable corrosion resistance, especially in acidic and chloride-rich environments. Durability, flexibility, and superior surface finish are guaranteed by the use of cutting-edge technology and strict quality standards in the manufacturing of these foils. Kunj Sheets and Plates provides dependable and specialised foil solutions to the food, pharmaceutical, chemical processing, and marine industries.
With a low carbon content, stainless steel 316 foils are made up of roughly 16–18% chromium, 10–14% nickel, and 2-3% molybdenum. Molybdenum improves resistance to pitting and crevice corrosion, particularly in environments with chloride. This alloy has an approximate elongation of 40%, a yield strength of 205 MPa, and a tensile strength of 515 MPa. Excellent toughness, ductility, and formability are provided by its austenitic structure. Stainless steel 316 is a popular option for applications needing strength and exceptional corrosion resistance because it retains its mechanical qualities even in highly moist or acidic environments.

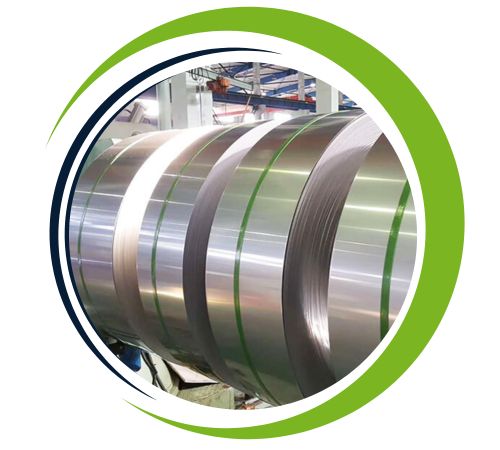

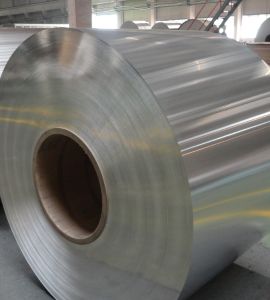

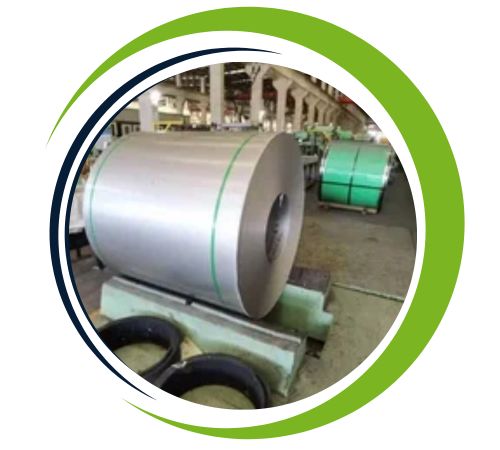

| Item | Stainless Steel 316 foil(Hot rolled, cold rolled) | |
| Thickness | 0.025 to 3 mm and as per Customer Requirement | |
| Width | 3 mm to 2000 mm and as per Customer Requirement | |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc | |

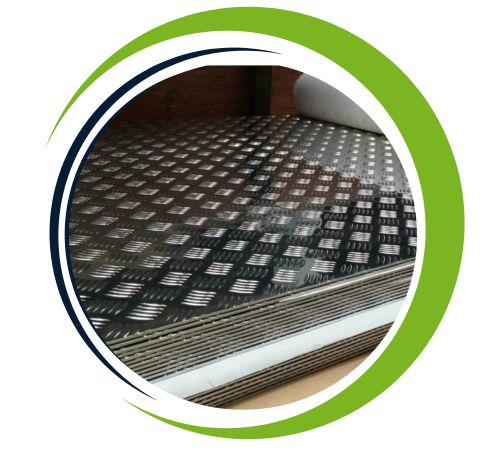

| Surface | the surface and finish of stainless steel 316 foil: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc | |
| Package | Shrink-wrapped ,Carton boxes,Wooden pallets,Wooden boxes ,Wooden crates Etc. required. |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
|
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
Fe |
|
|
316 |
0.08 max |
2.0 max |
1.0 max |
0.045 max |
0.03 max |
16.00-18.00 |
2.00 – 3.00 |
11.00 – 14.00 |
67.845 min |
| Properties | Metric | Imperial | |
| Tensile strength (transverse at room temperature) | 685 MPa | 99400 psi | |
| Tensile strength (longitudinal at room temperature) | 696 MPa | 101000 psi | |
| Yield strength (transverse at room temperature) | 292 MPa | 42400 psi | |
| Yield strength (longitudinal at room temperature) | 316 MPa | 43700 psi | |
| Compressive yield strength | 365 MPa | 52900 psi | |
| Elastic modulus | 197 GPa | 28573 ksi | |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 | |
| Elongation at break (longitudinal at room temperature) | 56% | 56% | |
| Elongation at break (transverse at room temperature) | 62.50% | 62.50% | |
| Hardness, Rockwell B (transverse at room temperature) | 85 | 85 | |
| Hardness, Rockwell B (longitudinal at room temperature) | 85 | 85 |
Stainless Steel 316 foils offer excellent corrosion resistance, especially against chlorides and other harsh chemicals, making them ideal for marine, chemical, and food processing industries. They are highly durable, with superior strength and resistance to pitting and crevice corrosion. These foils maintain integrity even in extreme temperatures, offering excellent thermal stability. Their excellent weldability and formability make them easy to process into various shapes. Stainless Steel 316 foils are non-magnetic and provide long-term reliability, making them suitable for various industrial applications.
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN | |
| SS 316 | 1.4401 | S31600 | SUS 316 | Z7CND17‐11‐02 | 316S31 / 316S33 | – | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
In settings where exceptional corrosion resistance and formability are crucial, stainless steel 316 foils are frequently utilised. They are perfect for lining tanks, heat exchangers, and processing equipment that is subjected to harsh chemicals and high humidity in the chemical and petrochemical industries. 316 foils are used in the marine industry for structural elements, components, and protective coverings in saltwater settings. They guarantee clean surfaces and resistance to cleaning agents in the food processing and pharmaceutical industries. 316 foils are also utilised in medical devices, thermal insulation, and architecture because of their exceptional performance under harsh conditions, ease of fabrication, and durability.
