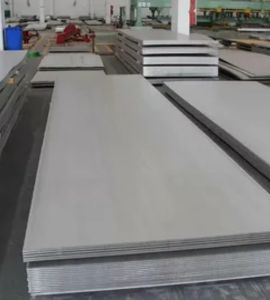

Kunj Sheets and Plates is a reliable manufacturer and supplier of **Stainless Steel 316 Sheets and Plates** based in Chennai, India. SS 316 is a type of austenitic stainless steel that contains molybdenum, which gives it exceptional resistance to corrosion, especially in environments with chlorides and acids. Renowned for its impressive strength, durability, and excellent weldability, SS 316 is perfect for tough applications across various industries. At Kunj, we provide 316 sheets and plates in a broad array of thicknesses, widths, and finishes to cater to different industrial needs. Our products meet global standards, ensuring outstanding performance in marine, chemical, pharmaceutical, and food processing sectors.
Stainless Steel 316 Sheets and Plates** typically consist of about 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, which greatly enhances their resistance to pitting and crevice corrosion. This material boasts a tensile strength of around 515 MPa and a yield strength of 205 MPa, along with excellent elongation and impact resistance. SS 316 retains its strength and ductility over a wide temperature range and offers good weldability and formability. This unique blend of chemical composition and mechanical properties makes SS 316 a top choice for applications in corrosive and high-moisture environments, particularly those involving saltwater or acidic materials.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

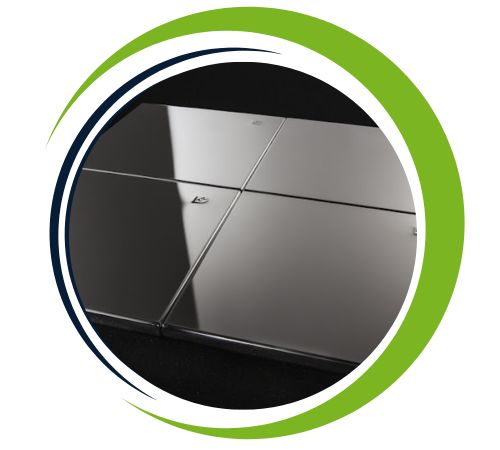

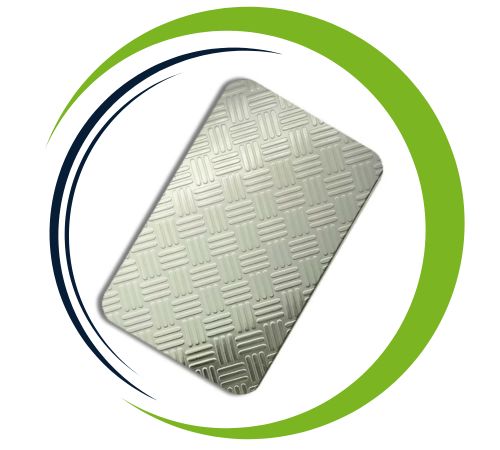

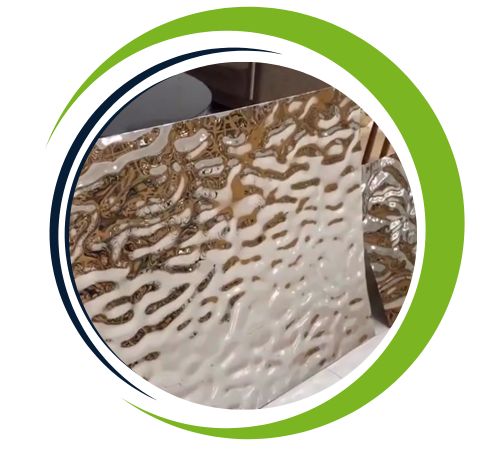

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

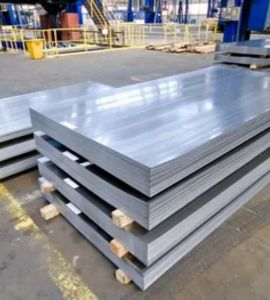

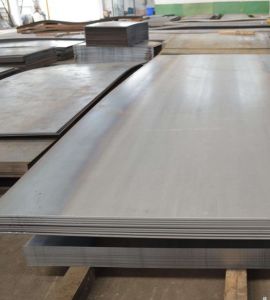

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

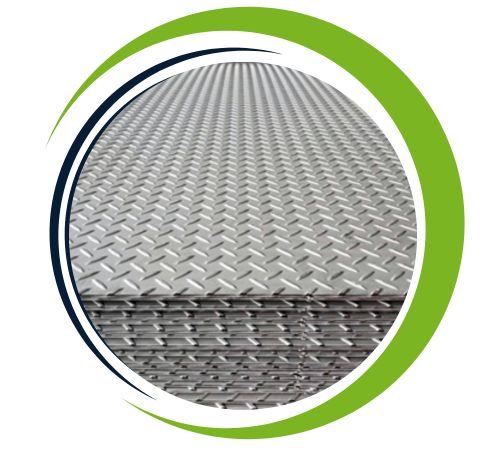

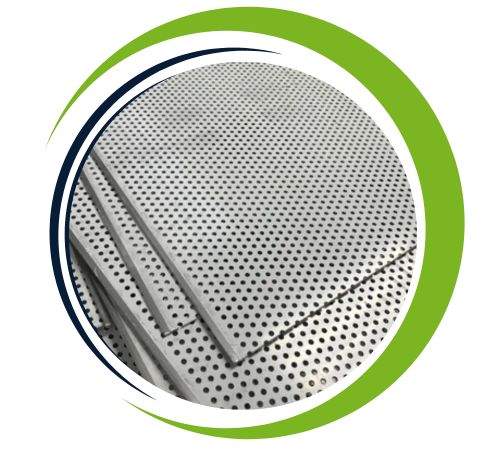

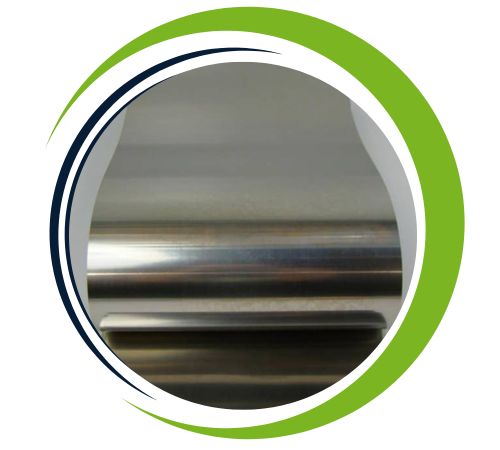

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
**Stainless Steel 316 Sheets and Plates** typically consist of about 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, which greatly enhances their resistance to pitting and crevice corrosion. This material boasts a tensile strength of around 515 MPa and a yield strength of 205 MPa, along with excellent elongation and impact resistance. SS 316 retains its strength and ductility over a wide temperature range and offers good weldability and formability. This unique blend of chemical composition and mechanical properties makes SS 316 a top choice for applications in corrosive and high-moisture settings, particularly those involving saltwater or acidic materials.
