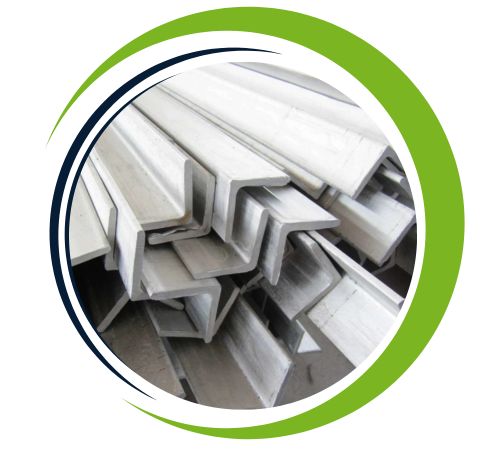

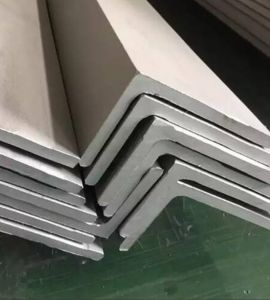

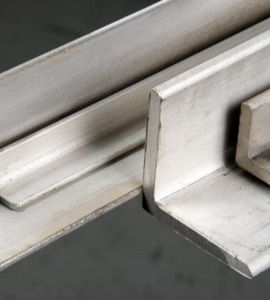

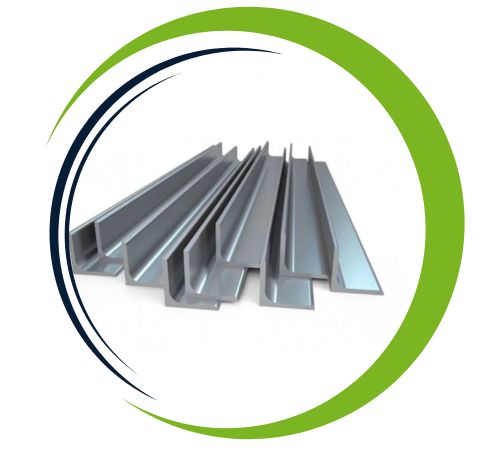

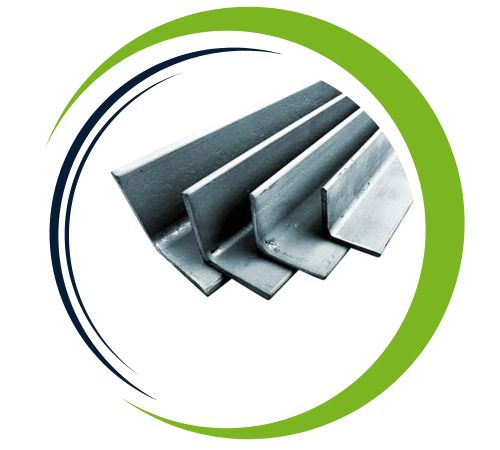

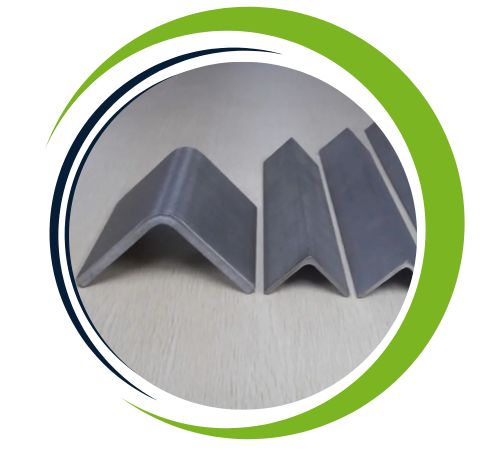

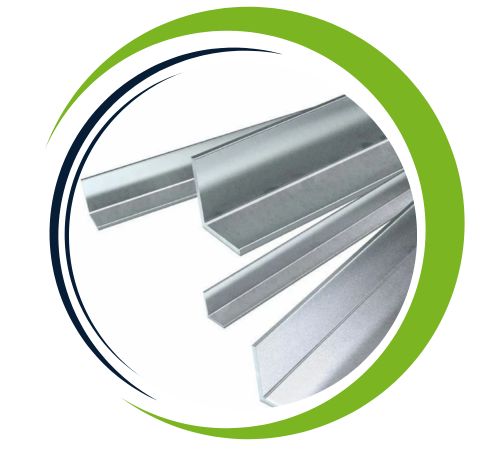

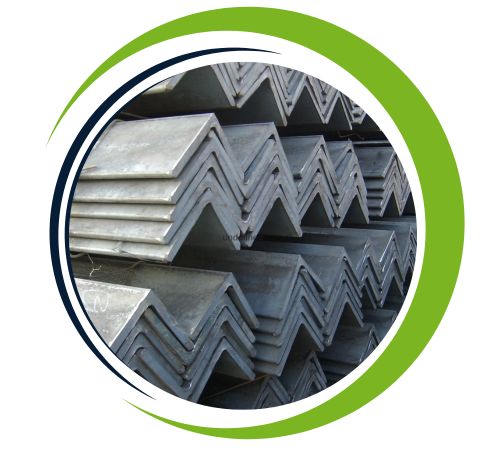

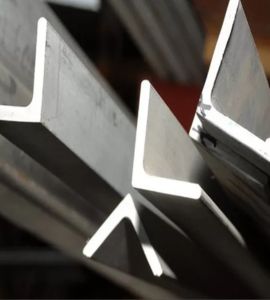

Top-grade stainless steel 316H angles are available from Kunj Sheets and Plates, a reputable manufacturer and supplier in Chennai, India, for applications needing exceptional strength and resistance to corrosion at high temperatures. Kunj, a company that specialises in precisely engineered stainless steel products, provides 316H angles that meet international quality standards and specifications. Known for their durability and resistance to oxidation and high-temperature environments, these angles are ideal for structural frameworks in demanding industrial applications. Kunj’s customer-centric approach, reliable inventory, and prompt delivery make it a trusted source for stainless steel solutions across sectors such as petrochemical, power generation, and offshore construction.
With 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and 0.04–0.10% carbon, stainless steel 316H is a high-carbon variant of 316. Its creep resistance and high-temperature strength are enhanced by this composition. It has an elongation of 40%, a yield strength of about 205 MPa, and a tensile strength of 515–690 MPa. Corrosion resistance is improved by the additional molybdenum, particularly in acidic and chloride environments. 316H is perfect for use in high-heat and pressure-bearing structural applications because of its strong mechanical profile and resistance to oxidation.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 316H Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | SS 316H |
|---|---|
| C | 0.015 max |
| Mn | 2 max |
| Si | 1.0 max |
| P | 0.045 max |
| S | 0.030 max |
| Cr | 16 – 18 |
| Mo | 2 – 3 |
| Ni | 11 – 14 |
| Fe | 67.845 min |
| Grade | SS 316H |
|---|---|
| Density | 8.0 g/cm3 |
| Melting Point | 1400 °C (2550 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35% |
| STANDARD | SS 316H |
| WERKSTOFF NR. | 1.4401 / 1.4436 |
| UNS | S31600 |
| JIS | SUS 316 |
| BS | 316S31 / 316S33 |
| GOST | – |
| AFNOR | Z7CND17-11-02 |
| EN | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 316H angle provides excellent corrosion resistance, especially in high-temperature environments, making it ideal for chemical, petrochemical and marine applications It has high strength due to its high carbon content, making it effective at at elevated pressures and temperatures. The material is resistant to pitting, crevice corrosion and oxidation, providing longevity and durability. Stainless steel 316H Angle also retains its mechanical properties at high temperatures, making it suitable for applications requiring high temperature resistance, such as electric motors and heat exchangers Easy to fabricate and weld.
| THICKNESS | ||||||
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
Boilers, heat exchangers, and pressure vessels are among the many high-temperature applications for stainless steel 316H angles. They are used in structural frameworks where strength and resistance to corrosion are crucial in the petrochemical and power generation industries. Better performance in oil and gas refineries, thermal processing units, and superheater supports is made possible by their high carbon content. They are also used in food processing and pharmaceutical equipment where temperature endurance and cleanliness are crucial. They are perfect for harsh industrial environments and marine construction because of their weldability, durability, and resistance to harsh chemicals.
