Based in Chennai, India, Kunj Sheets and Plates is a reputable producer and supplier of premium stainless steel 316L sheets and plates. The company is well-known for its commitment to accuracy, robustness, and client satisfaction. It supplies a range of industries with high-strength, corrosion-resistant stainless steel products. Kunj Sheets and Plates serves the pharmaceutical, food processing, marine, and petrochemical industries with its cutting-edge manufacturing facilities and stringent quality control procedures. Its 316L stainless steel sheets and plates come in a range of sizes and finishes, guaranteeing dependable operation, superior formability, and an extended lifespan for a variety of industrial uses.
With roughly 16–18% chromium, 10–14% nickel, and 2-3% molybdenum, stainless steel 316L is a low-carbon variant of 316. Weldability is improved and carbide precipitation is decreased due to the lower carbon content. It provides outstanding resistance to corrosion, especially in acidic and chloride-containing environments. Mechanically, 316L offers an elongation of about 40%, a yield strength of 170 MPa, and a minimum tensile strength of 485 MPa. Even at cryogenic temperatures, its austenitic structure guarantees good toughness. Because of these characteristics, it is perfect for uses requiring resistance to harsh chemicals as well as mechanical strength.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

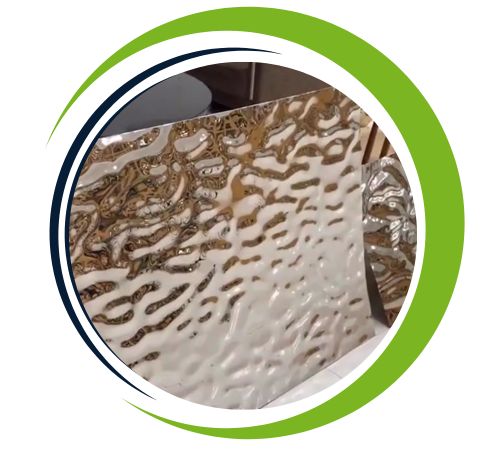

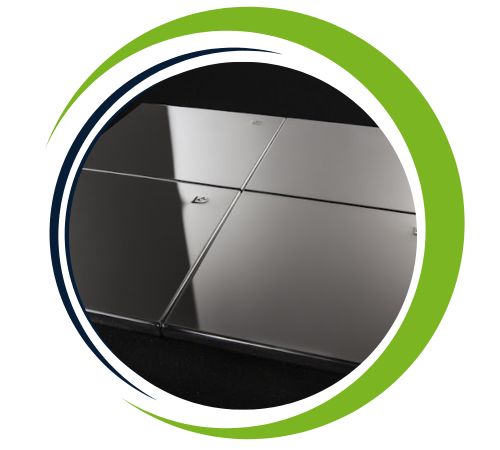

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

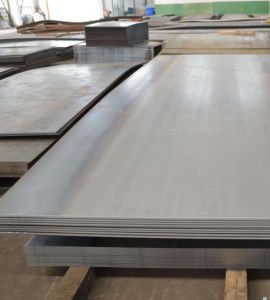

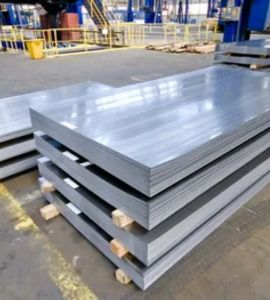

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

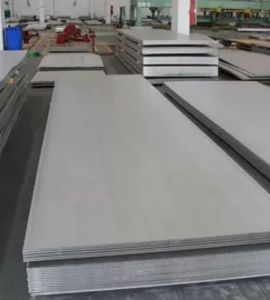

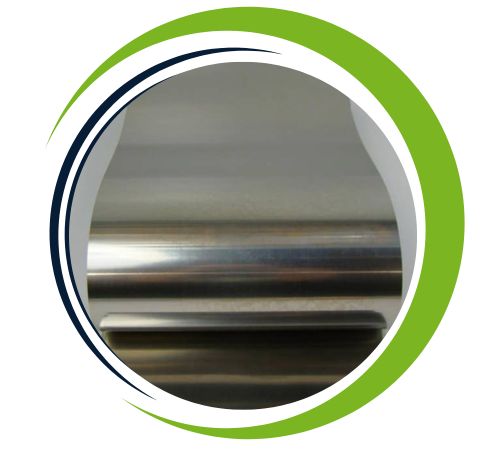

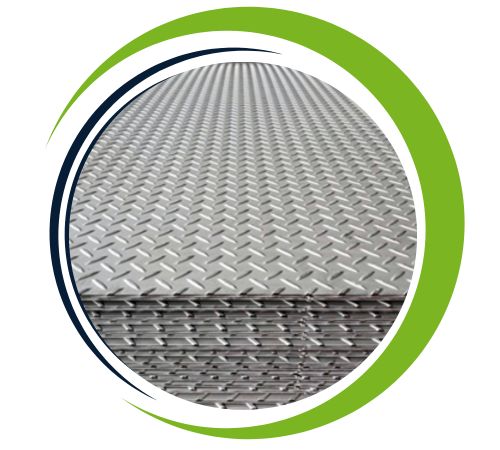

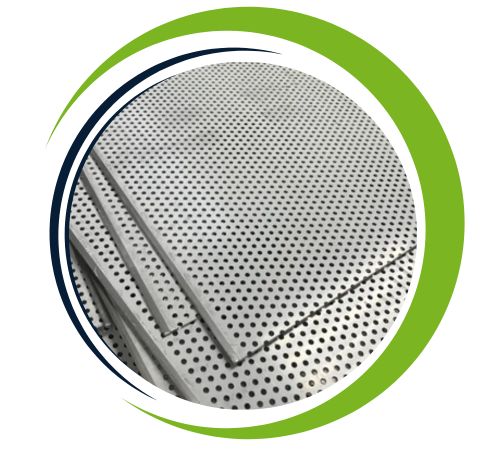

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316L | 0.035 max | 2 max | 1.00 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316L | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 316L sheets and plates offer many advantages, including excellent corrosion resistance, especially against chloride and harsh environments, making them ideal for marine and chemical consumption use This low-carbon material reduces carbide precipitation, enhances weldability and prevents intergranular corrosion. 316L is highly resistant to high temperature pitting, crevice corrosion and oxidation. It also has excellent mechanical properties, such as high strength, durability and flexibility. These characteristics make it suitable for industries such as pharmaceuticals, food processing and petrochemicals, where reliability and long-term performance are important.
Industries that demand excellent corrosion resistance and sanitary, clean conditions frequently use stainless steel 316L sheets and plates. Because of their non-reactive and easily cleaned surface, they are crucial for tanks, pipelines, and equipment in the food processing and pharmaceutical industries. The exceptional resistance of 316L to saltwater corrosion is advantageous for marine applications. Heat exchangers, medical equipment, architectural elements, and chemical processing facilities also use it. The alloy is appropriate for complex shape fabrications due to its formability and weldability. Its non-magnetic qualities are also advantageous in delicate electronic and aerospace devices where magnetic interference must be kept to a minimum.
