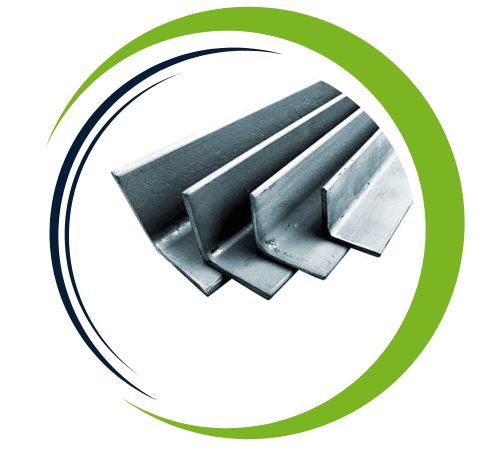

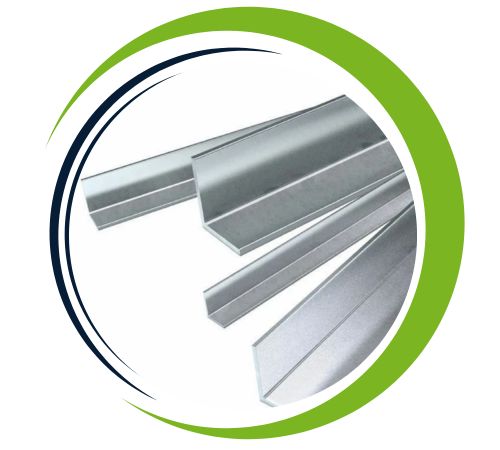

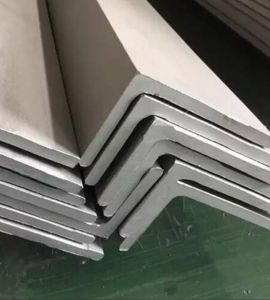

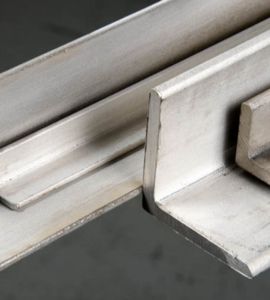

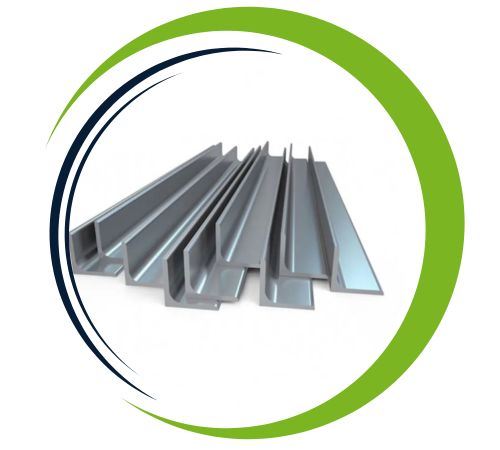

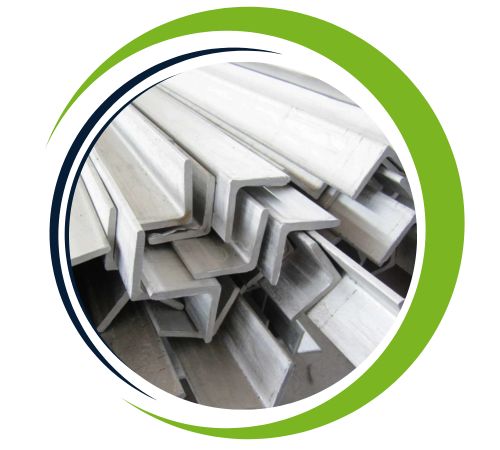

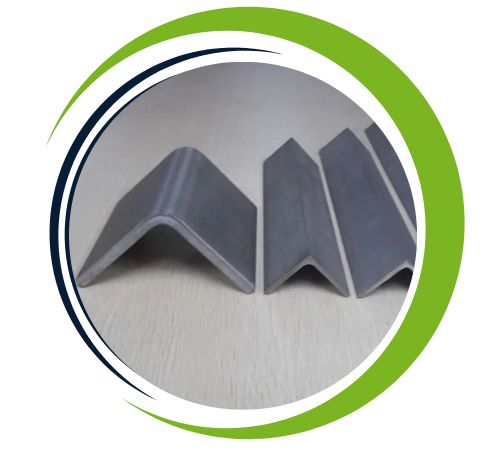

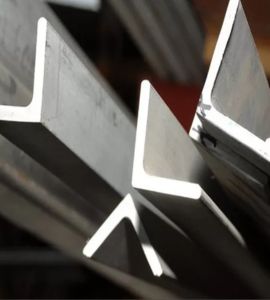

Kunj Sheets and Plates is your go-to manufacturer and supplier of **Stainless Steel 316Ti Angles** right here in Chennai, India. SS 316Ti is a titanium-stabilized variant of 316 stainless steel, which means it boasts better resistance to intergranular corrosion and improved strength at high temperatures. Our SS 316Ti angles are perfect for structural applications that demand strength, durability, and resistance to corrosion, even in tough or high-heat environments. At Kunj, we offer top-notch angles in a variety of sizes, thicknesses, and custom specifications, serving industries like chemical processing, marine, oil & gas, and construction. We pride ourselves on timely delivery, precise fabrication, and strict adherence to international quality standards.
**Stainless Steel 316Ti Angles** are made up of 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and a touch of titanium (usually five times the carbon content). The addition of titanium boosts resistance to carbide precipitation during welding and exposure to high temperatures. SS 316Ti has a tensile strength of about 515 MPa and a yield strength of around 205 MPa, along with excellent ductility and creep resistance. This alloy keeps its strength and corrosion resistance even in elevated temperature settings, making it a great choice for applications that involve prolonged heat exposure, particularly in chloride-rich or acidic environments.
| Standard | ASME, ASTM, EN, BS, GB, DIN, JIS, etc |
| Size | 3/4″ THRU 8″ |
| Thickness | 1/8″ thru 5/8″ |
| Type | Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled |
| Grades | 304/304L/304H/310S/316/316L/316H/316TI/317/317L/321/321H/904L |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| SS 316Ti | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316Ti | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
| THICKNESS | ||||||
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
You’ll find Stainless Steel 316Ti Angles being used across various industries that need both corrosion resistance and stability at high temperatures. They’re commonly found in chemical processing equipment, heat exchangers, pressure vessels, and boiler components. In the marine sector, they serve as structural supports and framing that are exposed to saltwater. The construction industry utilizes SS 316Ti angles for structural frameworks in coastal or industrial settings. Plus, they’re ideal for oil and gas pipelines, pharmaceutical processing equipment, and thermal process plants. Their resistance to sensitization makes them especially valuable in welded assemblies that operate under demanding conditions.
