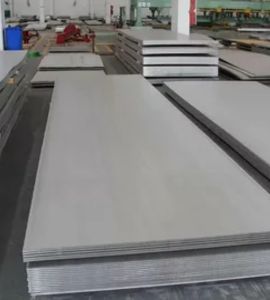

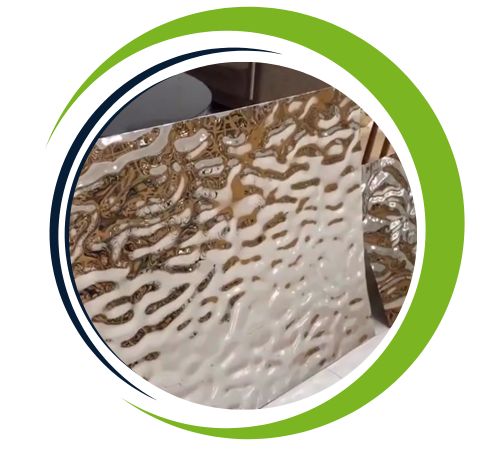

Kunj Sheets and Plates is a reliable Stainless Steel 316Ti sheets and plates manufacturer and supplier based in Delhi, India, providing high-performance materials for those industries that require high corrosion resistance and thermal stability. Our SS 316Ti plates and sheets are stabilized with titanium, which makes them suitable for high-temperature and corrosive media applications. Produced with international standards in mind, these items feature great weldability, strength, and resistance to intergranular corrosion. We supply SS 316Ti plates and sheets of different sizes, thicknesses, and finishes to suit the particular needs of clients across industries.
Stainless Steel 316Ti is titanium-stabilized 316 that contains 16–18% Chromium, 10–14% Nickel, 2–3% Molybdenum, and a small amount of Titanium (~0.5%). The addition of titanium provides resistance to sensitization under weld or extended high-temperature conditions. SS 316Ti possesses a tensile strength of some 515–690 MPa, good pitting and crevice corrosion resistance, and maintains mechanical strength at high temperatures. It is non-magnetic in the annealed state and can be used for both forming and fabrication in hostile environments.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

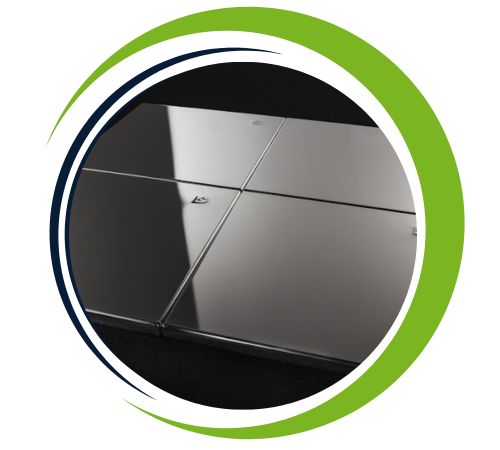

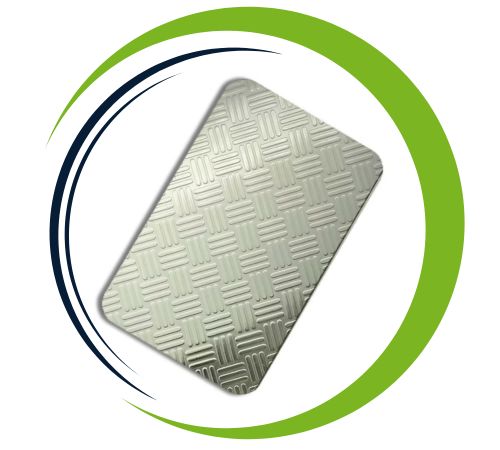

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

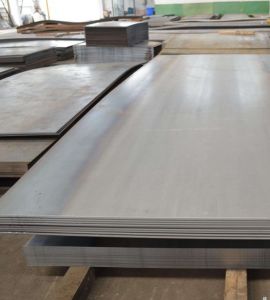

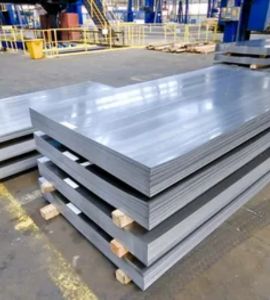

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

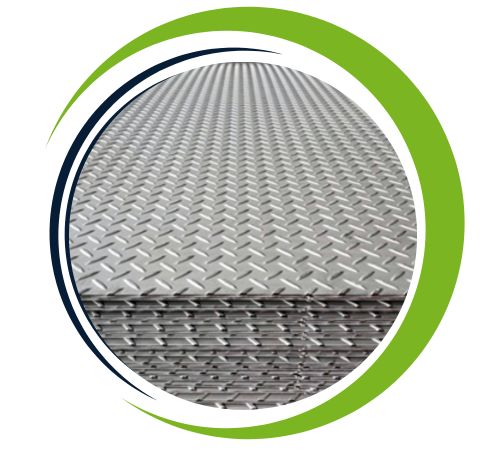

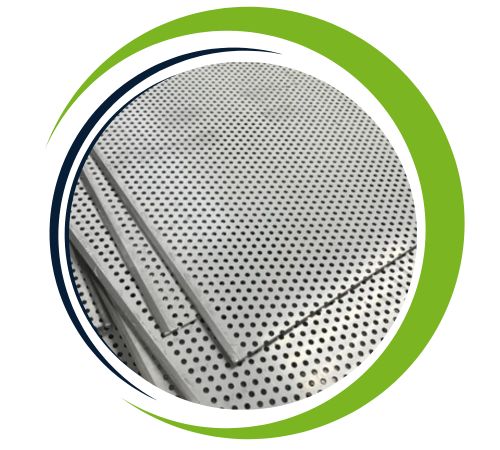

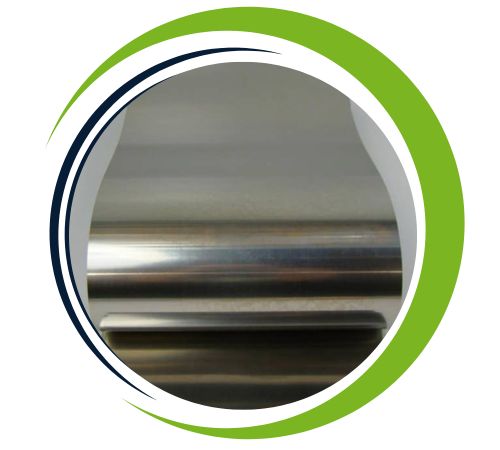

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316Ti | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 316Ti sheets and plates offer exceptional advantages, including resistance to pitting, crack corrosion and excellent intergranular corrosion even at elevated temperatures The addition of titanium ensures stability against carbide precipitation, making it more difficult in rough environments. These sheets are strong, have excellent high-temperature strength and mechanical performance, making them ideal for complex applications. They resist oxidation and scaling, providing durability in marine, chemical and industrial applications. In addition, they are easy to manufacture, weld and maintain, providing cost effective and reliable for structural and process equipment applications.
Stainless Steel 316Ti plate and sheets find extensive application in industries where high temperature and corrosive chemical resistance is of utmost importance. Typical applications include chemical processing equipment, furnace parts, heat exchangers, food processing units, pharmaceutical production systems, marine conditions, and so on. They are applied in pressure vessels, flue gas cleaning systems, and piping systems with exposure to high temperatures and corrosive chemicals. 316Ti plates and sheets provide superior durability, weldability, and minimal maintenance and are suited to long-term, high-performance service in harsh service conditions.
