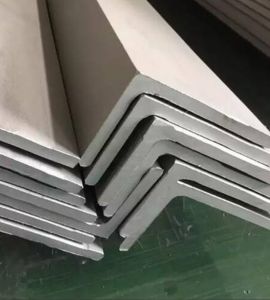

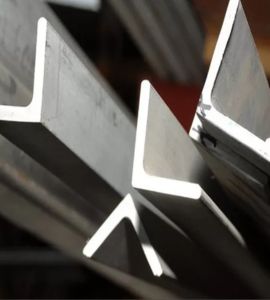

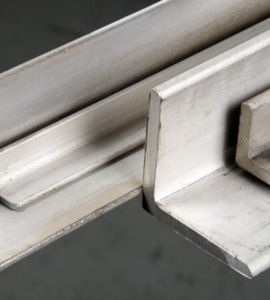

High-performance stainless steel 317 angles are available from Chennai, India-based Kunj Sheets and Plates, a top manufacturer and supplier for applications requiring exceptional strength and resistance to corrosion. Kunj is renowned for their dedication to accuracy and quality, offering SS 317 angles that are customised to satisfy industrial needs and adhere to international standards. Because of their high molybdenum content, these angles are especially well suited for use in harsh chemical environments. Kunj Sheets and Plates has made a name for itself as a reliable partner to customers in the petrochemical, pharmaceutical, and marine industries thanks to its reliable inventory, fast delivery, and adjustable dimensions.
Austenitic stainless steel 317 has a low carbon content, 18–20% chromium, 11–15% nickel, and 3–4% molybdenum. Superior resistance to pitting, crevice corrosion, and general chemical attack is provided by this improved composition. It has an elongation of roughly 35%, a yield strength of 205 MPa, and a tensile strength of 515 MPa. Additionally, the alloy offers outstanding formability and good weldability. It is a robust choice for demanding service conditions because of its higher molybdenum content, which enhances performance in environments that are acidic and chloride-rich.
| Specifications | : | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 317 Angle | : | 5mm to 9mm |
| SS 317 Channel | : | 40mm*20mm~300mm*300mm |
| SS 317 Beam | : | 3″ thru 12.31″ |
| SS 317 Chain | : | 1/8 inch – 1/2 inch Diameter |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | : | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317 | 1.4449 | S31700 | SUS 317 | – |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 317 angle provides excellent corrosion resistance, especially in chloride and acidic environments, making it ideal for extreme conditions and extremely durable, retaining its strength and its integrity at elevated temperatures. The alloy is resistant to pitting and crevice corrosion, increasing its longevity in harsh applications. Stainless steel 317 is easily manufactured and welded, providing versatility for a variety of architectural and industrial applications. Its excellent performance in pharmaceutical, food processing and marine environments makes it reliable for applications requiring high resistance loss.
Because of its exceptional resistance to corrosive environments, particularly those that contain sulphur compounds and chlorides, stainless steel 317 Angles are used extensively in the pulp and paper, chemical processing, and pharmaceutical industries. These angles are perfect for architectural applications where strength and resistance to corrosion are crucial, such as structural framing and equipment supports. They are also used in pollution control devices, food processing facilities, and marine environments. 317 stainless steel angles offer dependable performance in both indoor and outdoor structural applications subjected to harsh chemicals or saline conditions because of their high mechanical qualities and formability.
