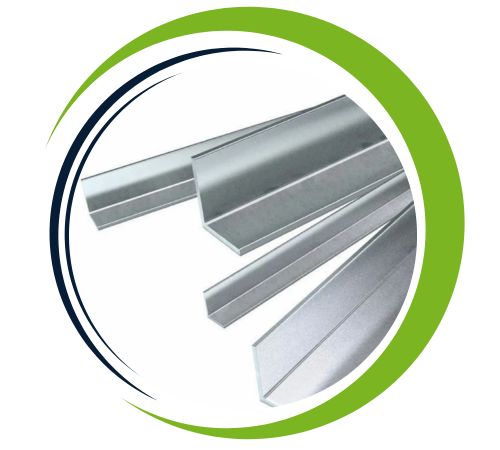

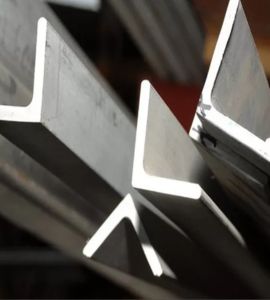

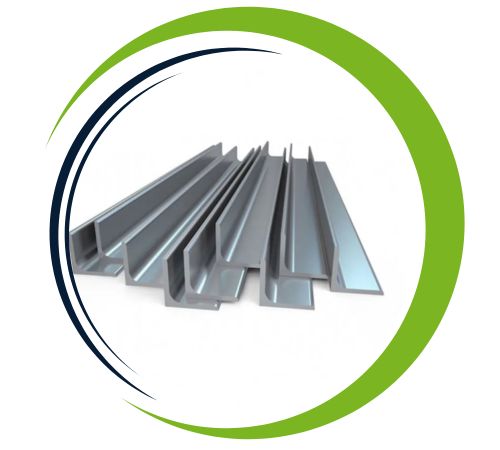

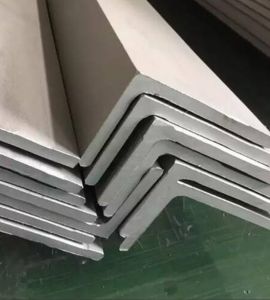

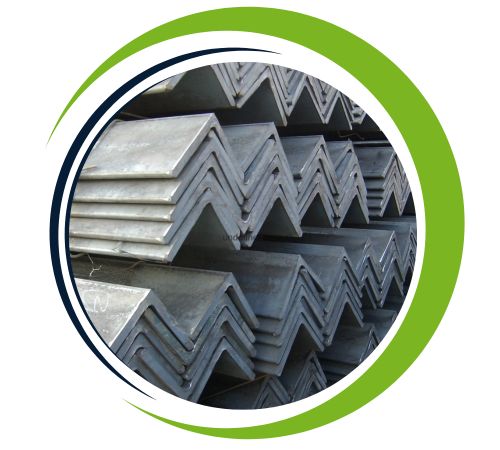

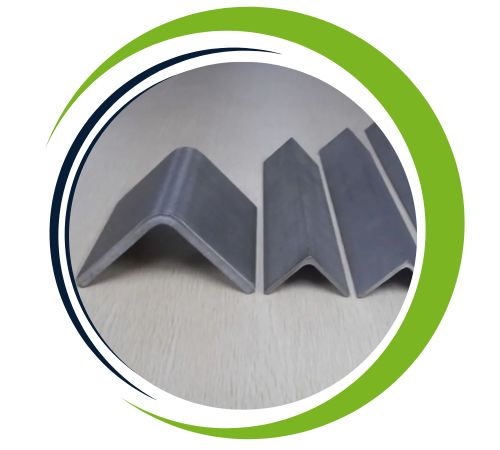

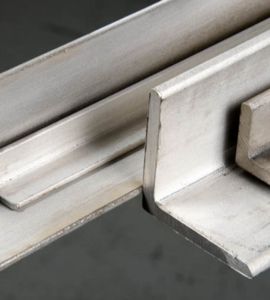

Located in Chennai, India, Kunj Sheets and Plates is a reputable producer and supplier of premium 317L stainless steel angles. The company is well-known for providing high-performance, corrosion-resistant stainless steel products to a wide range of industries, including pulp and paper, chemical processing, marine, and pharmaceuticals. Kunj Sheets and Plates offers 317L Angles with exceptional resistance to chemical attacks and high temperatures thanks to their sophisticated manufacturing capabilities, stringent quality control, and customer-centric approach. Because their products come in a range of sizes and finishes, they can be tailored to meet the unique structural and performance requirements of a variety of industrial applications.
Stainless Steel 317L is an austenitic, low-carbon, high-molybdenum steel that contains roughly 18–20% chromium, 11–15% nickel, and 3–4% molybdenum. After welding, the low carbon content improves resistance to intergranular corrosion. It offers outstanding resistance to environments that are acidic and chloride-rich. The alloy’s elongation is approximately 35–40%, its yield strength is 205 MPa, and its tensile strength is approximately 515 MPa. It is perfect for harsh chemical environments because of its austenitic structure, which guarantees good ductility and weldability, and its high molybdenum content, which enhances resistance to pitting and crevice corrosion.
Specifications : ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
The stainless steel 317L angle provides excellent corrosion resistance, especially in aggressive environments with acids and chlorides, due to its high malybdenum content. It has excellent strength and stability, making it ideal for construction applications. The low carbon content reduces carbide precipitation during welding, resulting in stronger and longer lasting joints. The alloy provides excellent thermal and oxidation resistance, allowing it to be used at higher temperatures. Additionally, the 317L Angle is versatile, easy to manufacture, and requires little maintenance, making it cost-effective for the chemical, marine and industrial industries.
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Stainless steel 317L angles are utilised in demanding applications where structural integrity and high corrosion resistance are essential. They are perfect for supporting structures in tanks, piping systems, and equipment that is subjected to harsh chemicals and acids in the petrochemical and chemical industries. Because of their ability to withstand corrosion from saltwater, they are used in shipbuilding and offshore platforms in maritime environments. Because 317L is resistant to bleaching agents, it is used in the pulp and paper industries. These angles are also utilised in pharmaceutical equipment, food processing facilities, and power plants where strength, corrosion resistance, and hygienic conditions are critical.
