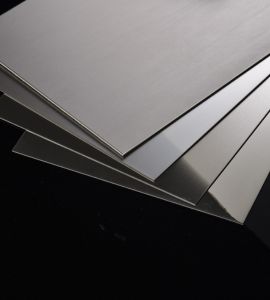

Kunj Sheets and Plates is a well-known producer and supplier of Stainless Steel 317L plates and sheets in Delhi, India, providing high-quality materials for uses where top-class corrosion resistance and strength are required. Our SS 317L sheets and plates are low-carbon, high-molybdenum austenitic stainless steel material made to perform better in acidic and chloride-containing environments. With accurate production and following global standards, we deliver these plates and sheets in different thicknesses, widths, and finishes that deliver secure performance in chemical, marine, and industrial processing environments.
Stainless Steel 317L is an austenitic, chromium-nickel-molybdenum alloy with a composition of about 18–20% Chromium, 11–15% Nickel, and 3–4% Molybdenum with less carbon to enhance weldability and immunity to intergranular corrosion. It has good resistance against pitting, crevice corrosion, and chemical attacks, especially in sulfurous, acetic, and phosphoric acid atmospheres. SS 317L has a tensile strength of about 515 MPa, good ductility, and very good mechanical properties even at higher temperatures.

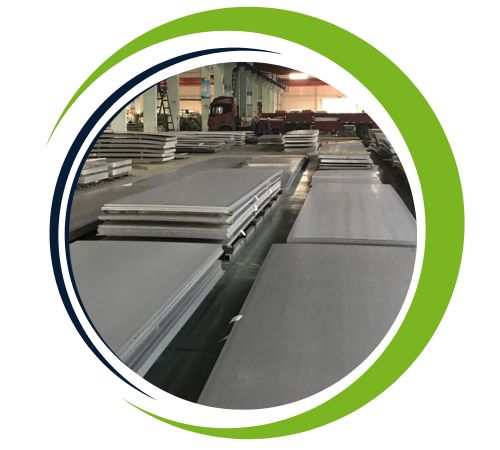

| 317L Sheets & Plates Specifications | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
|---|---|
| 317L Sheets & Plates Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |

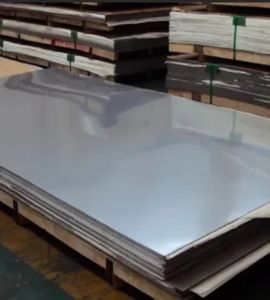

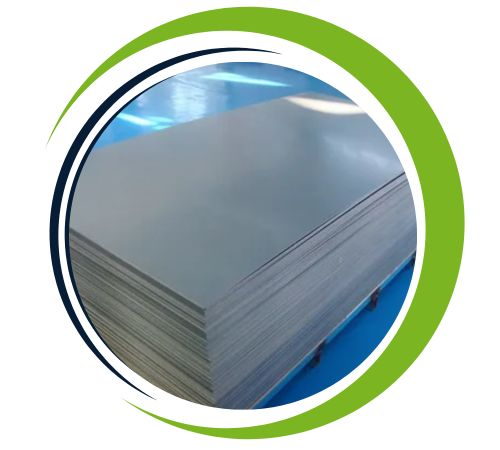

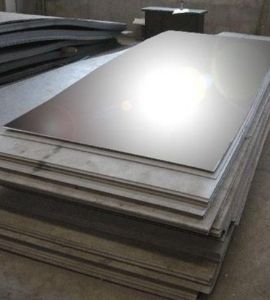

| SS 317L Sheets & Plates Size Range | Cold rolled ASME SA240 Grade 317L Stainless Steel Sheet 0.5-6.4 mm Hot rolled ASME SA240 Grade 317L Stainless Steel Sheet 3.0–10.0 mm |
| 317L SS Sheets & Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| SS 317L Sheets & Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| SS 317L Sheets & Plates Thickness | 0.3 mm to 120 mm |
| International Standard of Stainless Steel 317L Sheets & Plates | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) of Stainless Steel 317L Sheets & Plates | EN 10258/ DIN 59381) EN 10151 ASME SA240 317L SS Strips EN 10088 SA -240-304 / 317L Strips |
| Finish of SS 317L Sheets & Plates | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |

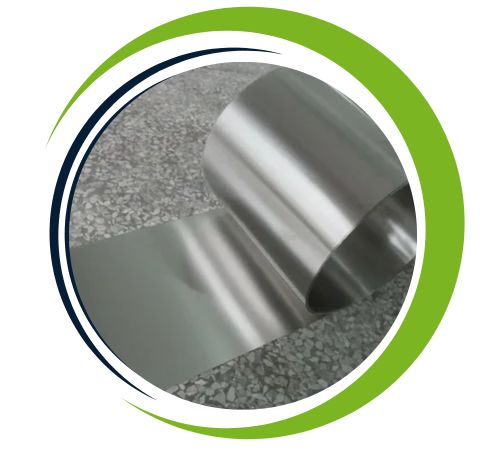

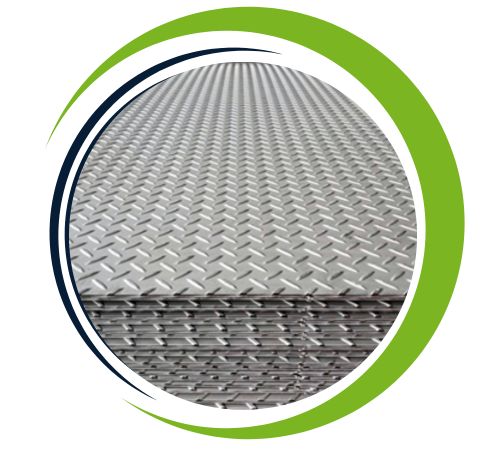

| Form | Sheet, Plate, Strip, Flats, Clad Plate, Coils, Foils, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, Rolling Plate, Rolls, Blank (Circle), soft annealed, descaled, tread plate, sheared, annealed, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
| Surface Finish | Definition | Application |
|---|---|---|

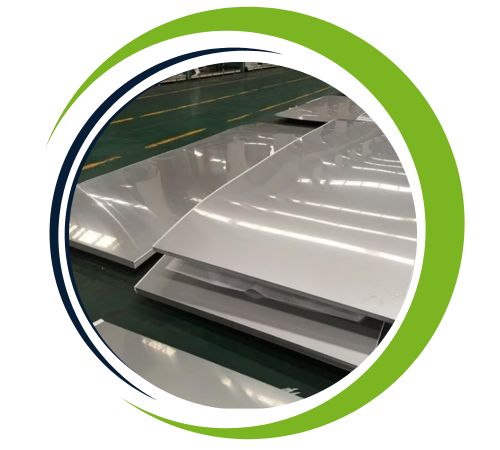

| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
| 2000MM X 1000MM X 3MM | 2000MM X 1000MM X 6MM |
| 2500MM X 1250MM X 4MM | 2500MM X 1250MM X 8MM |
| 3000MM X 1500MM X 3MM | 3000MM X 1500MM X 6MM |
| 3000MM X 1500MM X 4MM | 3000MM X 1500MM X 8MM |
| 2000MM X 1000MM X 5MM | 2500MM X 1250MM X 10MM |
| 2500MM X 1250MM X 3MM | 2500MM X 1250MM X 6MM |
| 4000MM X 2000MM X 3MM | 4000MM X 2000MM X 6MM |
| 2500MM X 1250MM X 5MM | 3000MM X 1500MM X 10MM |
| 2000MM X 1000MM X 4MM | 2000MM X 1000MM X 8MM |
| 4000MM X 2000MM X 4MM | 2000MM X 2000MM X 10MM |
| 3000MM X 1500MM X 5MM |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 317L sheets and plates offer many advantages, including exceptional corrosion resistance, especially in high chloride environments Their low carbon content increases weldability, prevents carbide precipitation and provides good welding strength after the. They exhibit excellent resistance to pitting, crevice corrosion, and stress corrosion cracking, making them ideal for chemically complex marine environments 317L also maintains excellent tensile strength, rigidity and formability at temperature in a higher order. These properties make them ideal for use in industries such as the chemical industry, pharmaceutical manufacturing, marine and food processing, where durability and reliability are essential.
Stainless Steel 317L sheets and plates have extensive applications in various industries including chemical processing, pharmaceutical, petrochemical, pulp and paper, textile dyeing, and marine engineering. These sheets and plates are particularly suitable for equipment like heat exchangers, evaporators, tanks, scrubbers, and corrosive media exposed process piping. The superior resistance of SS 317L to acidic and chloride environments makes it capable of operating under severe conditions where common stainless steels can’t survive. Its enhanced weldability, formability, and sustained durability qualify it as a first choice for mission-critical industrial applications.
