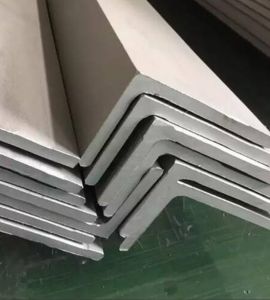

Reputable manufacturer and supplier of Stainless Steel 321H Angles, Kunj Sheets and Plates is situated in Chennai, India, and is well-known for producing high-quality, heat-resistant stainless steel goods. The company serves a variety of industries, including petrochemical, power generation, aerospace, and construction, with a strong emphasis on quality, durability, and customer satisfaction. Kunj’s stainless steel 321H angles are made to withstand oxidation and corrosion well and function dependably in hot conditions. Superior products suited to demanding industrial and structural applications are guaranteed by Kunj Sheets and Plates’ state-of-the-art manufacturing facilities and stringent quality control.
In order to prevent carbide formation, stainless steel 321H, a high-carbon variant of 321 stainless steel, contains roughly 17–19% chromium, 9–12% nickel, and titanium. Creep resistance and high-temperature strength are improved by the higher carbon content. Its elongation is roughly 40%, its yield strength is 205 MPa, and its tensile strength is roughly 515 MPa. Up to 900°C, stainless steel 321H provides exceptional resistance to oxidation and intergranular corrosion. For structural elements subjected to extended heat stress and corrosive environments, its mechanical stability and heat resistance make it perfect.
Specifications : ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| % | Cr | Ni | C | Si | Mn | P | S | N | Ti | Fe |
|---|---|---|---|---|---|---|---|---|---|---|
| 321 | min:17.0 max:19.0 | min: 9.0 max:12.0 | max:0.08 | max:0.75 | max:2.0 | max:0.045 | max:0.03 | max:0.10 | min:5*(C+N) max:0.70 | Balance |
| 321H | min:17.0 max:19.0 | min: 9.0 max:12.0 | min:0.04 max:0.10 | min:18.0 max:20.0 | max:2.0 | max:0.045 | max:0.03 | max:0.10 | min:5*(C+N) max:0.70 | Balance |
| Grade | Tensile Strength ksi (min.) | Yield Strength 0.2% Offset ksi (min.) | Elongation – % in 50 mm (min.) | Hardness (Brinell) MAX |
|---|---|---|---|---|
| 321/321H | 75 | 30 | 40 | 217 |
| Denstiy lbm/in3 | Coefficient of Thermal Expansion (min/in)-°F | Thermal Conductivity BTU/hr-ft-°F | Specific Heat BTU/lbm -°F | Modules of Elasticity (annealed)2-psi | |
|---|---|---|---|---|---|
| at 68 °F | at 68 – 212°F | at 68 – 1832°F | at 200°F | at 32 – 212°F | in tension (E) |
| 0.286 | 9.2 | 20.5 | 9.3 | 0.12 | 28 x 106 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Kunj Sheets and Plates based in Chennai, India, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 321H angle offers excellent advantages due to its high carbon content, especially increased resistance to creep and stress rupture at high temperatures Its titanium stabilizer prevents carbide precipitation, improving corrosion resistance at high temperatures . . . . This surface provides outstanding strength, durability and oxidation resistance up to 870°C, making it ideal for heat exchangers, chemical processing and furnace components And power generation more, its ease of manufacture and ability to withstand thermal cycling without losing strength make it the preferred choice for demanding industrial applications. It also retains technology.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
High-temperature and high-stress structural applications are perfect for stainless steel 321H angles. In the oil, gas, and petrochemical sectors, they are extensively utilised in pressure vessels, boilers, furnace components, and heat exchangers. They are used in reheater and superheater tubing supports in the power generation industry. They are used in structural frameworks exposed to high temperatures or corrosive environments in the construction industry. The corrosion resistance and thermal stability of 321H are also advantageous to the marine and aerospace industries. Because of their titanium-stabilized structure, which inhibits carbide precipitation during welding and thermal exposure, these angles are ideal for welded assemblies.
