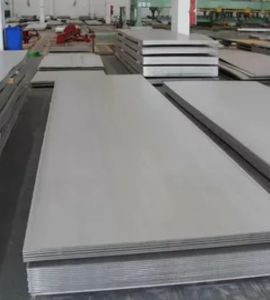

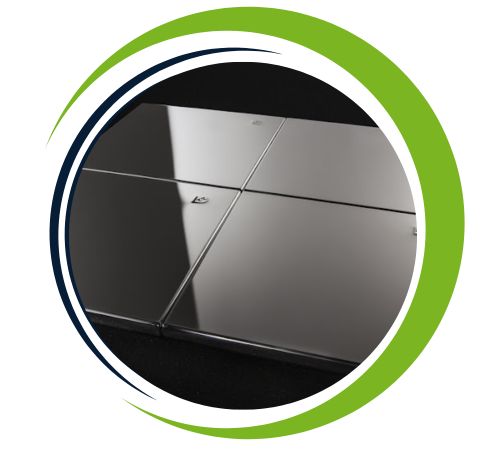

High-performance stainless steel 321H sheets and plates are manufactured and supplied by the reputable company Kunj Sheets and Plates, which is based in Chennai, India. Kunj is well-known for their expertly designed stainless steel solutions, which offer superior resistance to oxidation and high temperatures. A high-carbon version of stainless steel, 321H, is made to be stronger and more resistant to creep at higher temperatures. The petrochemical, power generation, aerospace, and furnace manufacturing industries all make extensive use of Kunj’s products. Kunj Sheets and Plates provides long-lasting, corrosion-resistant, and customised products for vital industrial applications thanks to its sophisticated manufacturing infrastructure and stringent quality control procedures.
Stainless Steel 321H is an austenitic stainless steel alloy with a higher carbon content (0.04–0.10%) for enhanced high-temperature strength, and roughly 17–19% chromium, 9–12% nickel, and titanium stabilisation. It has an elongation of 40%, a yield strength of 205 MPa, and a tensile strength of roughly 515 MPa. Particularly after welding, the titanium addition improves resistance to intergranular corrosion. 321H is perfect for high-heat applications because it retains its mechanical strength and resistance to oxidation at temperatures as high as 870°C. It stands out in demanding thermal environments due to its exceptional structural stability and creep resistance.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

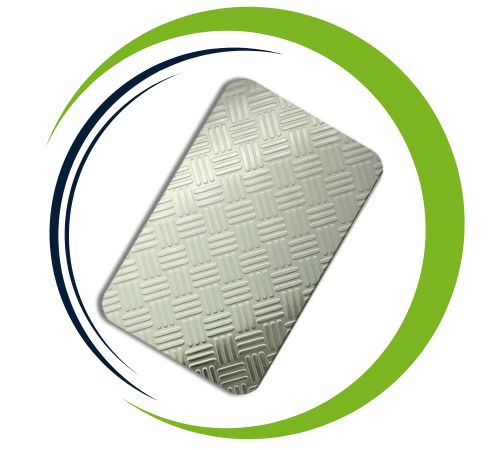

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

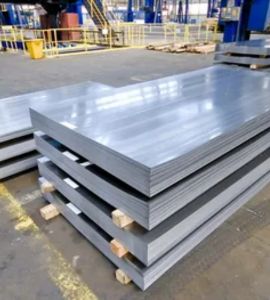

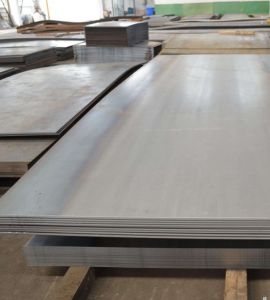

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

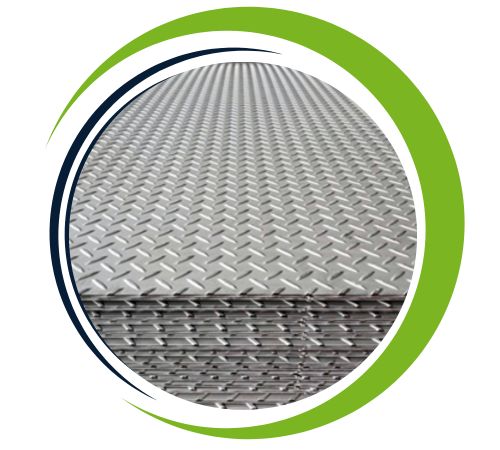

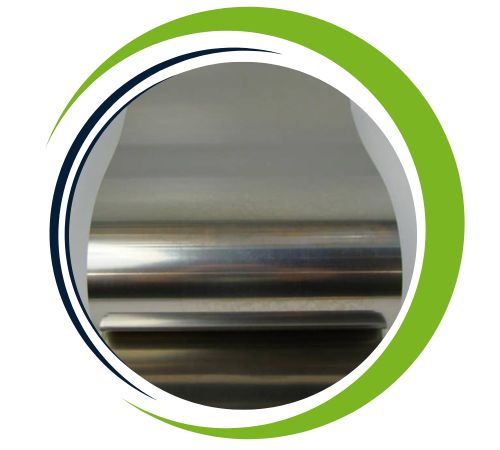

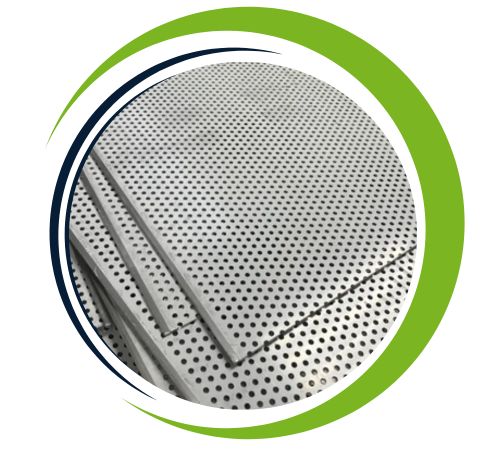

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 321H | 0.04 – 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 4(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 321H | 1.4878 | S32109 | SUS 321H | X12CrNiTi18-9 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 321H sheets and plates provide excellent corrosion resistance, especially in high-temperature environments. They are extremely durable, resistant to oxidation, and are curing up to 870°C (1600°F). The intergranular corrosion resistance makes them ideal for welding-related applications. The stability of the composite is enhanced by the addition of titanium, which helps prevent carbide precipitation. Stainless steel 321 is also known for its durability, durability and ability to maintain structural integrity under extreme conditions. These properties make it suitable for industries such as aerospace, chemical and power generation.
In high-temperature applications where durability and resistance to oxidation are essential, stainless steel 321H sheets and plates are frequently utilised. They are utilised for heat exchangers, piping systems, reactor vessels, and furnace components in the petrochemical and oil and gas industries. 321H is used in the power generation sector for exhaust ducts, superheaters, and boiler casings. Because of its ability to withstand mechanical stress and scaling, aerospace manufacturers use it in engine parts and thermal shields. Additionally, it is used in food processing facilities and chemical processing equipment. 321H is perfect for components subjected to prolonged high temperatures because of its weldability and stability under heat.
